Touch sensor board
NOTE: The touch sensor board is located on the right side of the computer (viewed from behind)
above the system board. It is secured with one Torx screw and has three connectors.
Touch sensor boards are spared with the touch panel spare part kit. Be sure to replace the touch sensor
board when replacing a touch display panel.

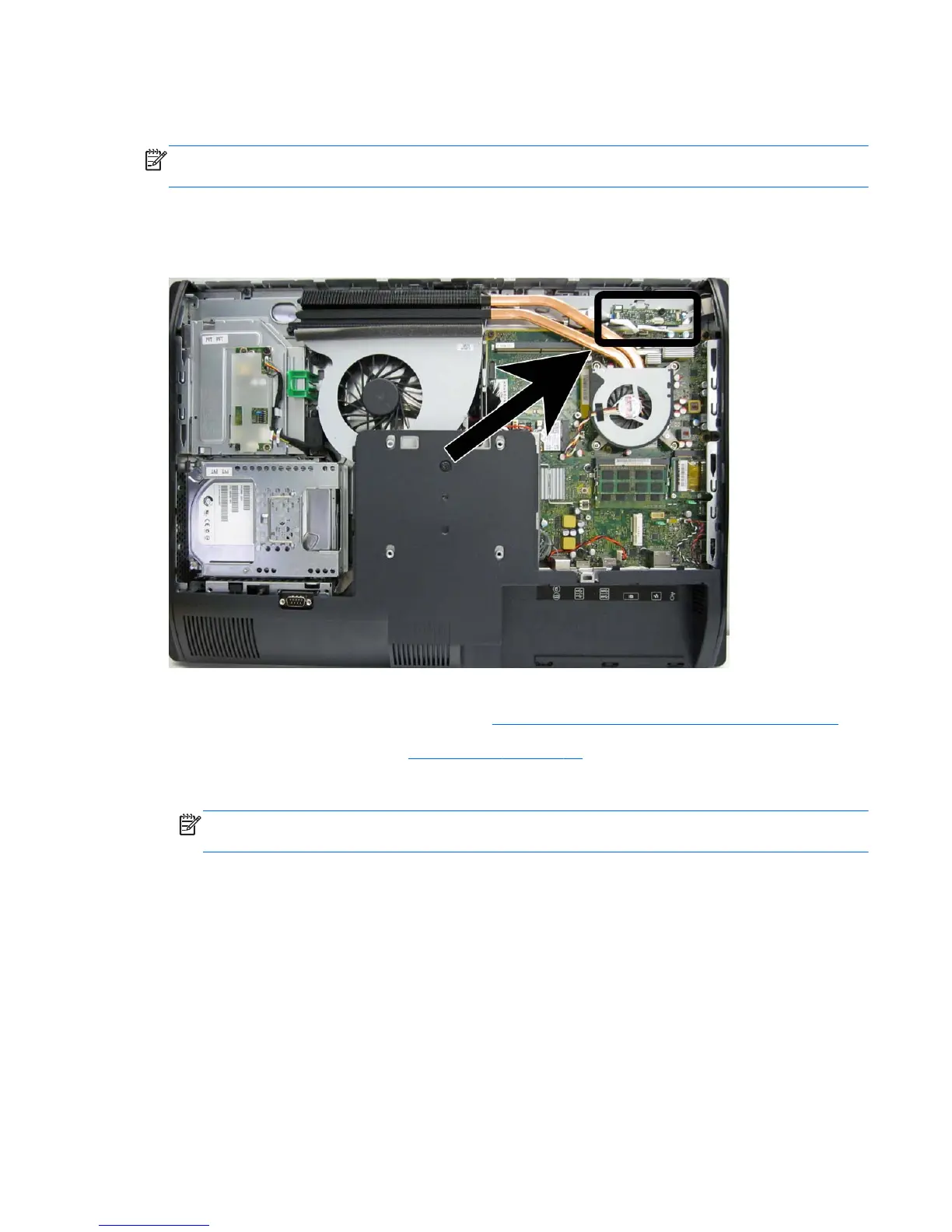

Figure 7-42 Touch sensor board location
To remove the touch sensor board:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 40).
2. Remove the access panel (see
Access panel on page 45).
3. Disconnect the cables from the three connectors on the board (1).
NOTE: Be careful not to damage the cables when disconnecting them from the board. Do not
pull on the wires or cables.
Touch sensor board
73
