HP Compaq Elite 8300 Touch All-in-One Business User Manual

4. Remove the two black Torx screws (2) that secure the board to the computer.
Note the converter board jumper settings stamped on the chassis (3). Be sure to correctly position
the jumpers on the converter board for the installed display panel.

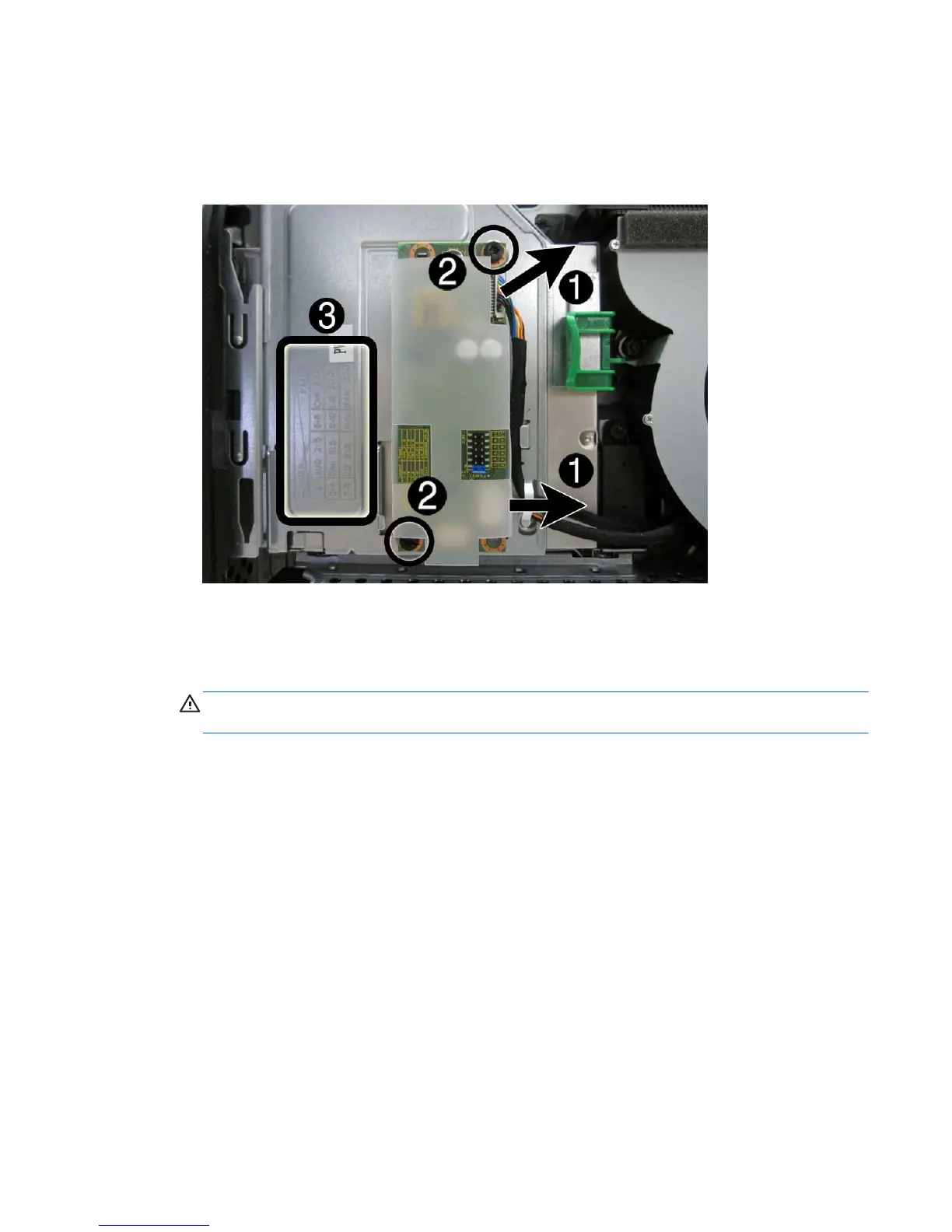

Figure 7-41 Removing the converter board
5. Lift the converter board from the computer.
Be sure to correctly position the jumpers on the converter board for the installed display panel, as
follows:
CAUTION: Incorrect jumper placement can result in damage to the converter board and display
panel.
●
21.5-inch panel
◦
AUO panel: pins (1)(2)
◦
CMI panel: pins (3)(4)
◦
LG panel: pins (7)(8)
●
23.0-inch panel
◦
CMI panel: pins (5)(6)
◦
LG panel: pins (9)(10)
◦
Samsung panel: pins (11)(12)
Converter board
71
