HP Compaq Pro 6300 Series Small Form Factor User Manual

Power Supply
Description Spare part number
Power supply, 320W, 90% efficient 613764-001
Power supply, 320W 613765-001
1. Prepare the computer for disassembly (Preparation for Disassembly on page 54).
2. Remove the access panel (
Computer Access Panel on page 55).
3. Disconnect the power cables from the white system board connector labeled PWR and the white
system board connector labeled PWRCMD.
4. Remove the power cables from the clip on the base pan.
5. Remove the four silver Torx T15 screws that connect the power supply to the chassis.

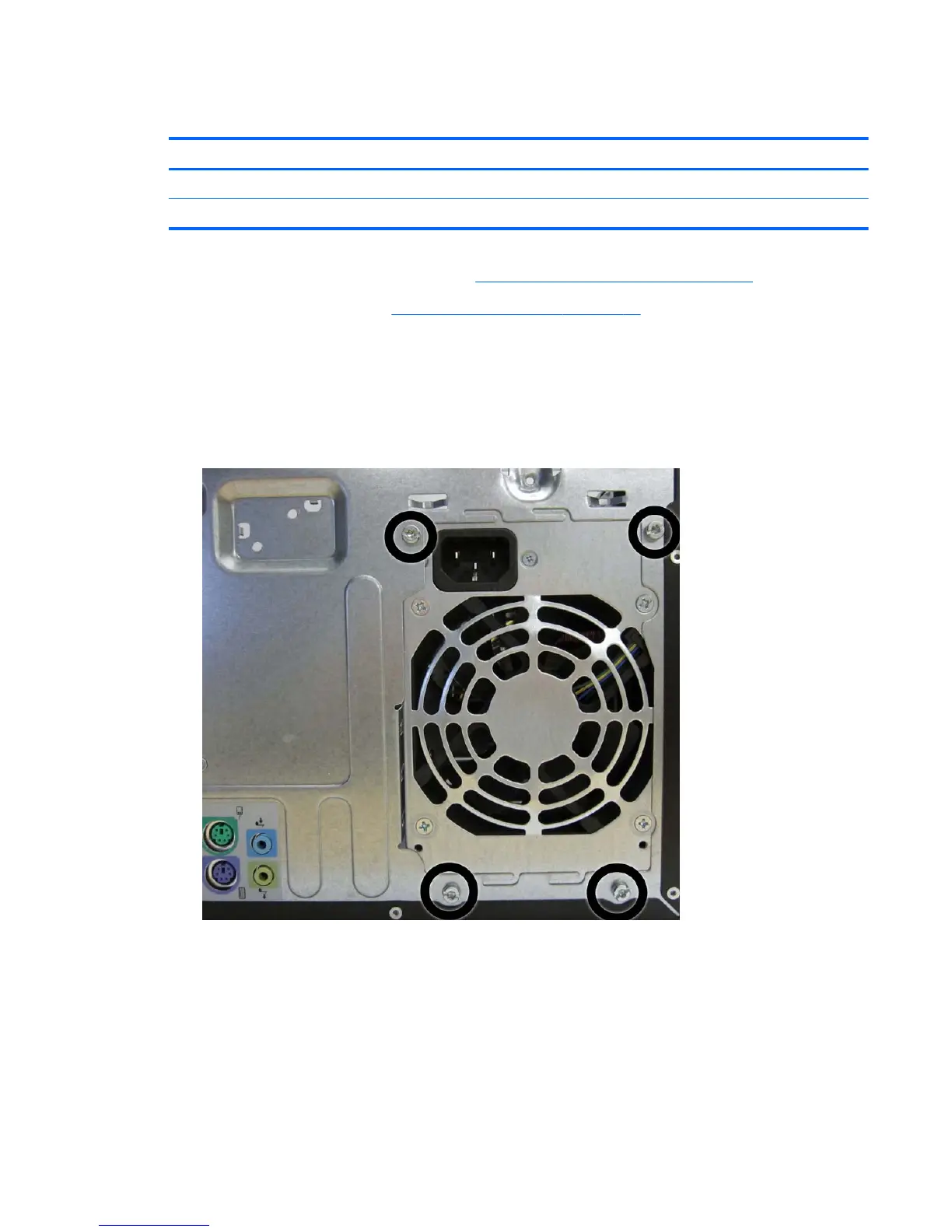

Figure 6-34 Power supply screws
6. Press the tab (1) on the base pan in front of the power supply that holds it in place.
Power Supply 91

HP Compaq Pro 6300 Series Small Form Factor Specifications

General

Form Factor	Small Form Factor
Expansion Slots	1 PCIe x16, 1 PCIe x1, 1 PCI
Processor	Intel Core i3/i5/i7
Chipset	Intel Q75 Express
Memory	Up to 32 GB DDR3-1600 SDRAM
Storage	128 GB Solid State Drive
Graphics	Integrated Intel HD Graphics
Optical Drive	DVD-ROM
Operating System	Windows 7, Windows 8, FreeDOS
USB Ports	6 USB 2.0
Ports	VGA, DisplayPort, RJ-45, Serial, PS/2, Audio in/out
Network	Integrated Intel 82579LM Gigabit Ethernet
Power Supply	240W
Dimensions	338 x 379 x 100 mm (13.3 x 14.9 x 3.9 in)
Weight	7.6 kg (16.7 lbs)
Audio	Integrated HD audio
