HP Compaq Pro 6300 Series Small Form Factor User Manual

Speaker
Description Spare part number
Speaker 645330-001
1. Prepare the computer for disassembly (Preparation for Disassembly on page 54).
2. Remove the access panel (
Computer Access Panel on page 55).
3. Remove the front fan assembly (
Front Fan Assembly on page 79).
4. Disconnect the speaker wire from the system board connector labeled SPKR.
5. From the inside of the chassis, remove the two silver Torx T15 screws (1) that secure the
speaker to the chassis.
6. Rotate the top of the speaker downward (2), and then remove it from the chassis.

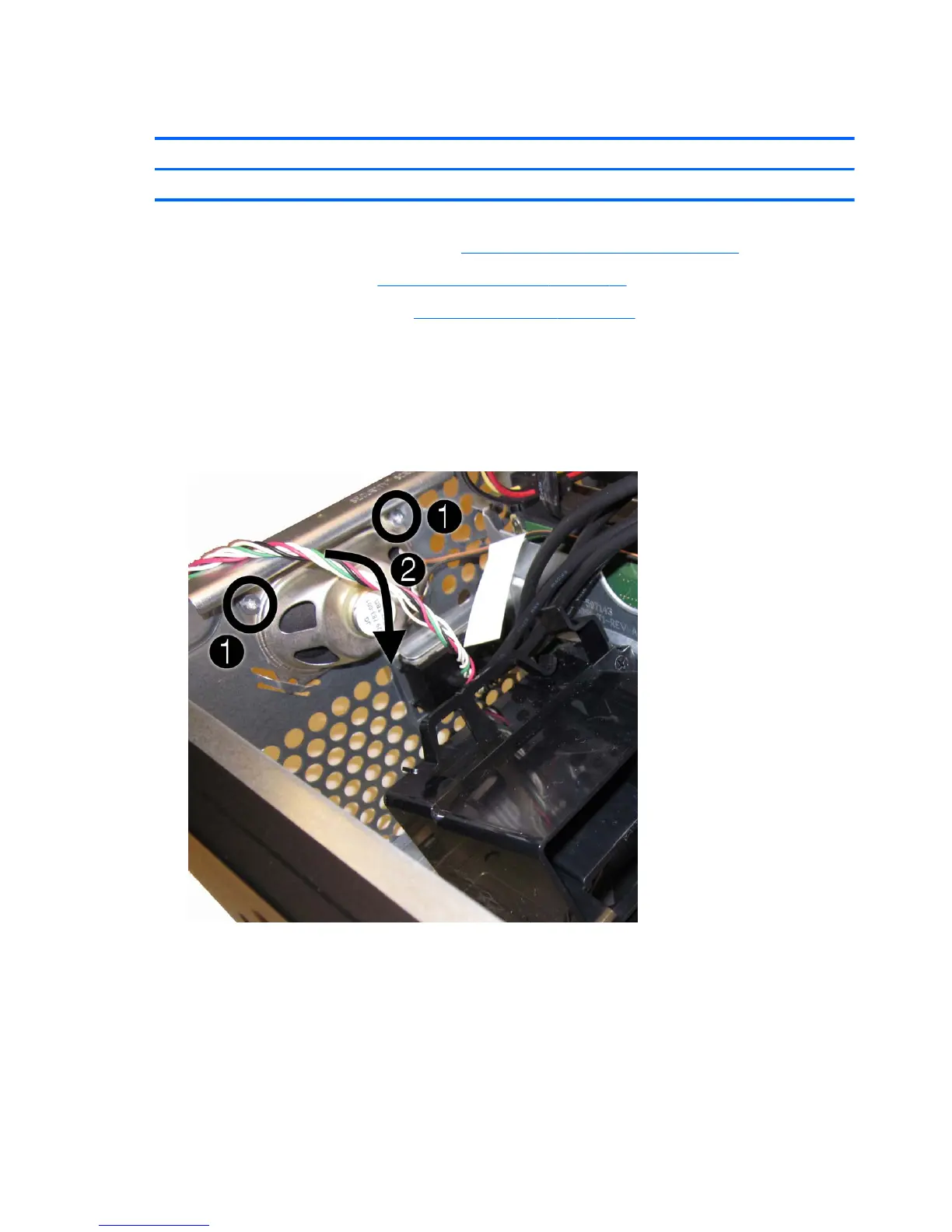

Figure 6-31 Removing the speaker
To replace the speaker, reverse the removal procedures.
88 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis

HP Compaq Pro 6300 Series Small Form Factor Specifications

General

Form Factor	Small Form Factor
Expansion Slots	1 PCIe x16, 1 PCIe x1, 1 PCI
Processor	Intel Core i3/i5/i7
Chipset	Intel Q75 Express
Memory	Up to 32 GB DDR3-1600 SDRAM
Storage	128 GB Solid State Drive
Graphics	Integrated Intel HD Graphics
Optical Drive	DVD-ROM
Operating System	Windows 7, Windows 8, FreeDOS
USB Ports	6 USB 2.0
Ports	VGA, DisplayPort, RJ-45, Serial, PS/2, Audio in/out
Network	Integrated Intel 82579LM Gigabit Ethernet
Power Supply	240W
Dimensions	338 x 379 x 100 mm (13.3 x 14.9 x 3.9 in)
Weight	7.6 kg (16.7 lbs)
Audio	Integrated HD audio
