Rear Chassis Fan
Description Spare part number
Rear chassis fan 636922-001
1. Prepare the computer for disassembly (Preparation for Disassembly on page 54).
2. Remove the access panel (
Computer Access Panel on page 55).
3. Remove the four silver Phillips screws that secure the fan to the chassis.

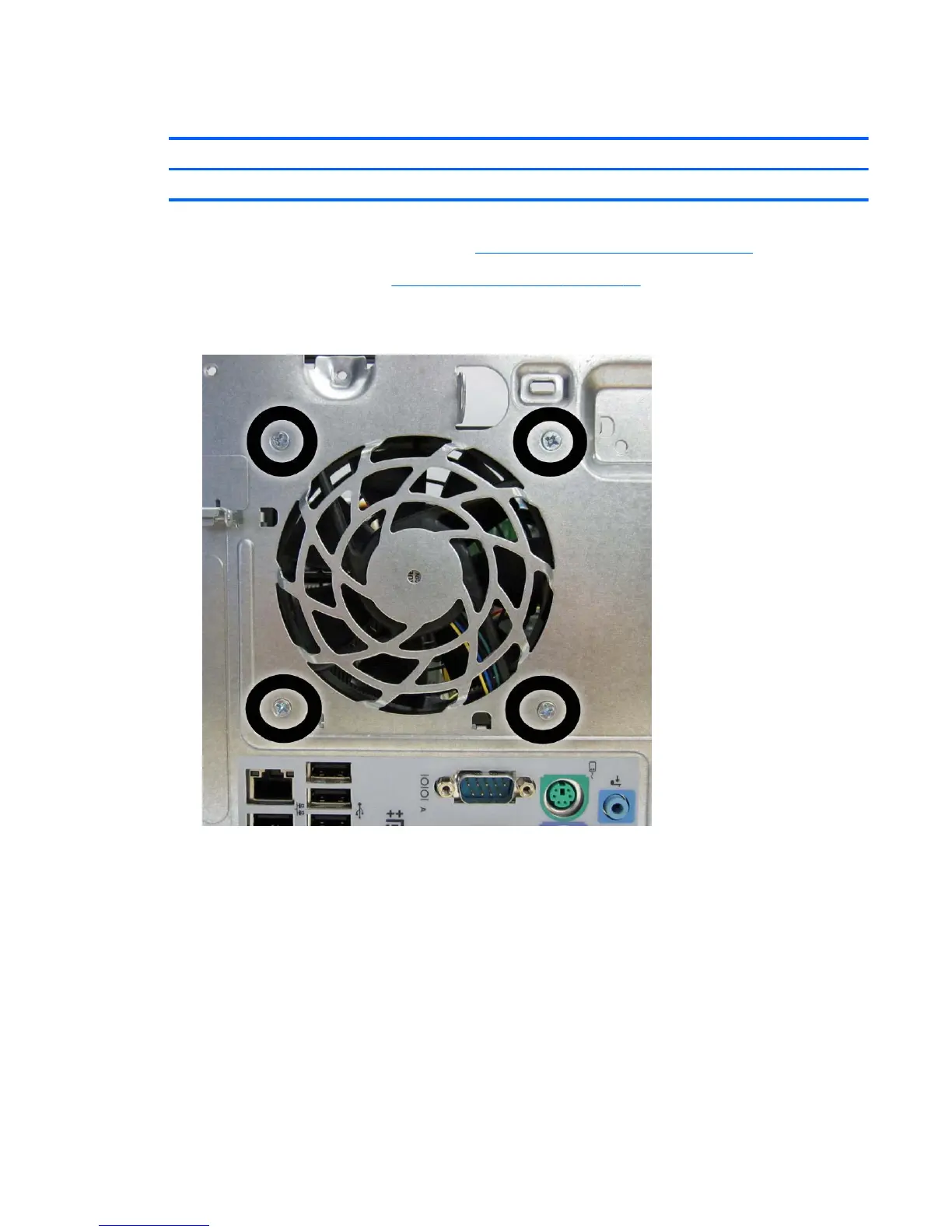

Figure 6-32 Rear fan screws
4. Disconnect the fan control cable (1) from the system board connector labeled CHFAN2.
Rear Chassis Fan 89
