Front Bezel
Description Spare part number
Front bezel 687950-001
1. Prepare the computer for disassembly (Preparation for Disassembly on page 94).
2. Remove the access panel (
Access Panel on page 95).
3. Lift up the three tabs on the side of the bezel (1), then rotate the bezel off the chassis (2).

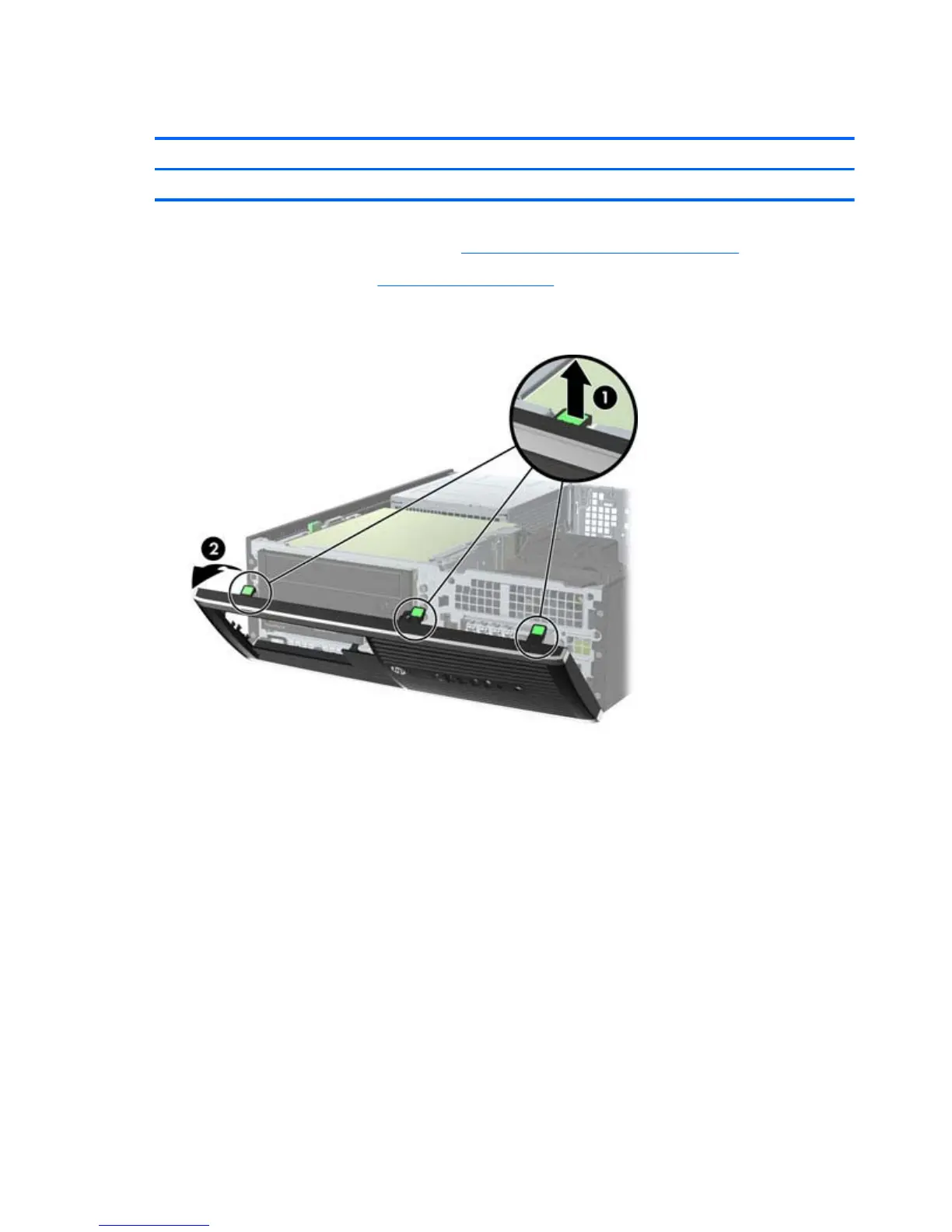

Figure 7-2 Removing the front bezel
To install the front bezel, reverse the removal procedure.
96 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
