HP Compaq Pro 6300 Series Small Form Factor User Manual

Front I/O, Power Switch Assembly
Description Spare part number
Front I/O and power switch assembly 636926-001
The front I/O and power switch/LEDs is one assembly, attached to the front of the chassis. Push the
assembly into the chassis to remove.
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 94).
2. Remove the access panel (
Access Panel on page 95).
3. Remove the front bezel (
Front Bezel on page 96).
4. Remove the chassis fan (
Front Fan Assembly on page 120).
5. Rotate the drive cage to its upright position.
6. Disconnect the four cables from the system board as follows:
●
Yellow connector labeled FRONT_USB
●
Green connector labeled FRONT_USB2
●
Blue connector labeled FRONT AUD
●
Black connector labeled PB/LED

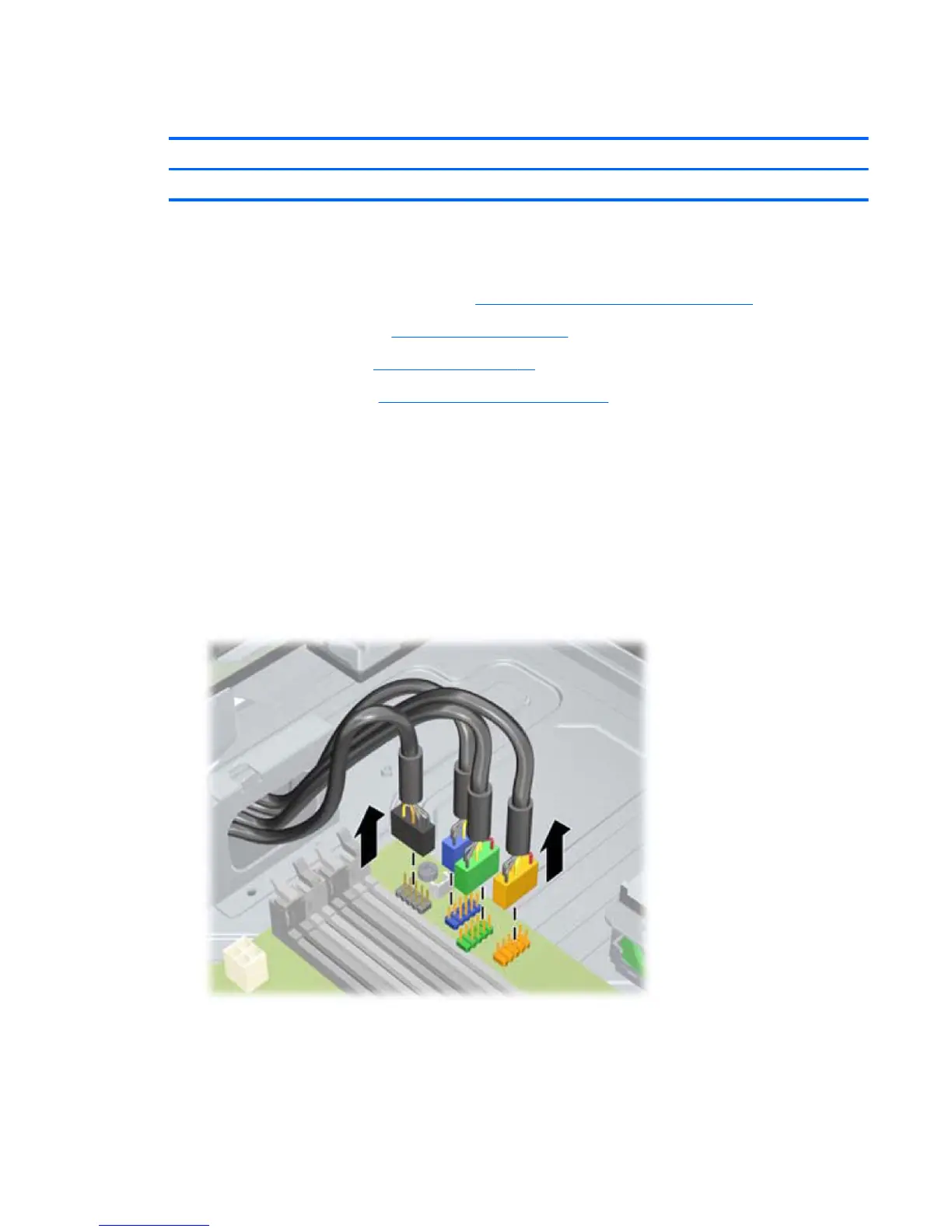

Figure 7-31 Disconnecting the front I/O, power switch/LED assembly cables
7. Remove the Torx T15 screw (1) that secures the assembly to the front of the chassis.
Front I/O, Power Switch Assembly 123

HP Compaq Pro 6300 Series Small Form Factor Specifications

General

Form Factor	Small Form Factor
Expansion Slots	1 PCIe x16, 1 PCIe x1, 1 PCI
Processor	Intel Core i3/i5/i7
Chipset	Intel Q75 Express
Memory	Up to 32 GB DDR3-1600 SDRAM
Storage	128 GB Solid State Drive
Graphics	Integrated Intel HD Graphics
Optical Drive	DVD-ROM
Operating System	Windows 7, Windows 8, FreeDOS
USB Ports	6 USB 2.0
Ports	VGA, DisplayPort, RJ-45, Serial, PS/2, Audio in/out
Network	Integrated Intel 82579LM Gigabit Ethernet
Power Supply	240W
Dimensions	338 x 379 x 100 mm (13.3 x 14.9 x 3.9 in)
Weight	7.6 kg (16.7 lbs)
Audio	Integrated HD audio
