8. Route the cables through the slots beneath the drive cage, rotate the assembly into the chassis
(2), and then remove the assembly from the computer.

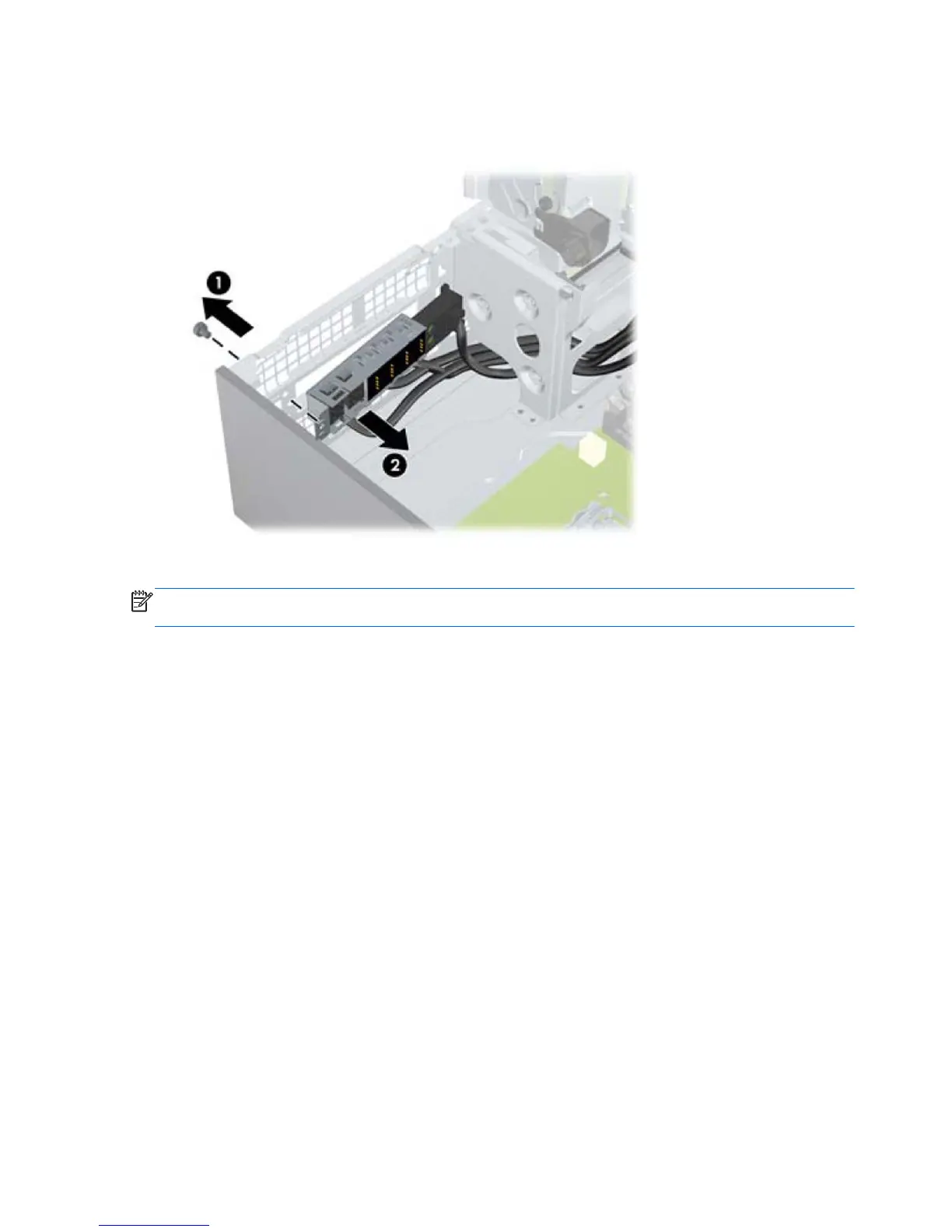

Figure 7-32 Removing the front I/O, power switch/LED assembly screw
To install the front I/O and power switch assembly, reverse the removal procedure.
NOTE: Be sure to correctly route the cables beneath the drive cage when reinstalling the assembly.
Proper cable routing prevents damage to the cables and allows the drive cage to close properly.
