CAUTION: To prevent loss of work and damage to the computer or drive:

If you are inserting or removing a drive, shut down the operating system properly, turn off the

computer, and unplug the power cord. Do not remove a drive while the computer is on or in standby

mode.

Before handling a drive, ensure that you are discharged of static electricity. While handling a drive,

avoid touching the connector.

Handle a drive carefully; do not drop it.

Do not use excessive force when inserting a drive.

Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic fields

such as monitors or speakers.

If a drive must be mailed, place the drive in a bubble-pack mailer or other protective packaging and

label the package “Fragile: Handle With Care.”

Drive Positions

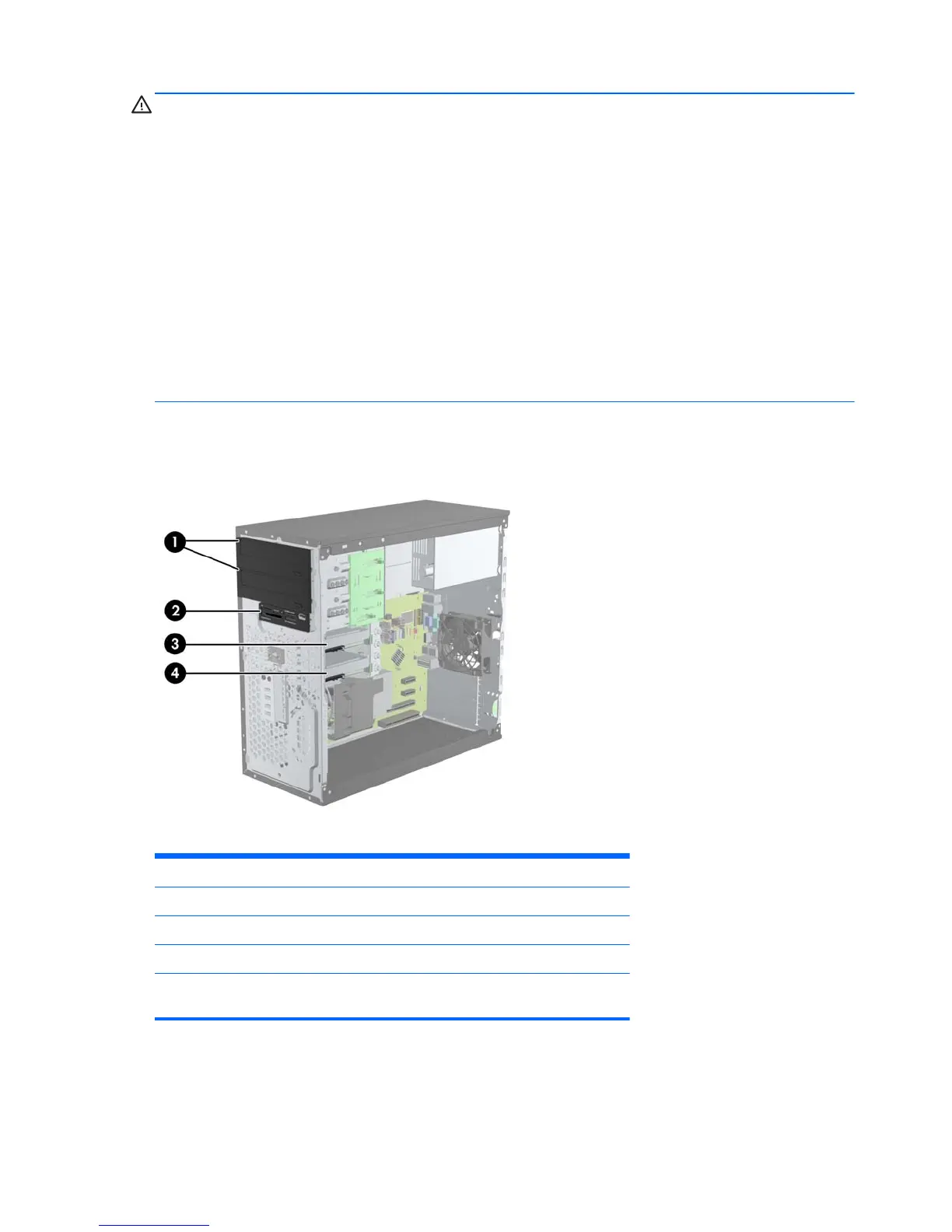

Figure 6-14 Drive Positions

Table 6-2 Drive Positions

1 Two 5.25-inch drive bays for optional drives (optical drives shown)

2 One 3.5-inch drive bay for optional drive (media card reader shown)

3 Secondary 3.5-inch internal hard drive bay for optional hard drive

4 Primary 3.5-inch internal hard drive bay

NOTE: The drive configuration on your computer may be different than the drive

configuration shown above.

To verify the type and size of the storage devices installed in the computer, run Computer Setup.
