HP Compaq Pro 6300 Series Small Form Factor User Manual

Speaker
Description Spare part number
Speaker 636925-001
The speaker is attached to the front of the chassis under the rotating drive cage.
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 94).
2. Remove the access panel (
Access Panel on page 95).
3. Remove the front bezel (
Front Bezel on page 96).
4. Rotate the drive cage to its upright position.
5. Disconnect the speaker wire from the white system board labeled SPKR (1).
6. Remove the Torx screw that secures the speaker to the chassis (2).
7. Lift the speaker from the inside of the chassis to remove it (3).

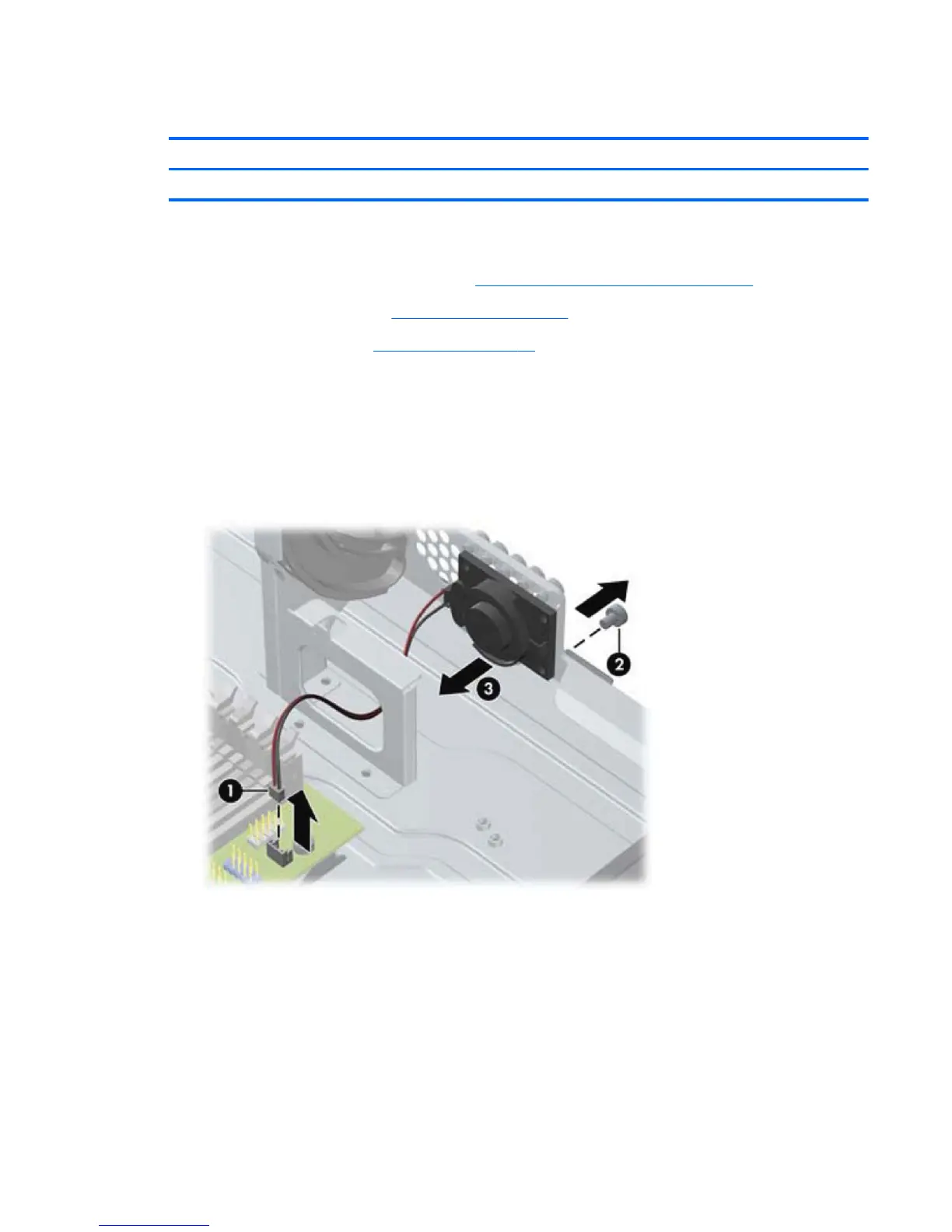

Figure 7-33 Removing the speaker
To install the speaker, reverse the removal procedures.
Speaker 125

HP Compaq Pro 6300 Series Small Form Factor Specifications

General

Form Factor	Small Form Factor
Expansion Slots	1 PCIe x16, 1 PCIe x1, 1 PCI
Processor	Intel Core i3/i5/i7
Chipset	Intel Q75 Express
Memory	Up to 32 GB DDR3-1600 SDRAM
Storage	128 GB Solid State Drive
Graphics	Integrated Intel HD Graphics
Optical Drive	DVD-ROM
Operating System	Windows 7, Windows 8, FreeDOS
USB Ports	6 USB 2.0
Ports	VGA, DisplayPort, RJ-45, Serial, PS/2, Audio in/out
Network	Integrated Intel 82579LM Gigabit Ethernet
Power Supply	240W
Dimensions	338 x 379 x 100 mm (13.3 x 14.9 x 3.9 in)
Weight	7.6 kg (16.7 lbs)
Audio	Integrated HD audio
