HP Compaq Pro 6300 Series Small Form Factor User Manual

Front I/O Assembly
Description Spare part number
Front I/O assembly 646827-001
1. Prepare the computer for disassembly (Preparation for Disassembly on page 54).
2. Remove the computer access panel (
Computer Access Panel on page 55).
3. Remove the front bezel (
Front Bezel on page 56).
4. Remove the front fan (
Front Fan Assembly on page 79).
5. Disconnect the three front I/O cables (yellow, green, and blue) from the system board
connectors (FRONT USB, FRONT USB2, and FRONT AUD).
6. Remove the Torx T15 screw that secures the assembly to the chassis.

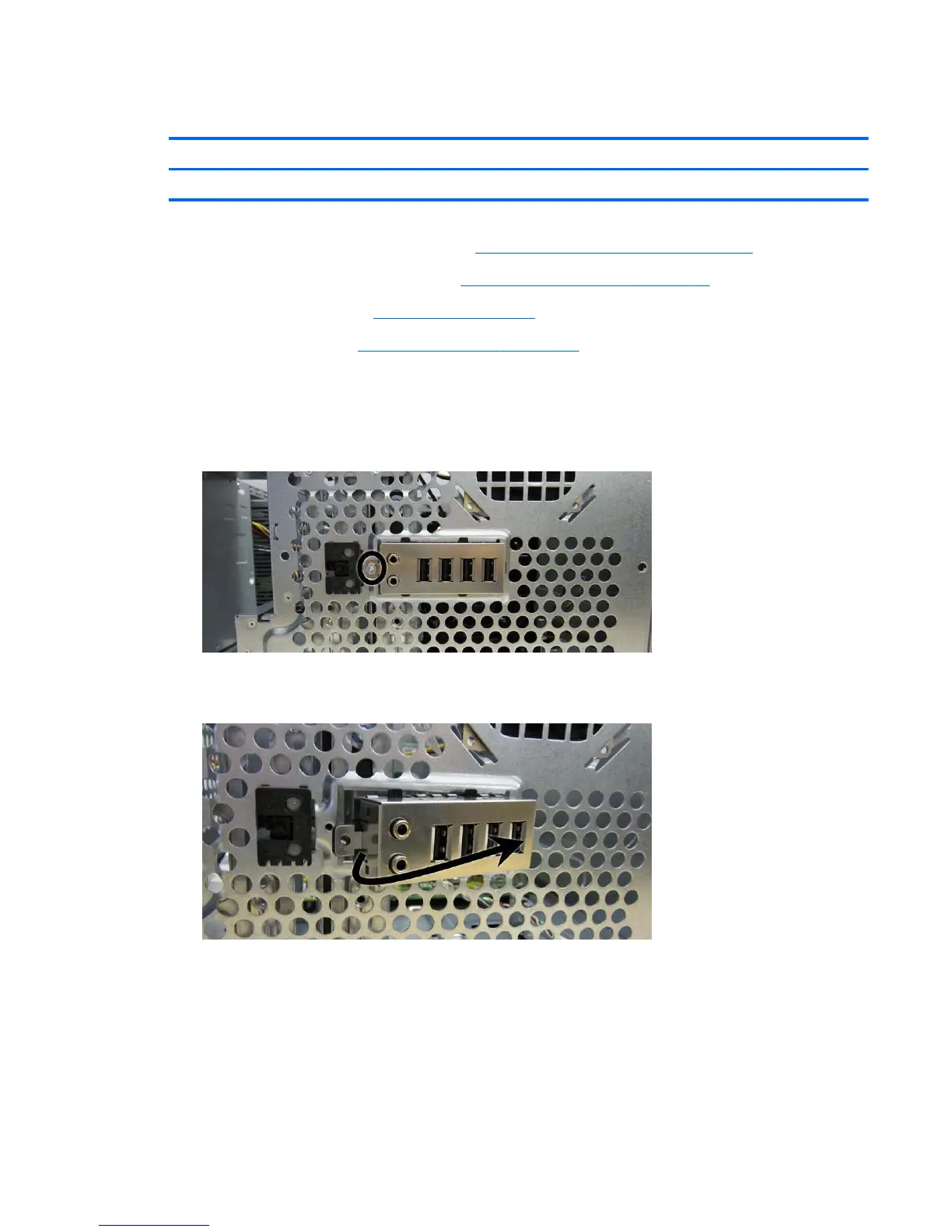

Figure 6-28 Removing the front I/O assembly screw
7. Rotate the left side of the assembly to the right .
Figure 6-29 Removing the front I/O assembly
8. Pull the assembly away from the computer while threading the wires through the hole in the front
of the chassis.
To reinstall the assembly, reverse the removal procedure.
Front I/O Assembly 81

HP Compaq Pro 6300 Series Small Form Factor Specifications

General

Form Factor	Small Form Factor
Expansion Slots	1 PCIe x16, 1 PCIe x1, 1 PCI
Processor	Intel Core i3/i5/i7
Chipset	Intel Q75 Express
Memory	Up to 32 GB DDR3-1600 SDRAM
Storage	128 GB Solid State Drive
Graphics	Integrated Intel HD Graphics
Optical Drive	DVD-ROM
Operating System	Windows 7, Windows 8, FreeDOS
USB Ports	6 USB 2.0
Ports	VGA, DisplayPort, RJ-45, Serial, PS/2, Audio in/out
Network	Integrated Intel 82579LM Gigabit Ethernet
Power Supply	240W
Dimensions	338 x 379 x 100 mm (13.3 x 14.9 x 3.9 in)
Weight	7.6 kg (16.7 lbs)
Audio	Integrated HD audio
