7. Pull the assembly toward the rear of the unit (2), and then lift it out of the chassis.

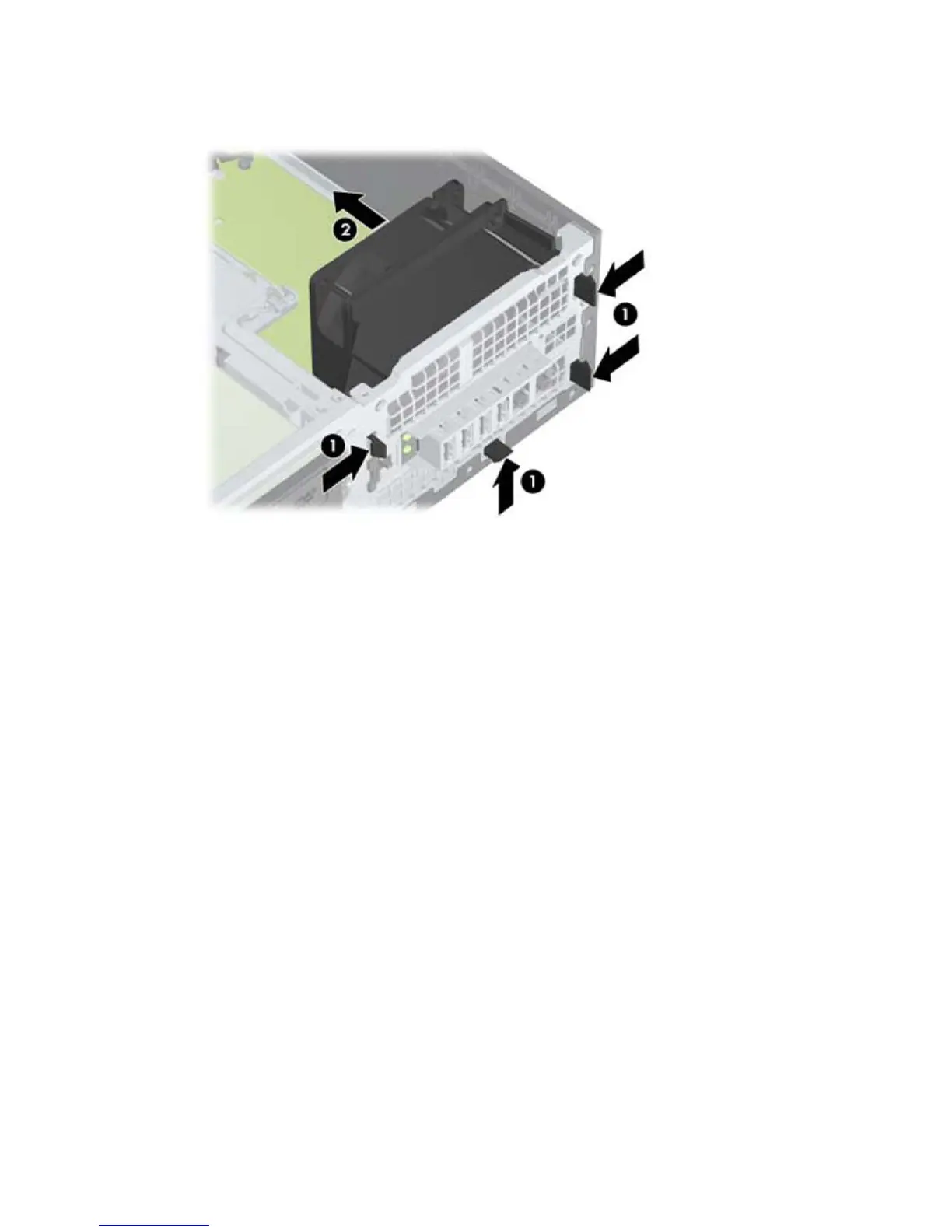

Figure 7-29 Removing the front fan
To install the front fan, reverse the removal procedure. Be sure to orient the air flow into the unit.
Front Fan Assembly 121

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HP Compaq Pro 6300 Series Small Form Factor and is the answer not in the manual?

HP Compaq Pro 6300 Series Small Form Factor Specifications

General IconGeneral
Form FactorSmall Form Factor
Expansion Slots1 PCIe x16, 1 PCIe x1, 1 PCI
ProcessorIntel Core i3/i5/i7
ChipsetIntel Q75 Express
MemoryUp to 32 GB DDR3-1600 SDRAM
Storage128 GB Solid State Drive
GraphicsIntegrated Intel HD Graphics
Optical DriveDVD-ROM
Operating SystemWindows 7, Windows 8, FreeDOS
USB Ports6 USB 2.0
PortsVGA, DisplayPort, RJ-45, Serial, PS/2, Audio in/out
NetworkIntegrated Intel 82579LM Gigabit Ethernet
Power Supply240W
Dimensions338 x 379 x 100 mm (13.3 x 14.9 x 3.9 in)
Weight7.6 kg (16.7 lbs)
AudioIntegrated HD audio
