7. Depending on the type of battery holder on the system board, complete the following instructions
to replace the battery.
Type 1
a. Lift the battery out of its holder.

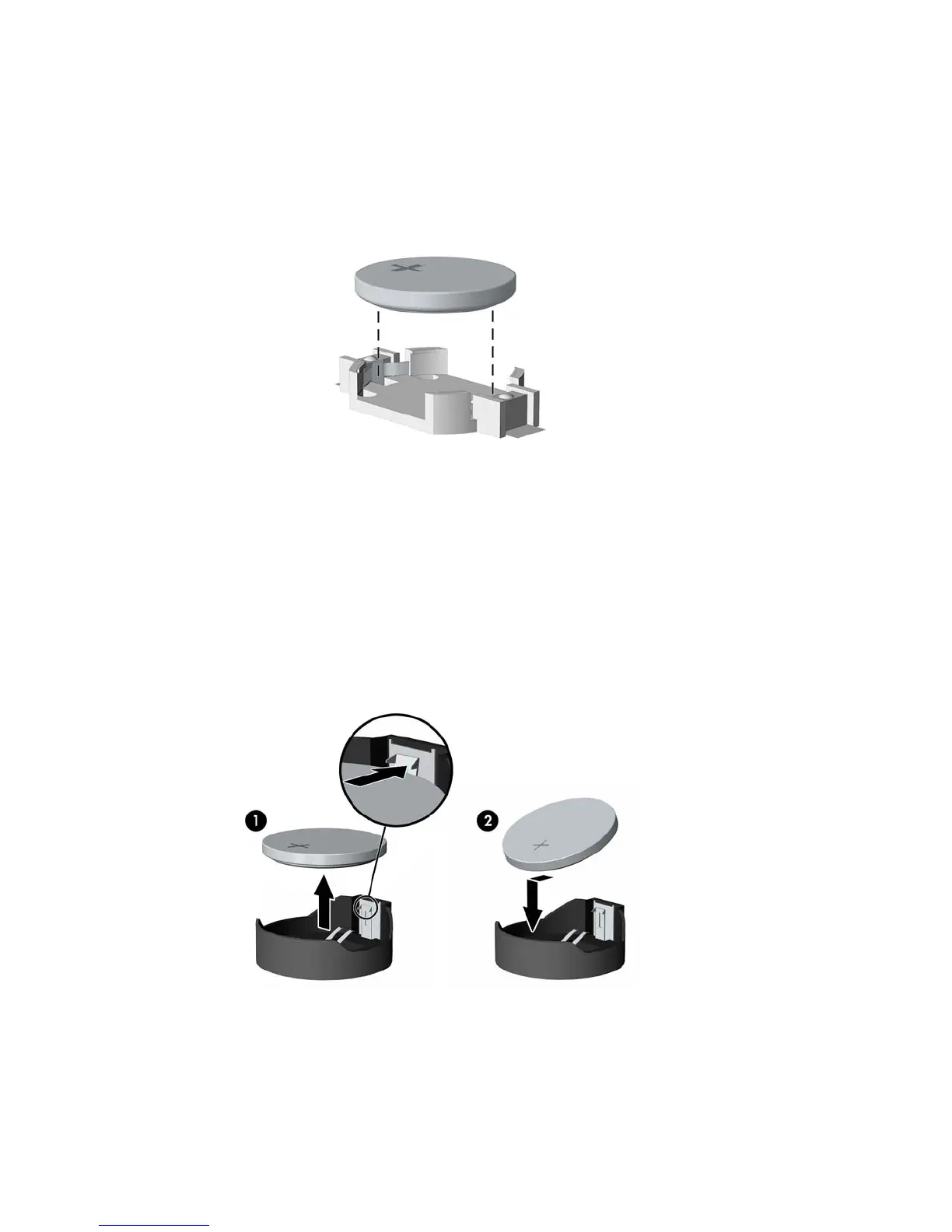

Figure A-1 Removing a Coin Cell Battery (Type 1)
b. Slide the replacement battery into position, positive side up. The battery holder
automatically secures the battery in the proper position.
Type 2
a. To release the battery from its holder, squeeze the metal clamp that extends above one
edge of the battery. When the battery pops up, lift it out (1).
b. To insert the new battery, slide one edge of the replacement battery under the holder’s lip
with the positive side up. Push the other edge down until the clamp snaps over the other
edge of the battery (2).
Figure A-2 Removing and Replacing a Coin Cell Battery (Type 2)
Type 3
a. Pull back on the clip (1) that is holding the battery in place, and remove the battery (2).
205

HP Compaq Pro 6300 Series Small Form Factor Specifications

General

Form Factor	Small Form Factor
Expansion Slots	1 PCIe x16, 1 PCIe x1, 1 PCI
Processor	Intel Core i3/i5/i7
Chipset	Intel Q75 Express
Memory	Up to 32 GB DDR3-1600 SDRAM
Storage	128 GB Solid State Drive
Graphics	Integrated Intel HD Graphics
Optical Drive	DVD-ROM
Operating System	Windows 7, Windows 8, FreeDOS
USB Ports	6 USB 2.0
Ports	VGA, DisplayPort, RJ-45, Serial, PS/2, Audio in/out
Network	Integrated Intel 82579LM Gigabit Ethernet
Power Supply	240W
Dimensions	338 x 379 x 100 mm (13.3 x 14.9 x 3.9 in)
Weight	7.6 kg (16.7 lbs)
Audio	Integrated HD audio
