b. If your are installing a media card reader, connect the USB cable to the USB system board
connector labeled MEDIA.

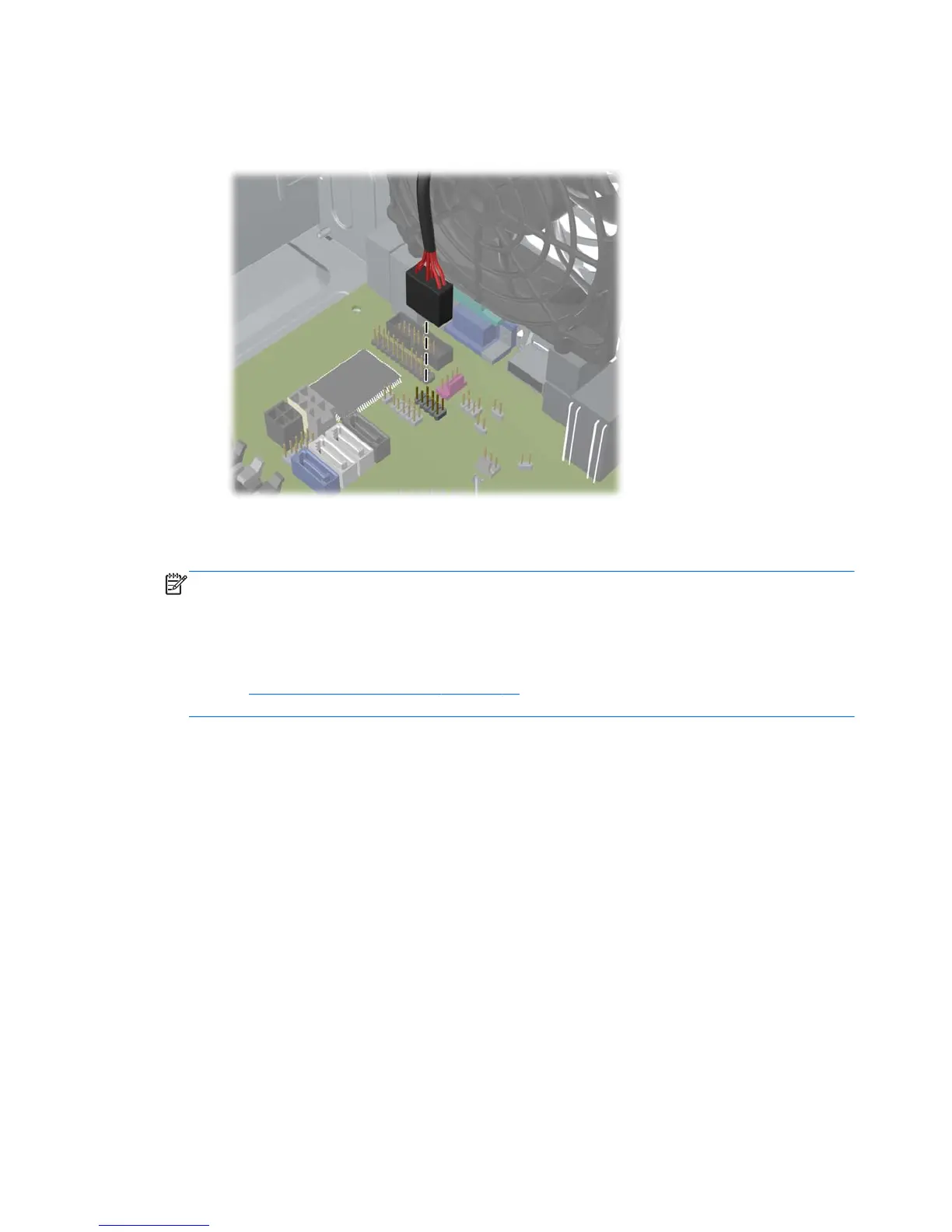

Figure 6-19 Connecting the Media Card Reader USB Cable
8. If installing a new drive, connect the opposite end of the data cable to the appropriate system
board connector.
NOTE: If you are installing a new SATA optical drive, connect the data cable for the first optical
drive to the white SATA connector on the system board labeled SATA2. Connect the data cable
for a second optical drive to the black SATA connector on the system board labeled ESATA. If
the ESATA connector is already populated, connect the second optical drive to white connector
labeled SATA1.
Refer to
System Board Connections on page 67 for an illustration of the system board drive
connectors.
9. Replace the front bezel and computer access panel.
10. Reconnect the power cord and any external devices, then turn on the computer.
11. Lock any security devices that were disengaged when the access panel was removed.
74 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis

HP Compaq Pro 6300 Series Small Form Factor Specifications

General

Form Factor	Small Form Factor
Expansion Slots	1 PCIe x16, 1 PCIe x1, 1 PCI
Processor	Intel Core i3/i5/i7
Chipset	Intel Q75 Express
Memory	Up to 32 GB DDR3-1600 SDRAM
Storage	128 GB Solid State Drive
Graphics	Integrated Intel HD Graphics
Optical Drive	DVD-ROM
Operating System	Windows 7, Windows 8, FreeDOS
USB Ports	6 USB 2.0
Ports	VGA, DisplayPort, RJ-45, Serial, PS/2, Audio in/out
Network	Integrated Intel 82579LM Gigabit Ethernet
Power Supply	240W
Dimensions	338 x 379 x 100 mm (13.3 x 14.9 x 3.9 in)
Weight	7.6 kg (16.7 lbs)
Audio	Integrated HD audio
