Removal and Replacement Procedures
2. If you are removing the power supply from hot-plug power supply bay 1, and there is a
sliding rail solution in place:
a. Loosen the cable retractor thumbscrew (1).
b. Pull the cable retractor back, away from the server chassis, and then away from the
rack rail (2).

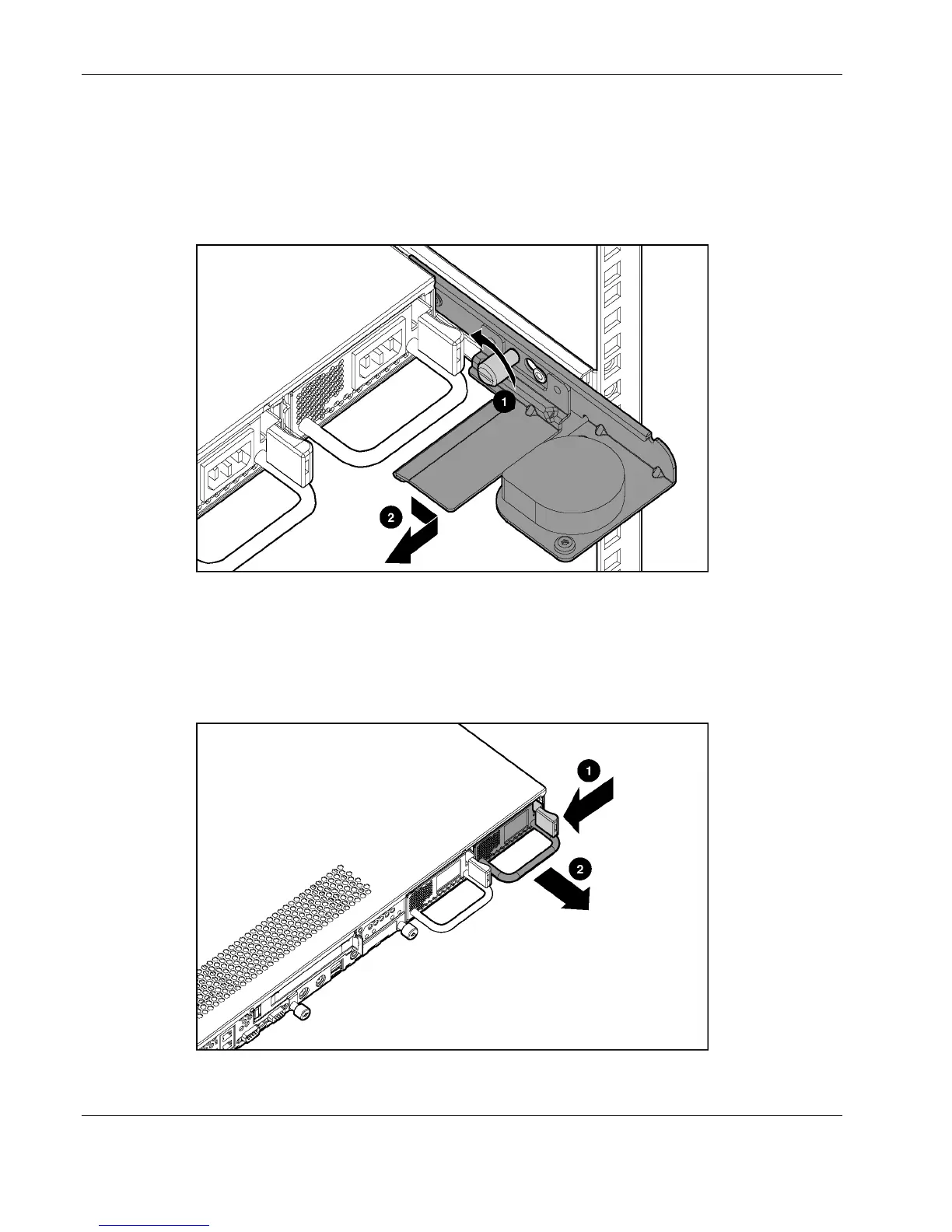

Figure 2-19: Moving the cable retractor to access the power supply
in hot-plug power supply bay 1 (cables removed for clarity)
3. Grasp the handle on the power supply.
4. Push the power supply ejector button (1).
5. Pull the power supply from the server (2).
Figure 2-20: Removing a power supply (cables removed for clarity)
2-20 HP ProLiant DL360 Generation 3 Server Maintenance and Service Guide
