Removal and Replacement Procedures
To replace a battery:
1. Power down the server. Refer to “Powering Down the Server” earlier in this chapter.
2. Remove the server from the rack. Refer to “Removing the Server from the Rack” earlier
in this chapter.
3. Remove the access panel. Refer to “Server Access Panel” earlier in this chapter.
4. Remove the battery-backed write cache enabler battery pack. Refer to “Battery-Backed
Write Cache Enabler” earlier in this chapter
5. Locate the battery holder on the system board.

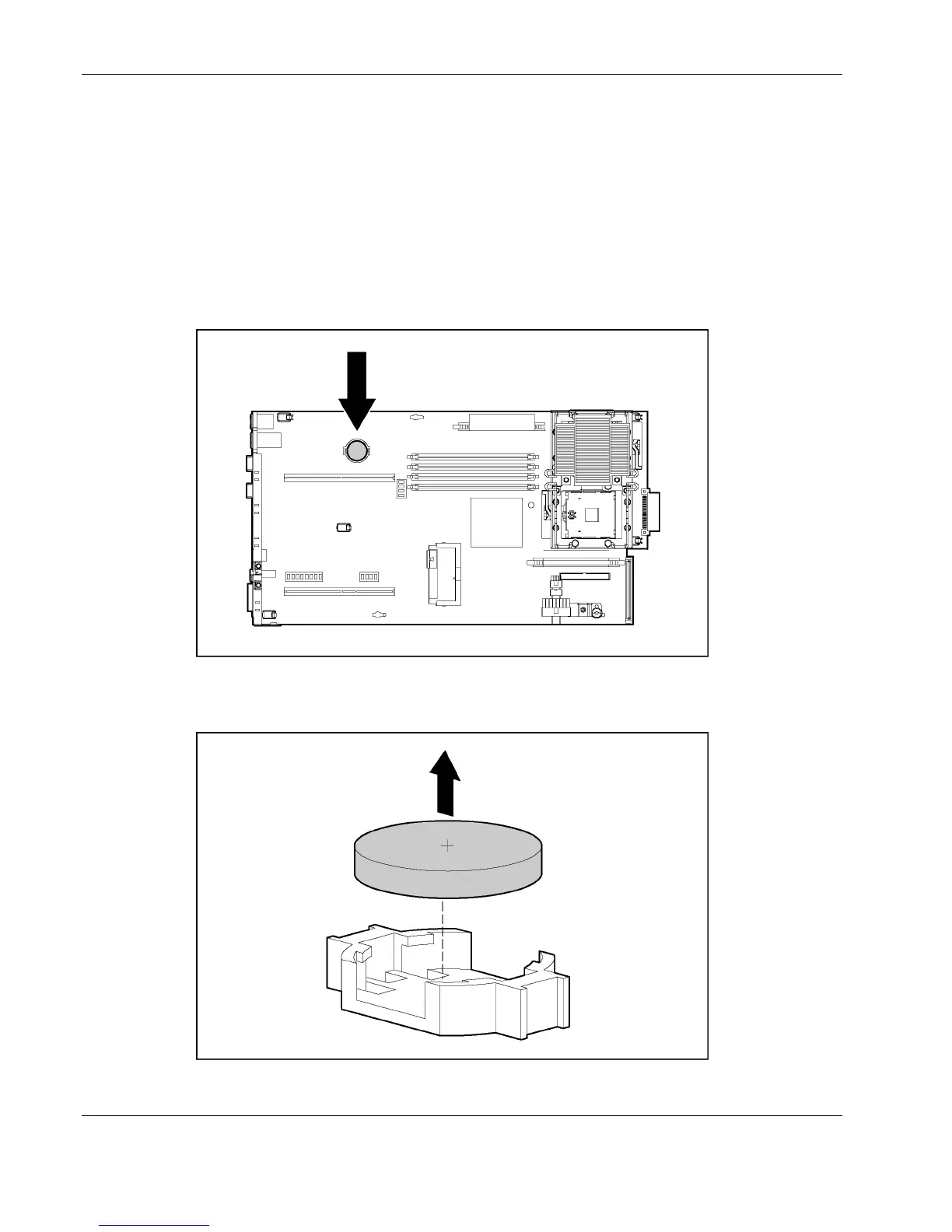

Figure 2-48: Battery location
6. Remove the existing battery.
Figure 2-49: Removing the system battery
2-42 HP ProLiant DL360 Generation 3 Server Maintenance and Service Guide
