Hardware options installation 75
HP NC524SFP Dual Port 10GbE Module option
When installed on the HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter, the HP
NC524SFP Dual Port 10GbE Module provides two 10G NIC connectors for server I/O.
If more than one HP NC375i adapter is installed in the server, always install the HP NC524SFP module
on the adapter in expansion slot 10.
The HP NC375i adapter supports four NIC connectors at a time. When the HP NC524SFP module is
installed, two 1G NIC connectors on the adapter are unavailable.
IMPORTANT: When both an HP NC524SFP module and an optional HP NC522SFP Dual Port
10GbE Server Adapter are installed in the server, only two expansion slots have Wake On
LAN capability.
To install the component:
1. Power down the server (on page 22).
2. Disconnect the network cables.
3. Do one of the following:
o Open or remove the tower bezel, as needed ("Open or remove the tower bezel" on page 22).
o Extend the server from the rack (on page 24).
4. Remove the access panel (on page 25).
5. Remove the air baffle (on page 26).

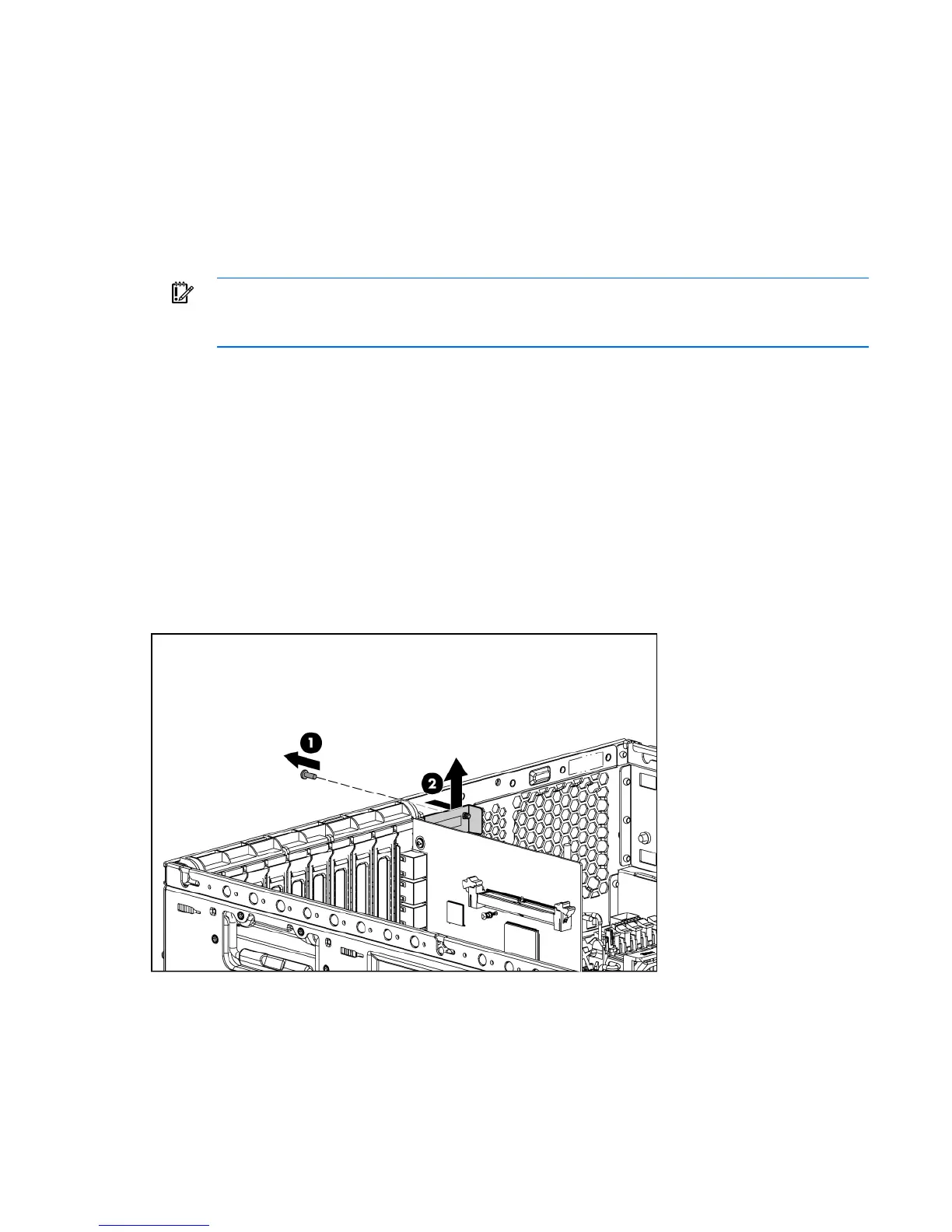

6. Using a T-15 Torx screwdriver, remove the 10G NIC adapter blank.
Save the retaining screw.
7. Open the expansion board slot retainer.
