Hardware options installation 88
24.

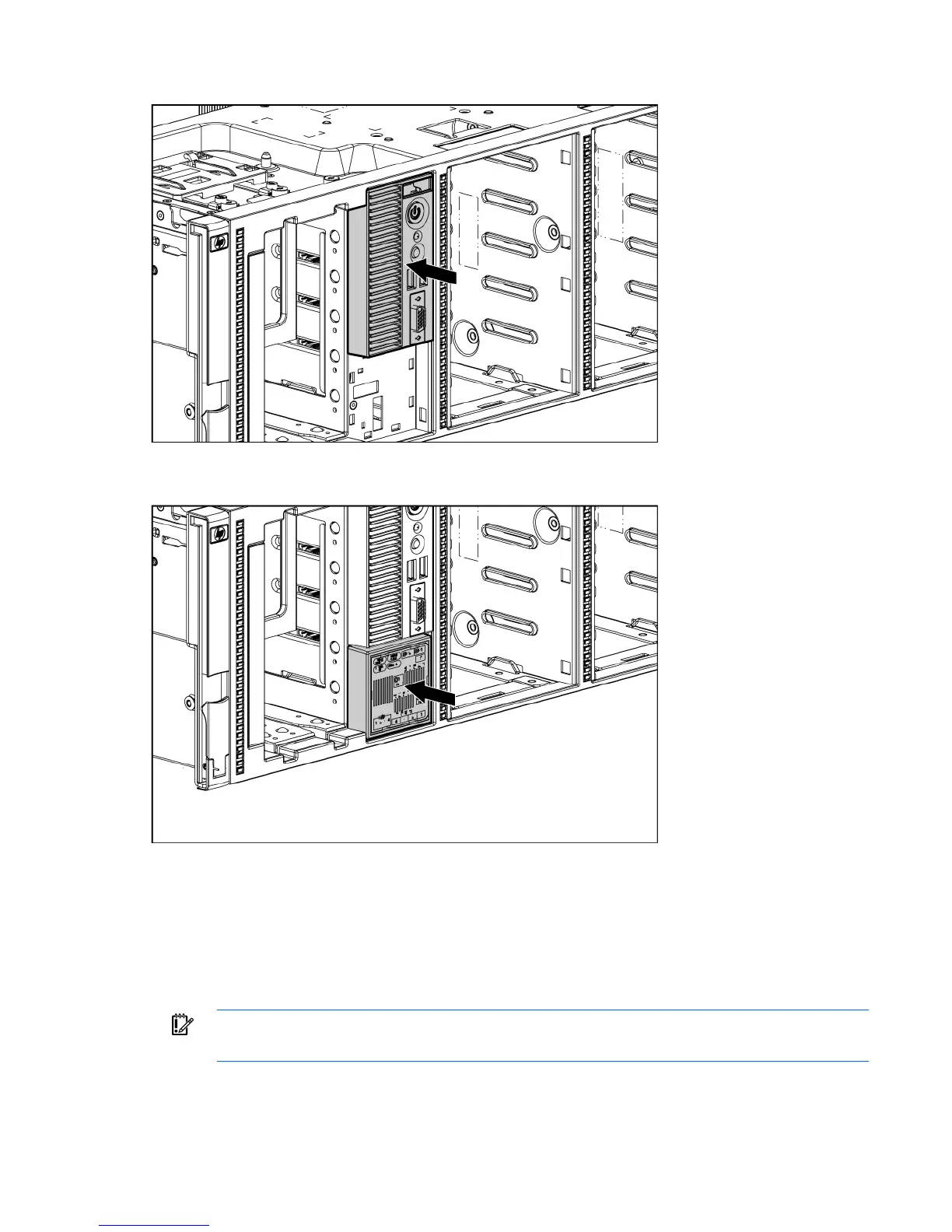

Install the I/O bezel.
25. Route and connect the front video connector cable to the front video connector on the system board.
26. Install the Systems Insight Display.
27. Install the SFF drive cages.
28. Install the two-bay LFF drive cage, if removed.
29. Install the DVD-ROM drive, if removed.
30. Connect the drive cables.
31. Install the fan cage.
32. Install the air baffle.
IMPORTANT: For the system to operate properly in a rack configuration, be sure to change the
setting on the system maintenance switch.
33. Set position 3 on the system maintenance switch to On.
