3 Illustrated parts catalog
To identify the monitor major components, use this illustration and table.

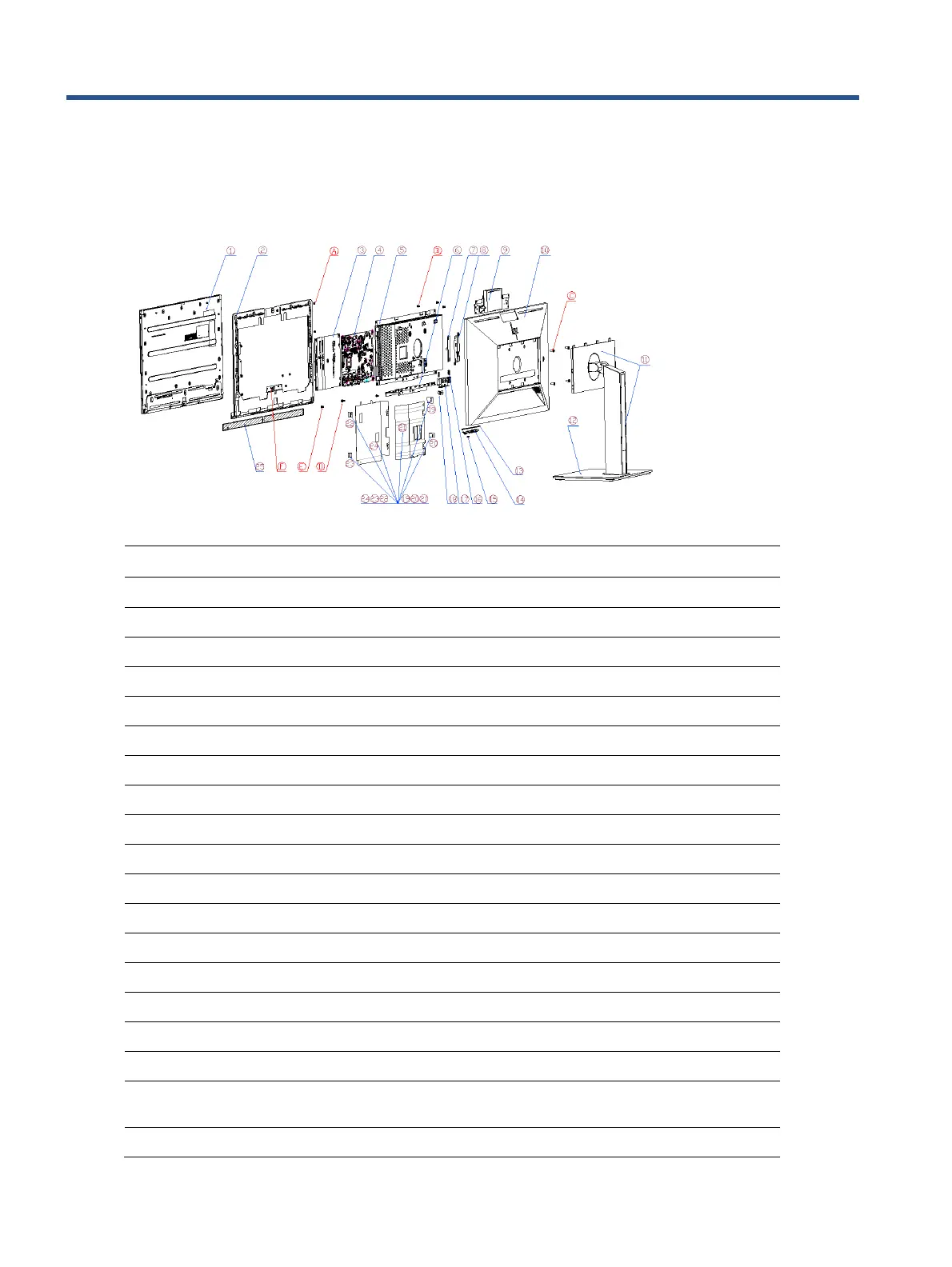

Mechanical explosion
Item
Description
Qty
1
LG PANEL
1
2
MID-FRAME_QWHH
1
3
PI BOARD
1
4
IF BOARD
1
5
MAIN PCB SHIELDING
1
6
IO Cover
1
7
USB BOARD
1
8
E274D_SIDE_BKT
1
9
E274D_Webcam_ASSY
1
10
REAR COVER_QWHH
1
11
STAND_ARM_ASSY
1
12
STAND_BASE_ASSY
1
13
KEYPAD
1
14
E274D_KEY_PAD
1
15
LENS, V201, HF
1
16
LENS, V201, HF
1
17
E274D_SLIDE
1
18
E274D_RELEASE_BUTTON
1
19
MYLAR, POWER BOARD BOTTOM, P174
1
