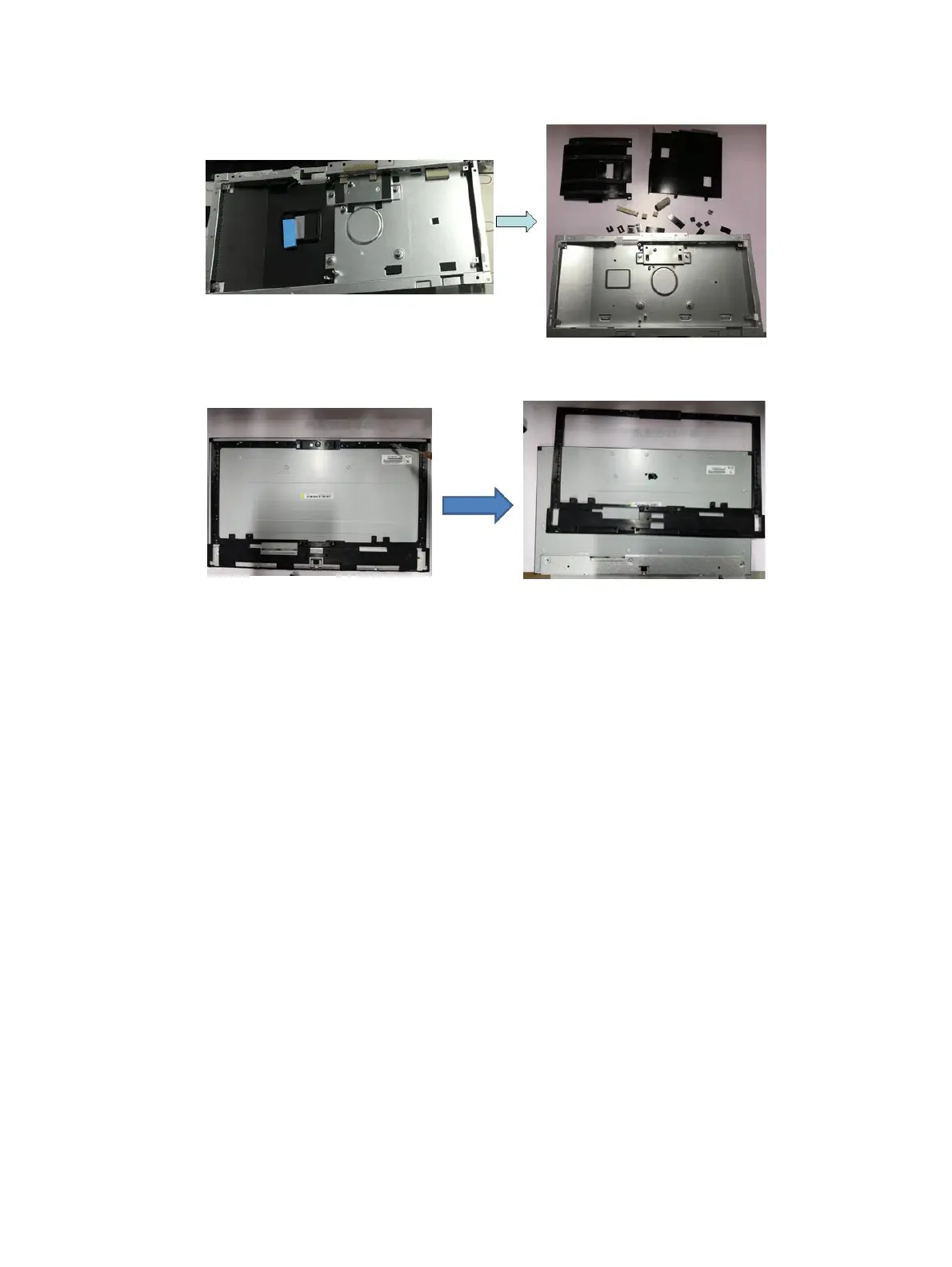

8) Disassemble chassis Assembly: Peel off all the mylar and Gasket
Disassemble Chassis Assembly
9) Disassemble Middle-frame: Release all the screws that fixed on Middle-frame
Disassemble Middle-frame
Power board
The power board part number is 790PB1400***H01*.
Before removing the power board, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 13.
Remove the power board:
1) The HP E24d G4 power board connector position is as follows:
