5. Remove the four screws that secure the power supply to the rear chassis.

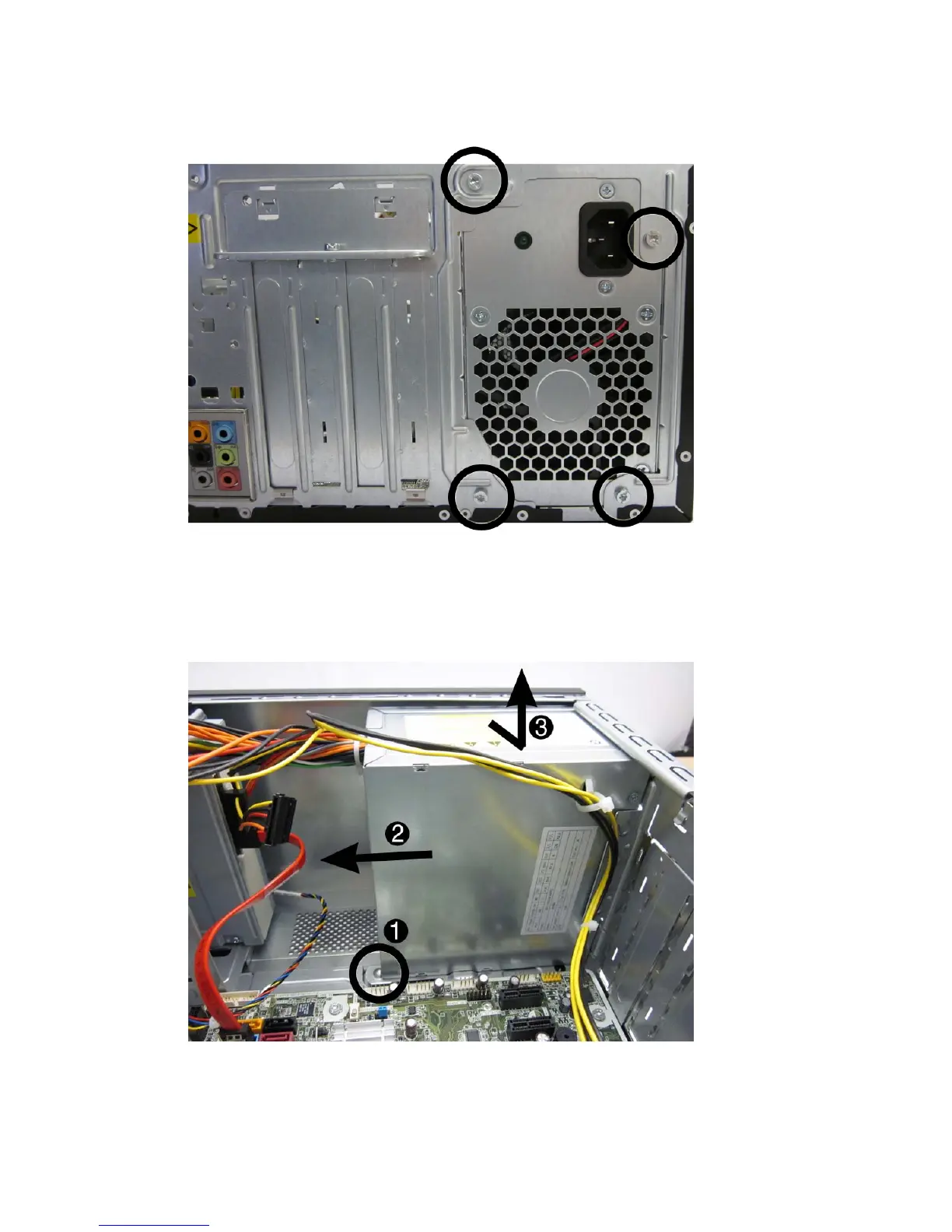

Figure 7-48 Power supply screws
6. Inside of the unit, press the power supply release latch on the chassis base (1).
7. Slide the power supply toward the front of the computer (2), then lift the power supply out of the
computer (3).
Figure 7-49 Removing the power supply
To install the power supply, reverse the removal procedure.
96 Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
