Power Switch/LED Assembly
Description Spare part number
Power switch/LED assembly 657105-001
1. Prepare the computer for disassembly (Preparation for Disassembly on page 46).
2. Remove the access panel (
Access Panel on page 47).
3. Lay the computer on its side with the front facing toward you.
4. Remove the front bezel (
Front Bezel on page 49).
5. Remove the optical drive (
Removing an Optical Drive on page 71).
6. Disconnect the braided cables from the black system board connector labeled JFP1.
7. Remove the cable from the clips in the optical drive cage.

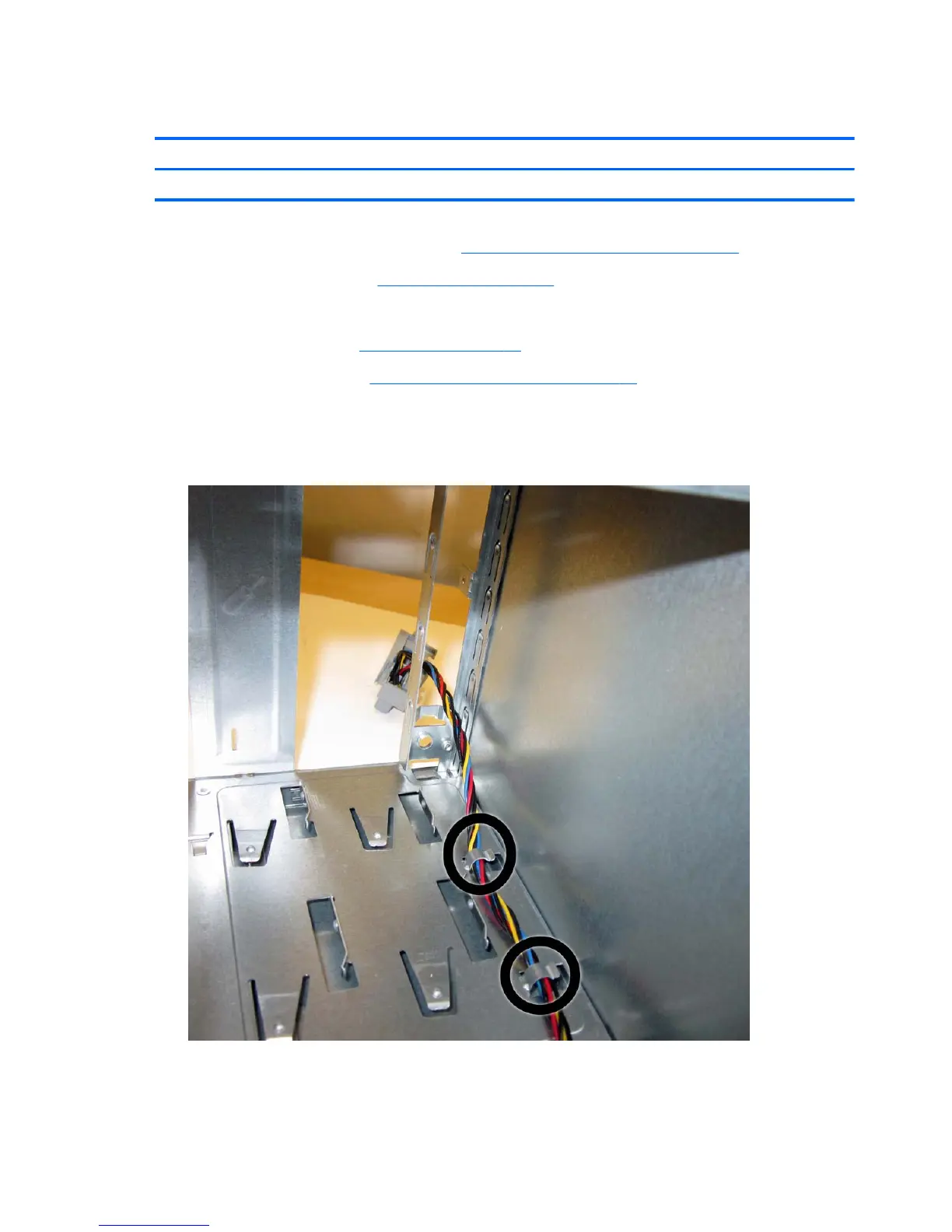

Figure 7-39 Power switch cable routing
84 Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
