Populating DIMM Sockets
Populate the DIMM sockets in the following order:
– Model 3305: DIMM1, DIMM3, DIMM2, DIMM4
– Model 3300, 7300, 7500: DIMM1, DIMM2

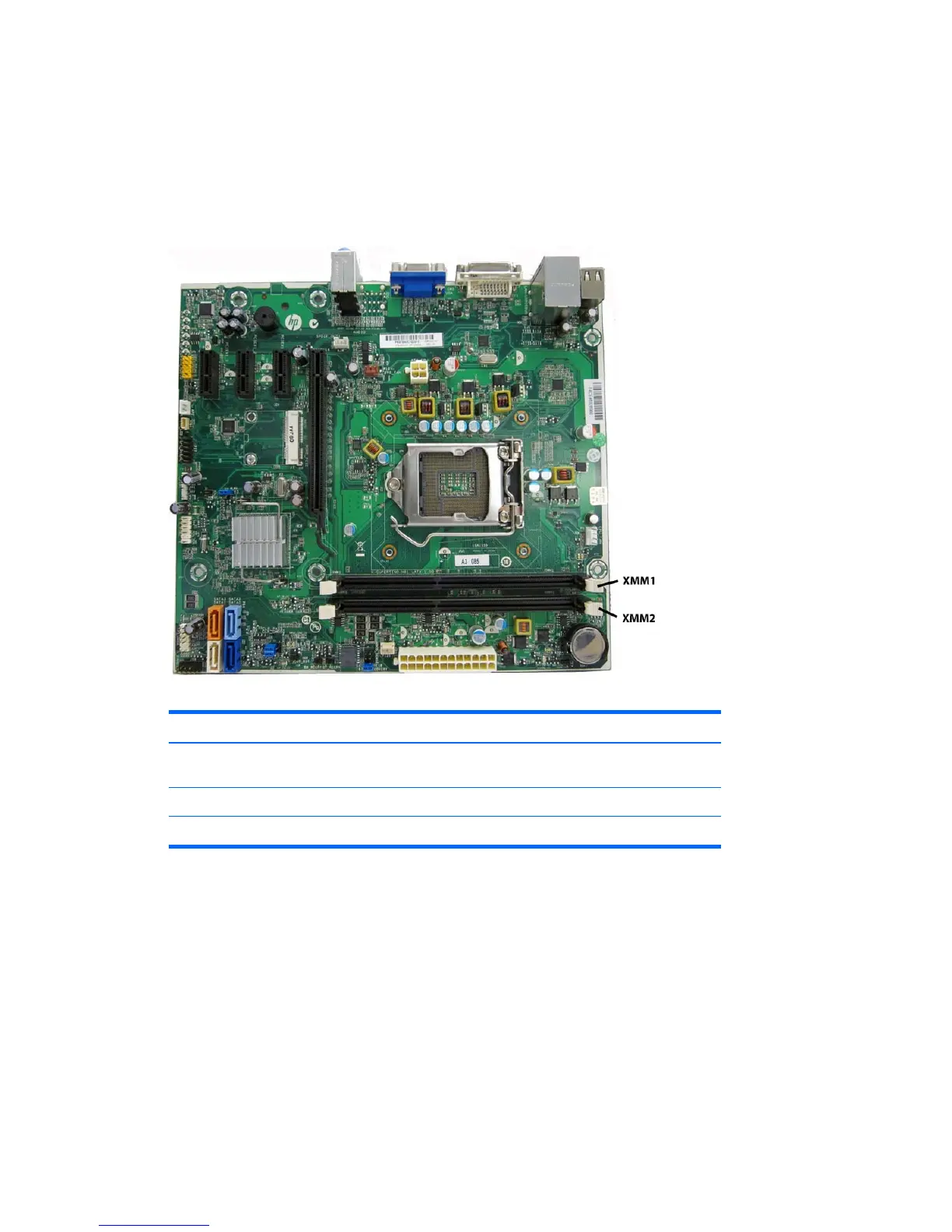

Figure 7-5 DIMM Socket Locations (model 3300 shown)
Table 7-1 DIMM Socket Locations
Item Description Socket Color Insertion Order
1 XMM1 socket, Channel A
(populate first)
Black 1
2 XMM2 socket, Channel A Black 2
NOTE: A DIMM must occupy the DIMM1 socket.
Memory 53
