System Board Drive Connections
Refer to the following illustration and table to identify the system board drive connectors.

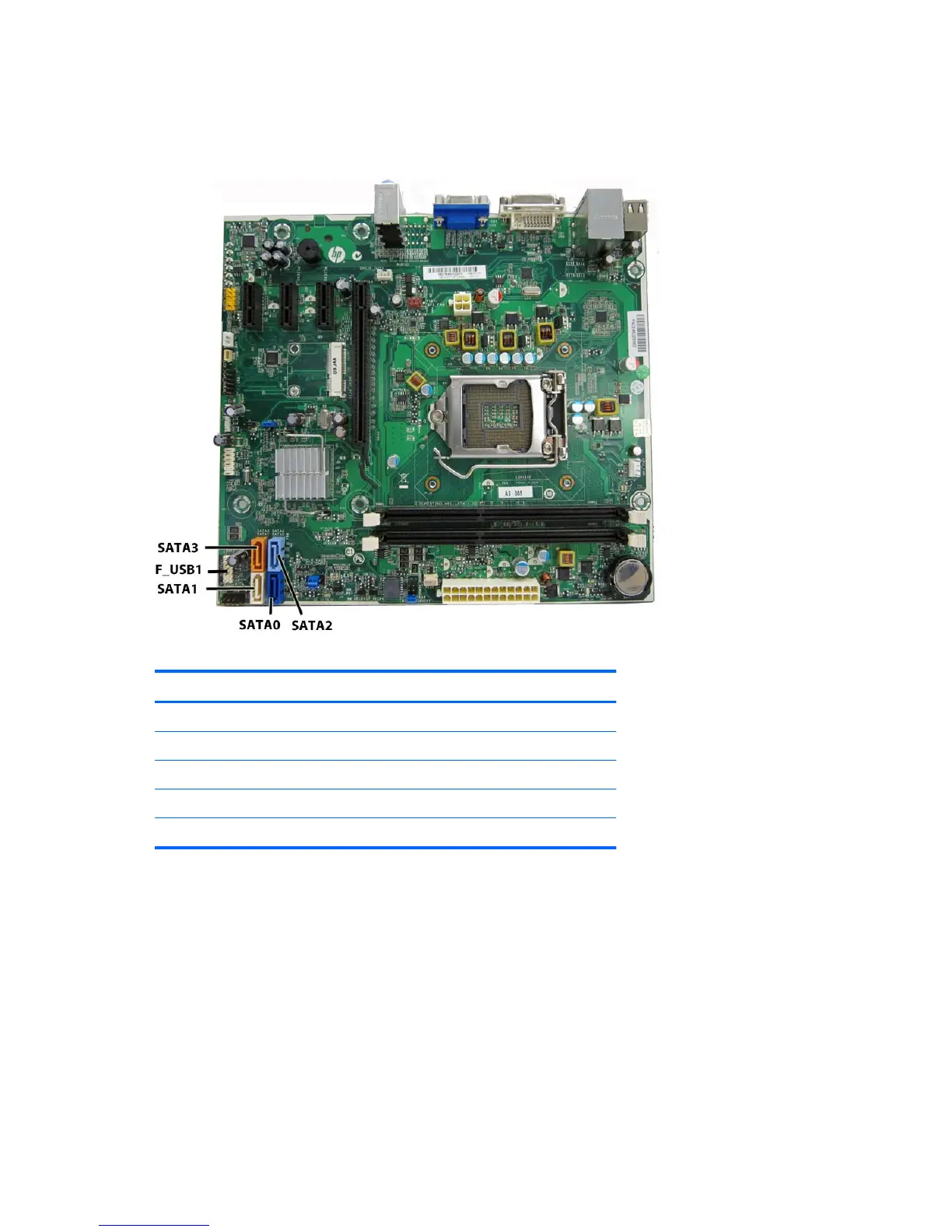

Figure 7-19 System Board Drive Connections
Table 7-4 System Board Drive Connections
System Board Connector System Board Label Color
SATA1 SATA1 dark blue
SATA2 SATA2 white
SATA3 SATA3 light blue
SATA4 SATA4 orange
Media Card Reader F_USB1 white
70 Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
