Note that the red connector and the small white connector is not used.

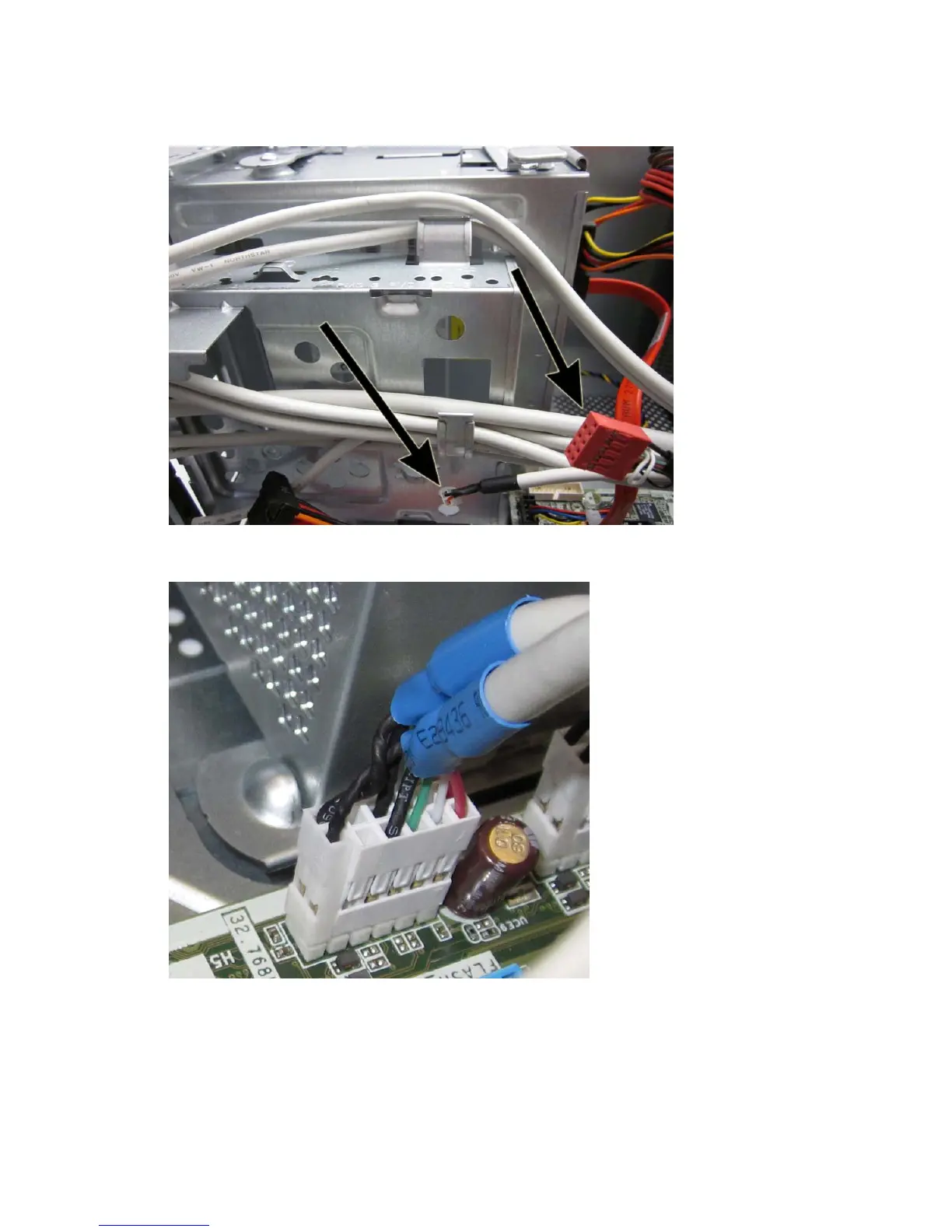

Figure 7-37 Unused cables
Note that dual cables connect to some system board connectors as shown in the following image.
Figure 7-38 Dual cable heads
Front I/O and USB Panel Housing Assembly 83
