6. Remove the screw (1) that secures the housing to the chassis, and then slide the housing up (2).

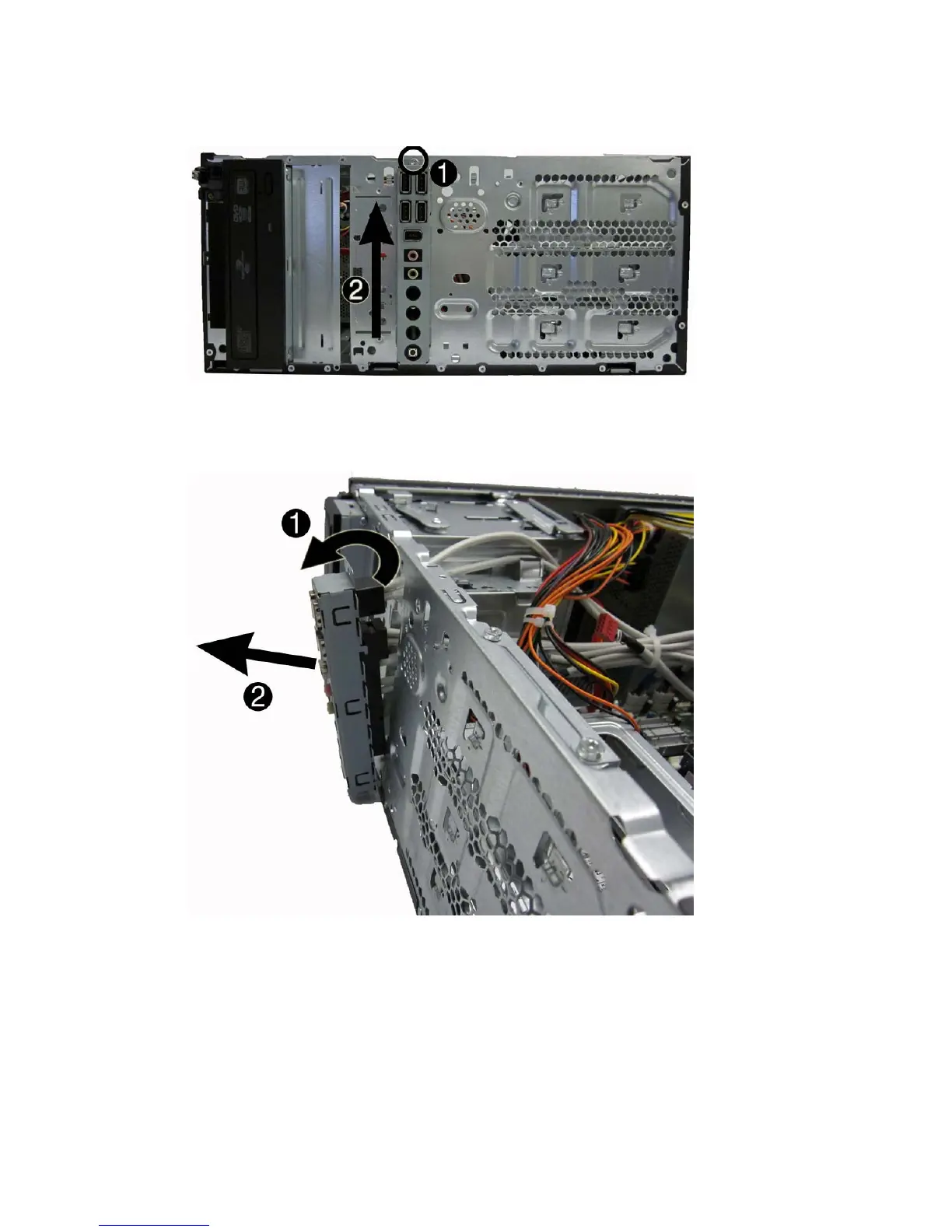

Figure 7-35 Front I/O assembly removal
7. Rotate the top of the assembly outward (1), and then pull the assembly away from the chassis
(2) while guiding the cables through the hole in the chassis.
Figure 7-36 Removing the front I/O assembly
To install the housing assembly, reverse the removal procedures.
82 Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
