5. Disconnect the power switch cable from the front USB assembly cable.

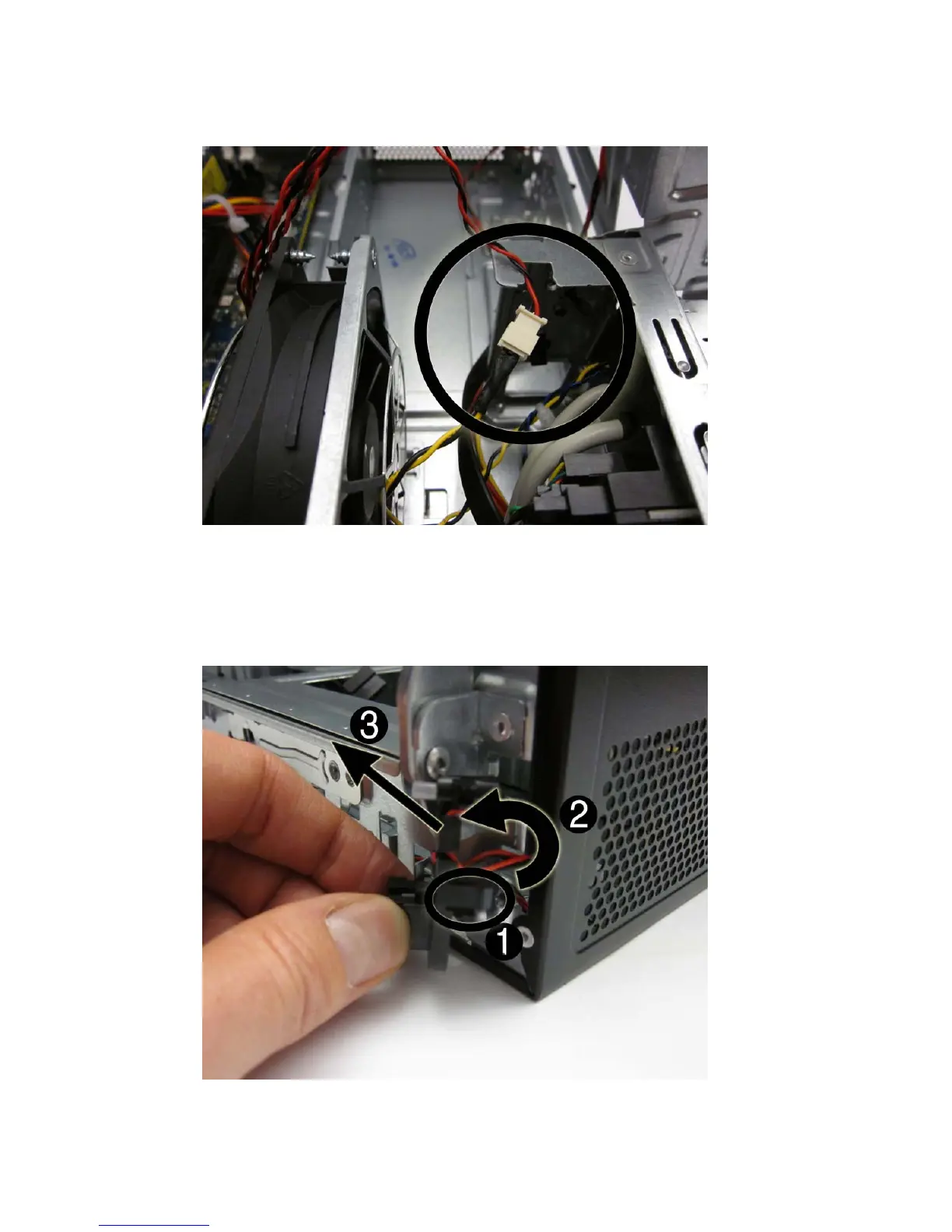

Figure 8-25 Disconnecting the power switch cable
6. From the outside, front of the computer, press the tab on the right side of the power switch (1) to
disengage it from the chassis.
7. Rotate the power switch right to left (2), and then remove it from the computer (3) while routing
the cable through the hole in the front of the chassis.
Figure 8-26 Removing the power switch
To install the power switch, reverse the removal procedure.
Power Switch 125
