HP Elite x2 G4 Tablet Service Manual

5. Thoroughly clean the thermal material from the surfaces of the heat sink and the system board
components each time the heat sink is removed. Replacement thermal material is included with the heat
sink and system board spare part kits.
IMPORTANT: Failure to remove and replace old thermal pads when removing and replacing the heat
sink can result in reduced thermal function.

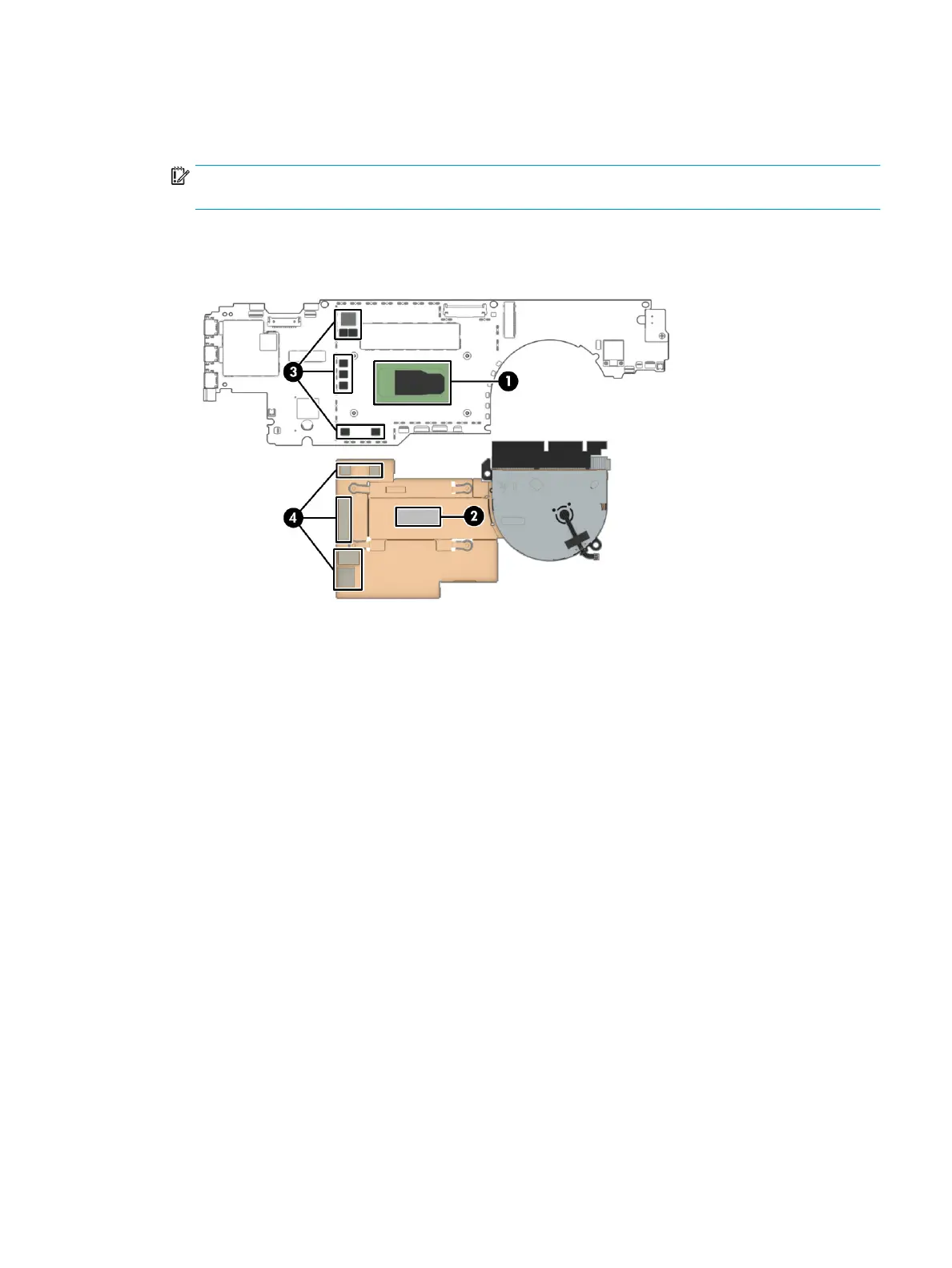

Thermal grease is used on the system board component shown by callout (1) and associated location on
the heat sink (2). Thermal pads are used on the system board (3) and associated locations on the heat
sink (4).
Reverse this procedure to replace the heat sink with fan.
Component replacement procedures 65

HP Elite x2 G4 Tablet Specifications

General

Operating System	Windows 10 Pro
Battery Life	Up to 10 hours
Graphics	Intel UHD Graphics 620
Camera	5MP front-facing, 8MP rear-facing
Processor	Intel Core i5 or i7 (8th Gen)
RAM	Up to 16GB LPDDR3
Storage	Up to 1TB PCIe NVMe SSD
Weight	0.82 kg (tablet only)
Ports	2 x USB-C, 1 x USB-A, 1 x headphone/microphone combo
Wireless	Bluetooth 5
Audio	Bang & Olufsen, dual speakers
Battery	47 Wh Li-ion polymer
Dimensions	0.35 in
