HP Elite x2 G4 Tablet Service Manual

Volume board
Table 6-11 Volume board description and part number
Description Spare part number
Volume board L67419-001
Before removing the volume board, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 35).
2. Remove the following components:
a. Display panel (see Display panel on page 38)
b. Battery (see Battery on page 42)
c. Left speaker (see Speakers with antennas on page 52)
Remove the volume board:

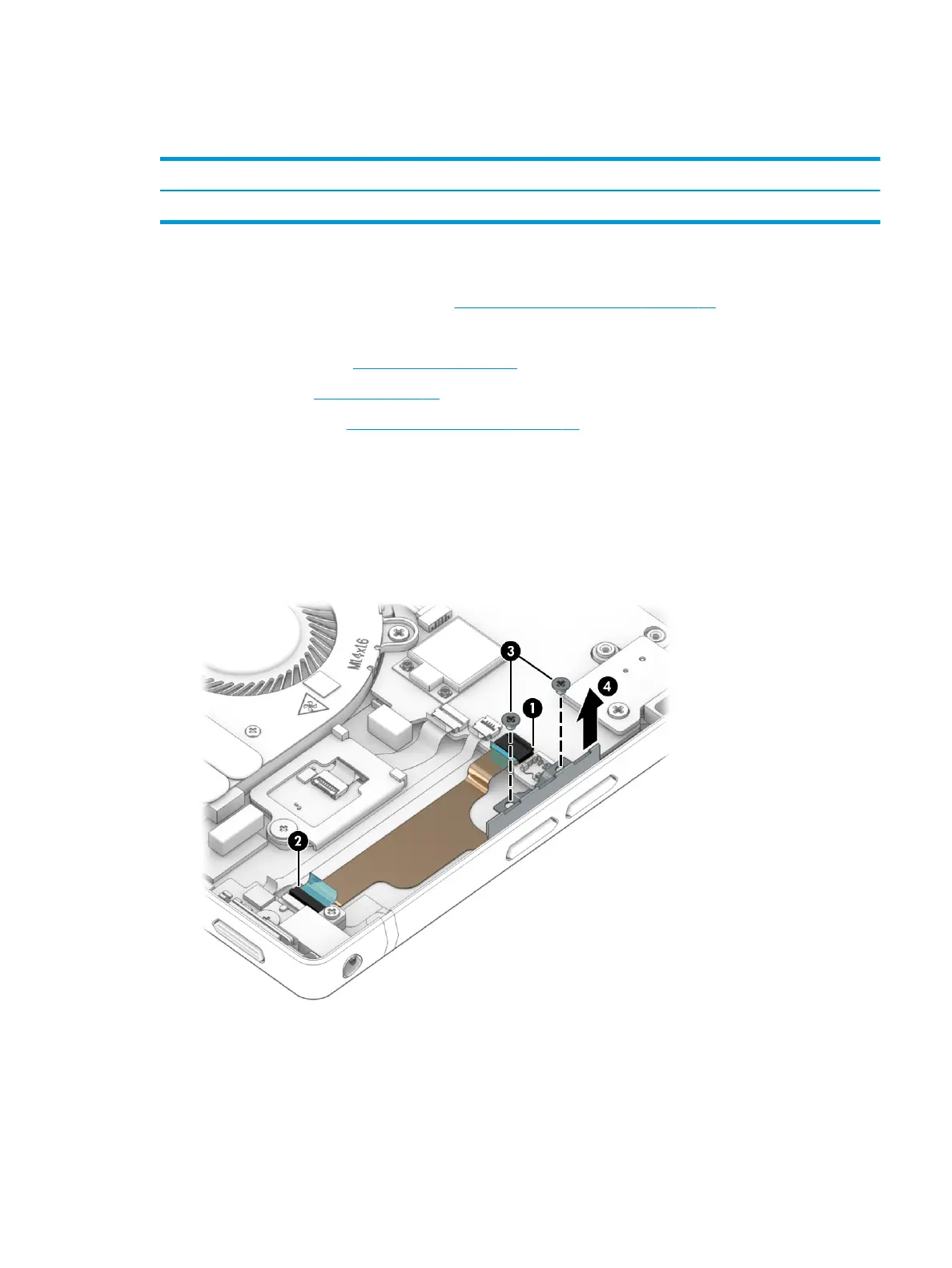

1. Disconnect the cable from the system board (1).
2. Disconnect the cable from the power button board (2).
3. Remove the two Phillips M1.6 × 2.0 screws (3) that secure the assembly to the computer.
4. Remove the assembly from the computer (4).
Reverse this procedure to replace the volume board.
Component replacement procedures 59
