Solid-state drive
Table 6-3 Solid-state drive descriptions and part numbers
Description Spare part number
2 TB, PCIe, TLC L67401-001
1 TB, PCIe, TLC L67397-001
512 GB, PCIe, TLC + 32 GB Optane memory L67405-001
512 GB, SATA-3, self-encrypting drive (SED), Opal 2, TLC L674021-001
512 GB, PCIe, TLC L67403-001
512 GB, PCIe L67404-001
256 GB, SATA-3, self-encrypting drive (SED), Opal 2, TLC L67398-001
256 GB, PCIe, TLC L67399-001
256 GB, PCIe L67400-001
128 GB, SATA-3, TLC L67398-001
Before removing the solid-state drive, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 35).
2. Remove the following components:
a. Display panel (see Display panel on page 38)
b. Disconnect the battery cable (see Battery on page 42)
Remove the solid-state drive:

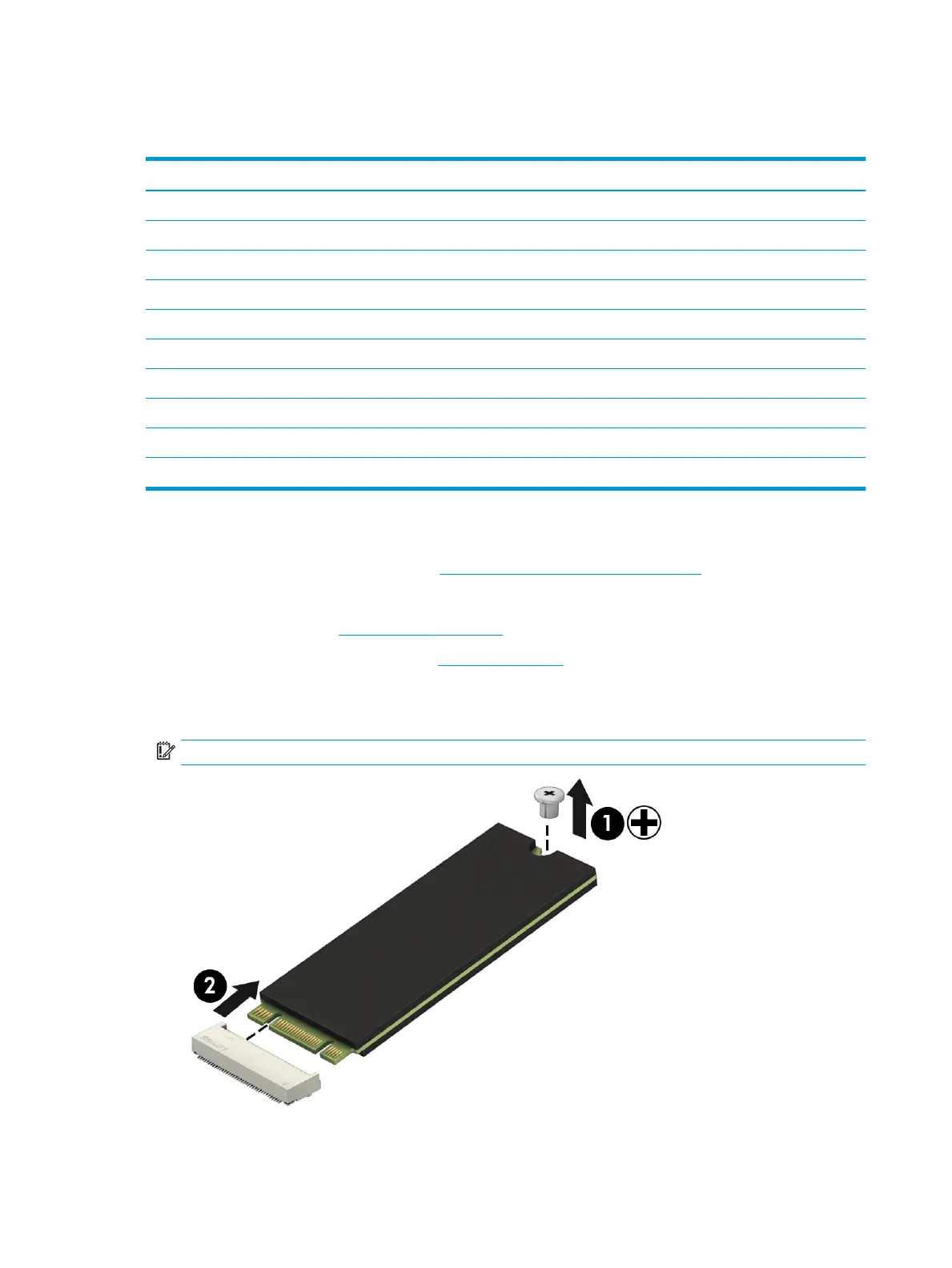

▲ Remove the Phillips M1.6 × 1.6 screw (1), and then remove the solid-state drive (2).
IMPORTANT: Be sure to use the correct size screwdriver to avoid stripping the screw.
Reverse this procedure to replace the solid-state drive.
44 Chapter 6 Removal and replacement procedures for authorized service provider parts
