POGO connector
Table 6-7 POGO connector description and part number
Description Spare part number
POGO connector and cable L67422-001
1. Prepare the computer for disassembly (Preparation for disassembly on page 35).
2. Remove the following components:
a. Display panel (see Display panel on page 38)
b. Battery (see Battery on page 42)

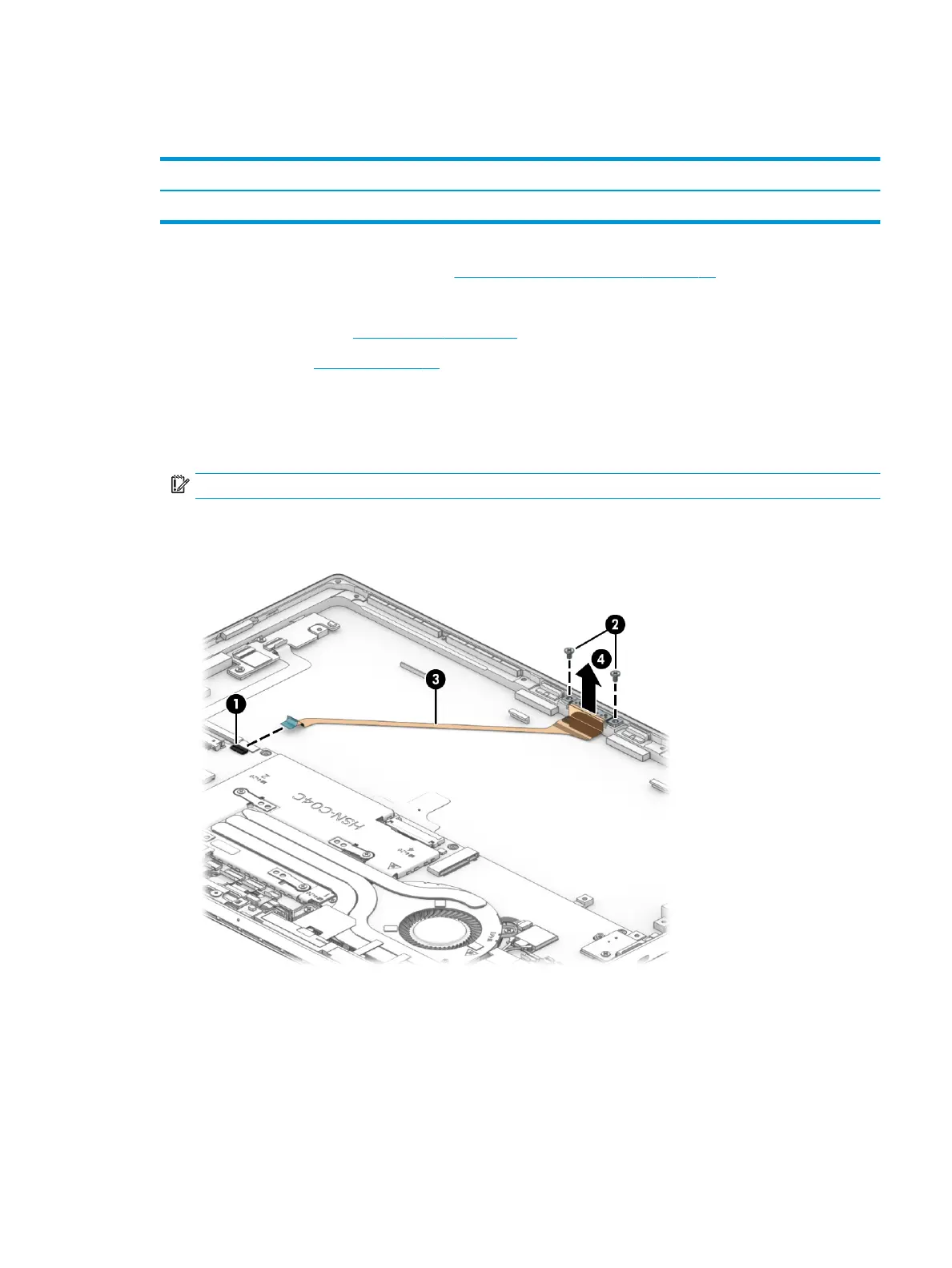

Remove the POGO connector:
1. Disconnect the POGO cable from the ZIF connector on the system board (1).
2. Remove the two Phillips M1.6 × 2.4 screws (2).
IMPORTANT: Be sure to use the correct size screwdriver to avoid stripping the screw.
3. Peel the cable up to disengage the adhesive that secures it to the computer (3), and then remove the
POGO connector from the computer (4).
Reverse this procedure to replace the POGO connector.
Component replacement procedures 49
