HP Elite x2 G4 Tablet Service Manual

Camera module
Table 6-8 Camera modules and cables descriptions and part numbers
Description Spare part number
IR camera (2 MP) L67412-001
HD camera (8 MP) L67411-001
Microphone cable L67421-001
IR LED cable L67424-001
Before removing the camera module, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 35).
2. Remove the following components:
a. Display panel (see Display panel on page 38)
b. Battery (see Battery on page 42)

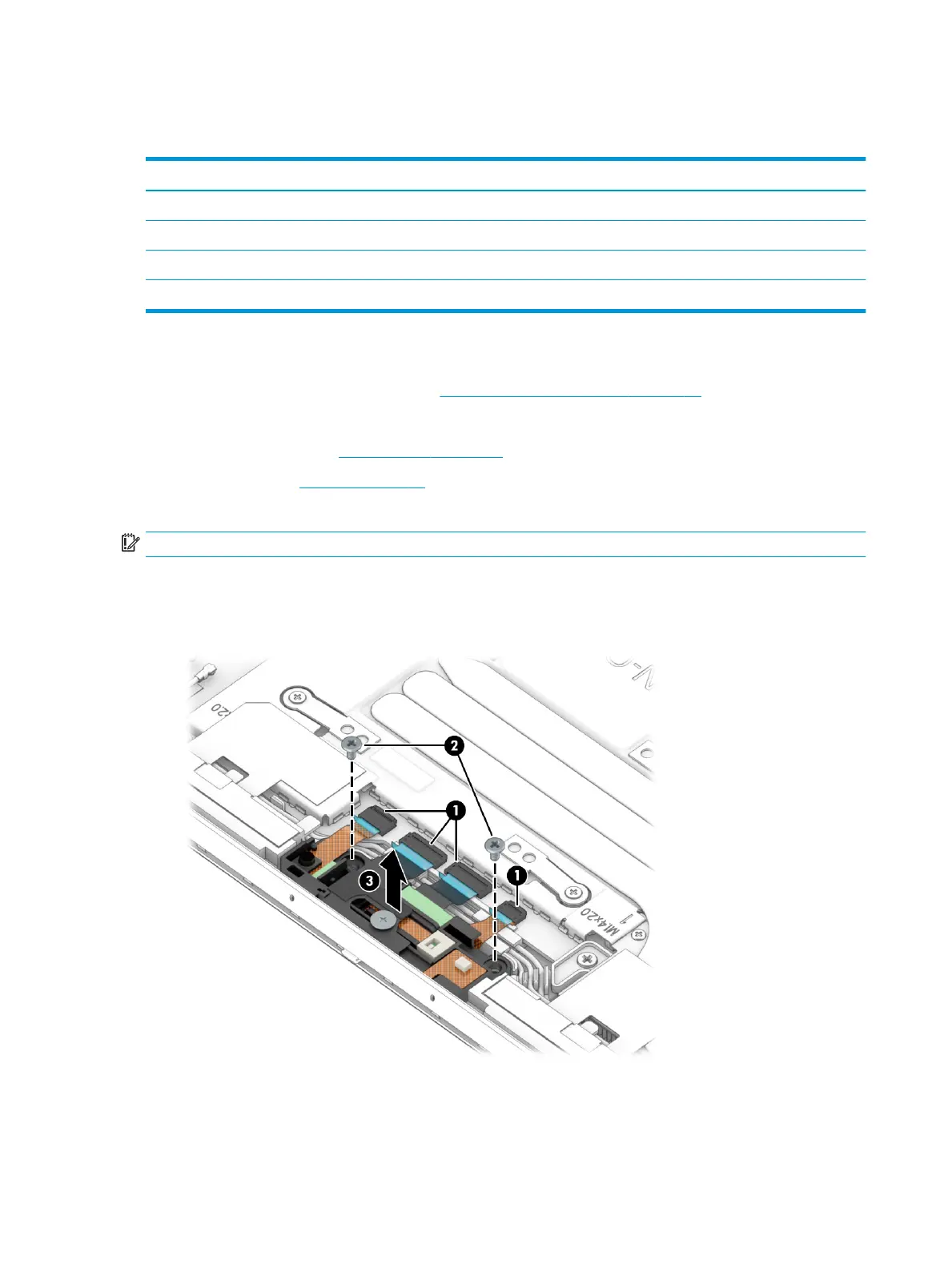

Remove the camera:
IMPORTANT: Use care to prevent damaging the zero-insertion force (ZIF) connector and ribbon cable.
1. Disconnect the four cables from the ZIF connectors on the camera module (1).
2. Using a Phillips #0 screwdriver, remove the two Phillips M1.6 × 2.4 screws (2) that secure the module to
the computer, and then remove the module from the computer (3).
3. If you need to remove the IR LED cable or the microphone cable from the camera module:
a. IR LED cable: Pull the cable straight up and o the camera module (1).
50 Chapter 6 Removal and replacement procedures for authorized service provider parts
