HP Elite x2 G4 Tablet Service Manual

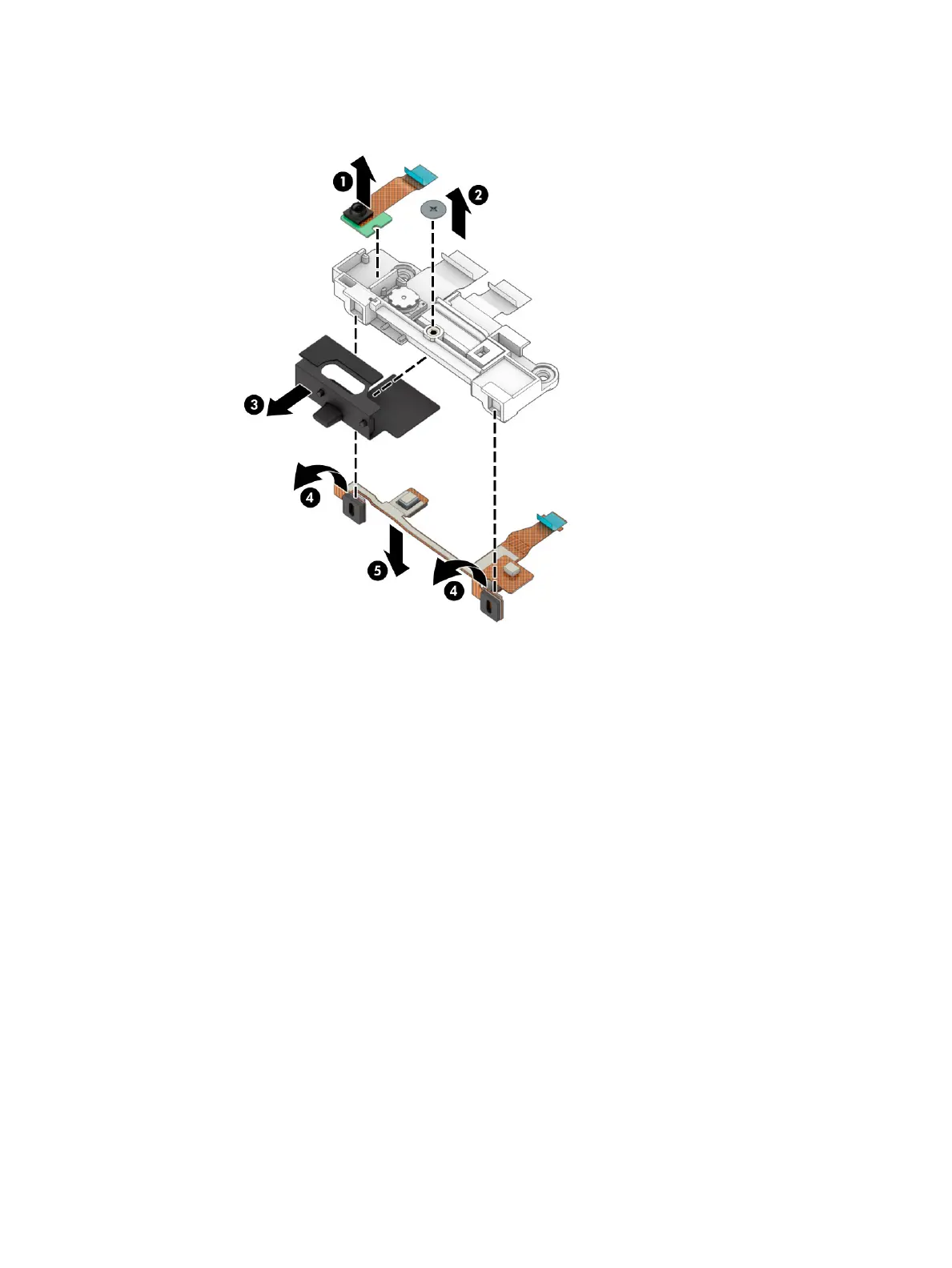

b. Microphone cable: Remove the screw (2), slide the privacy cover o the module (3), and then
rotate the microphone module (4) to remove it from the bottom of the camera module (5)
Reverse this procedure to replace the camera module and its components.
Component replacement procedures 51

HP Elite x2 G4 Tablet Specifications

General

Operating System	Windows 10 Pro
Battery Life	Up to 10 hours
Graphics	Intel UHD Graphics 620
Camera	5MP front-facing, 8MP rear-facing
Processor	Intel Core i5 or i7 (8th Gen)
RAM	Up to 16GB LPDDR3
Storage	Up to 1TB PCIe NVMe SSD
Weight	0.82 kg (tablet only)
Ports	2 x USB-C, 1 x USB-A, 1 x headphone/microphone combo
Wireless	Bluetooth 5
Audio	Bang & Olufsen, dual speakers
Battery	47 Wh Li-ion polymer
Dimensions	0.35 in
