2. Detach the NFC module (2) from the top cover/keyboard. The NFC module is attached to the top
cover/keyboard with double-sided adhesive.
3. Remove the NFC module.
To install the NFC module, reverse this procedure.
Touchpad cable
To remove the touchpad cable, use this procedure and illustration.
NOTE: The touchpad cable is included in the Cable Kit, spare part number N09040-001.
Before removing the touchpad cable, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 38).
2. Remove the bottom cover (see Bottom cover on page 38).
3. Remove the battery (see Battery on page 40).

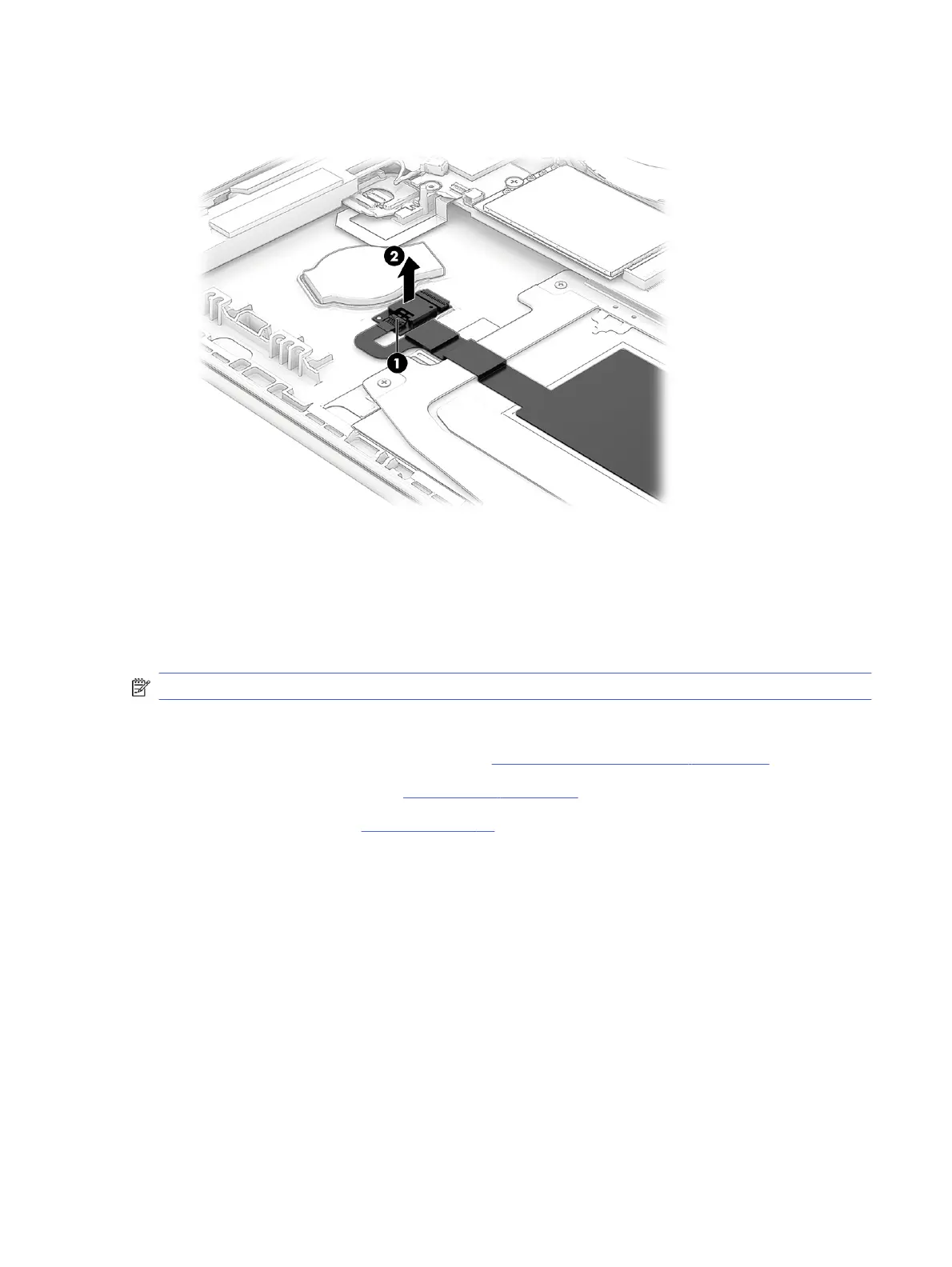

Remove the touchpad cable:
1. Release the ZIF connector (1) the touchpad cable is connected to, and then disconnect the
touchpad cable from the system board.
2. Release the ZIF connector (2) the touchpad cable is connected to, and then disconnect the
touchpad cable from the touchpad.
Touchpad cable
65
