2.

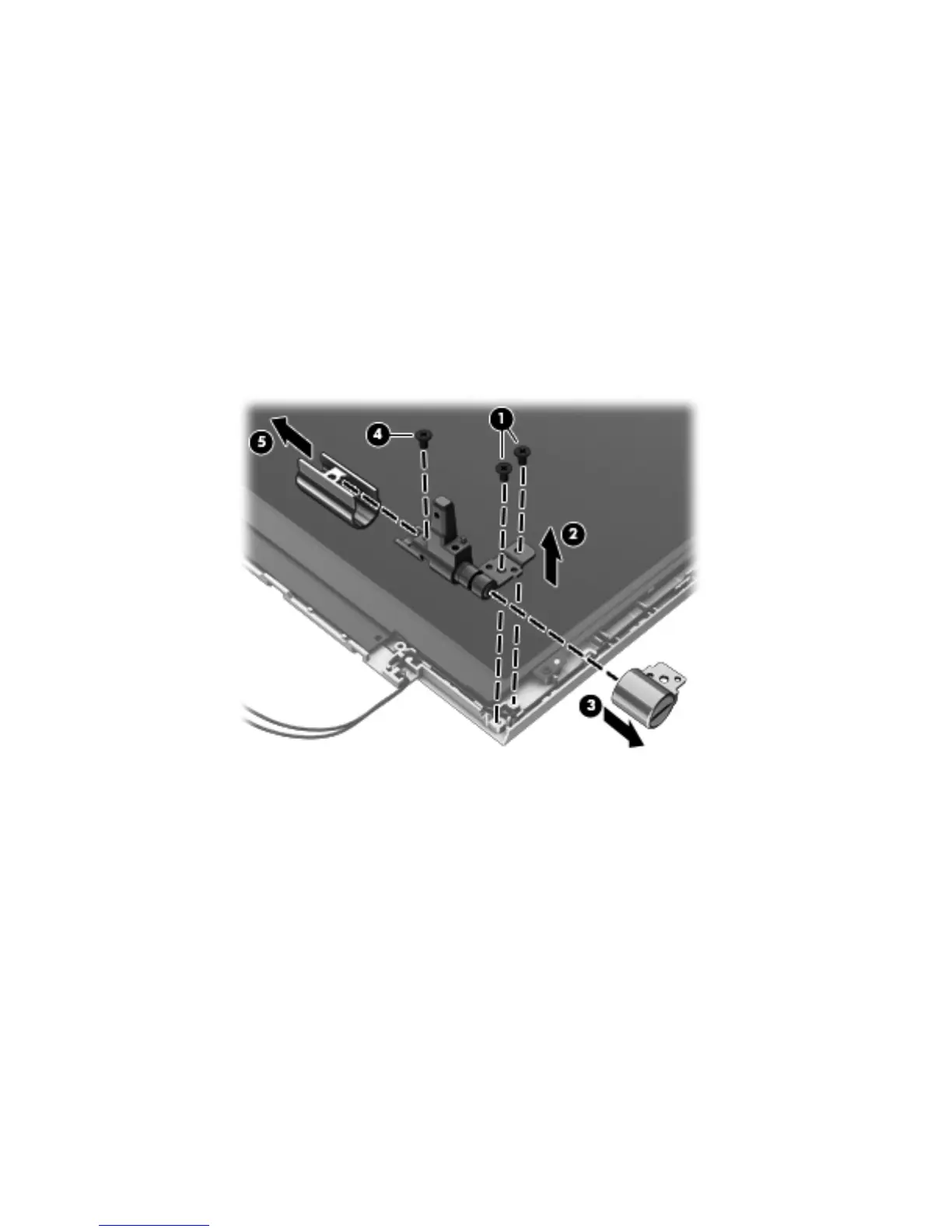

If it is necessary to replace the display hinges, display hinge covers, and/or display hinge caps:
a. Remove the two Phillips PM2.0×4.2 screws (1) that secure the display hinge to the
display enclosure.
b. Remove the display hinge (2) from the display enclosure.
c. Remove the display hinge cap (3) from the display hinge.
d. Remove the Phillips PM2.0×4.2 screw (4) that secures the display hinge cover to the
display hinge.
e. Remove the display hinge cover (5) from the display hinge.
The display hinges, display hinge caps, and display hinge covers are included in the Display
Hinge Cover Kit, spare part number 693310-001.
