3.
If it is necessary to replace the display panel:

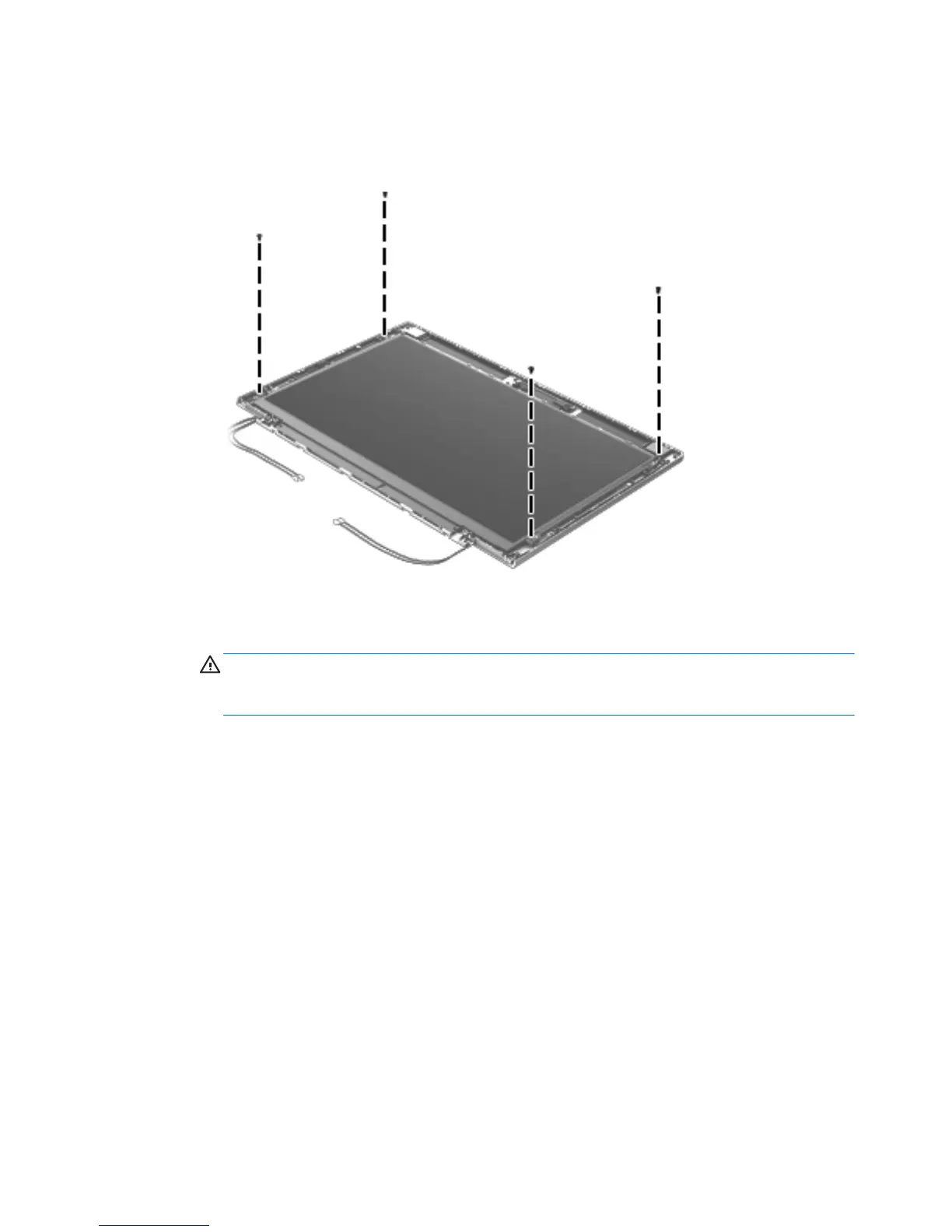

a. Remove the four Phillips PM2.0×4.2 screws (1) that secure the display panel to the
display enclosure.
b.
Release the display panel cable (1) from the clips (2) and routing channel built into the
bottom edge of the display enclosure.
CAUTION: Before turning the display panel upside down, make sure the work surface is
clear of tools, screws, and any other foreign objects. Failure to follow this caution can result
in damage to the display panel.
c. Lift the top edge of the display panel (3) and swing it up and forward until it rests upside
down in front of the display enclosure.
d.
Release the adhesive support strip (4) that secures the display panel cable to the
display panel.
e. Release the support bar (5) that secures the display panel cable to the display panel.
100 Chapter 4 Removal and replacement procedures
