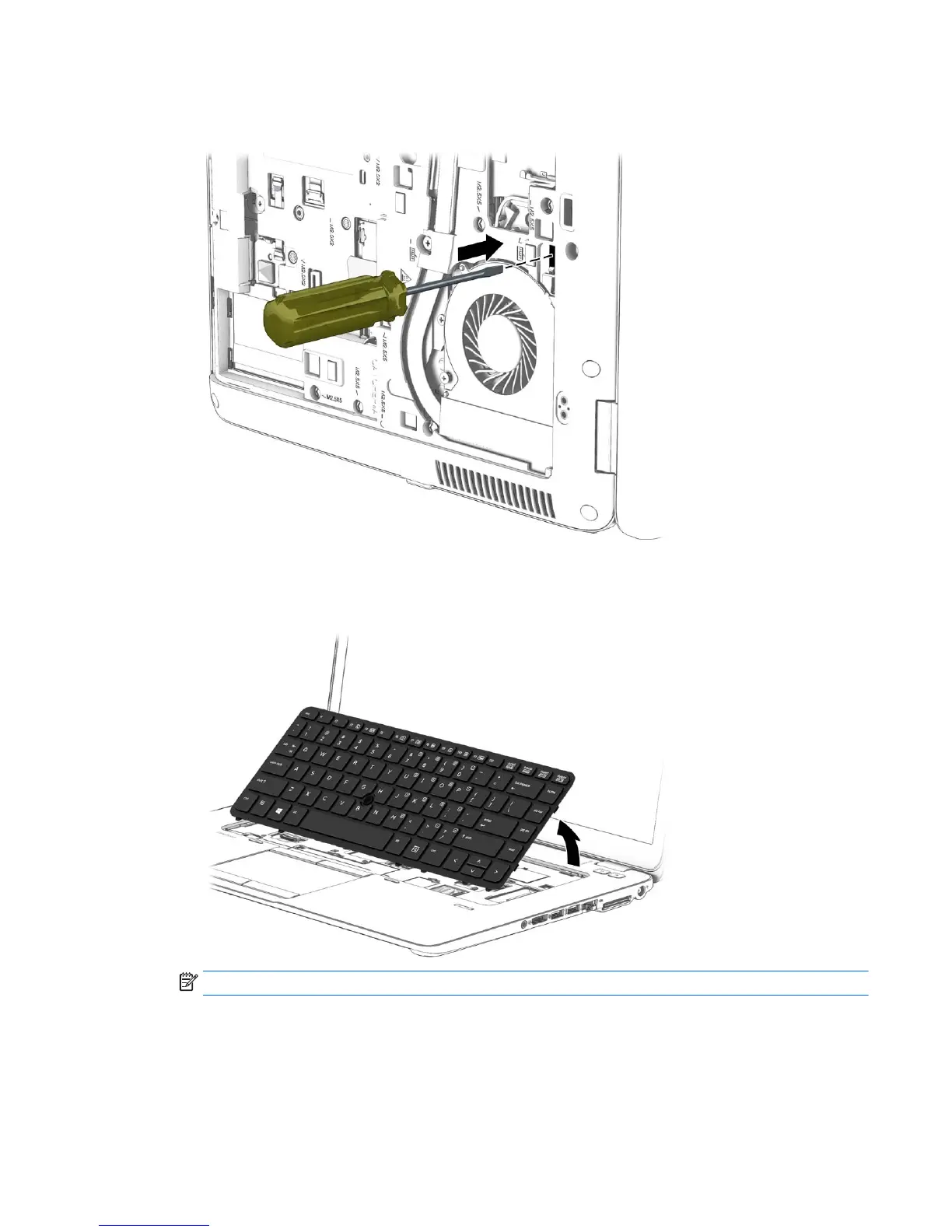

3. Insert a screw driver or similar thin tool into the keyboard release hole, and then press on the back of
the keyboard until the keyboard disengages from the computer.
4. Position the computer right-side up with the front toward you.
5. Lift the rear edge of the keyboard upward.
NOTE: Continue to step 7 for a keyboard with a backlight.
6. To remove the keyboard from models without a backlight:
a. Swing the keyboard up and forward (1) until it rests upside down on the palm rest.
b. Disconnect the main keyboard cable from the zero insertion force (ZIF) connector (2) on the
system board.
ENWW Component replacement procedures 59
