c. Disconnect the pointing stick cable from the zero insertion force (ZIF) connector (3) on the system
board.
d. Remove the keyboard (4).

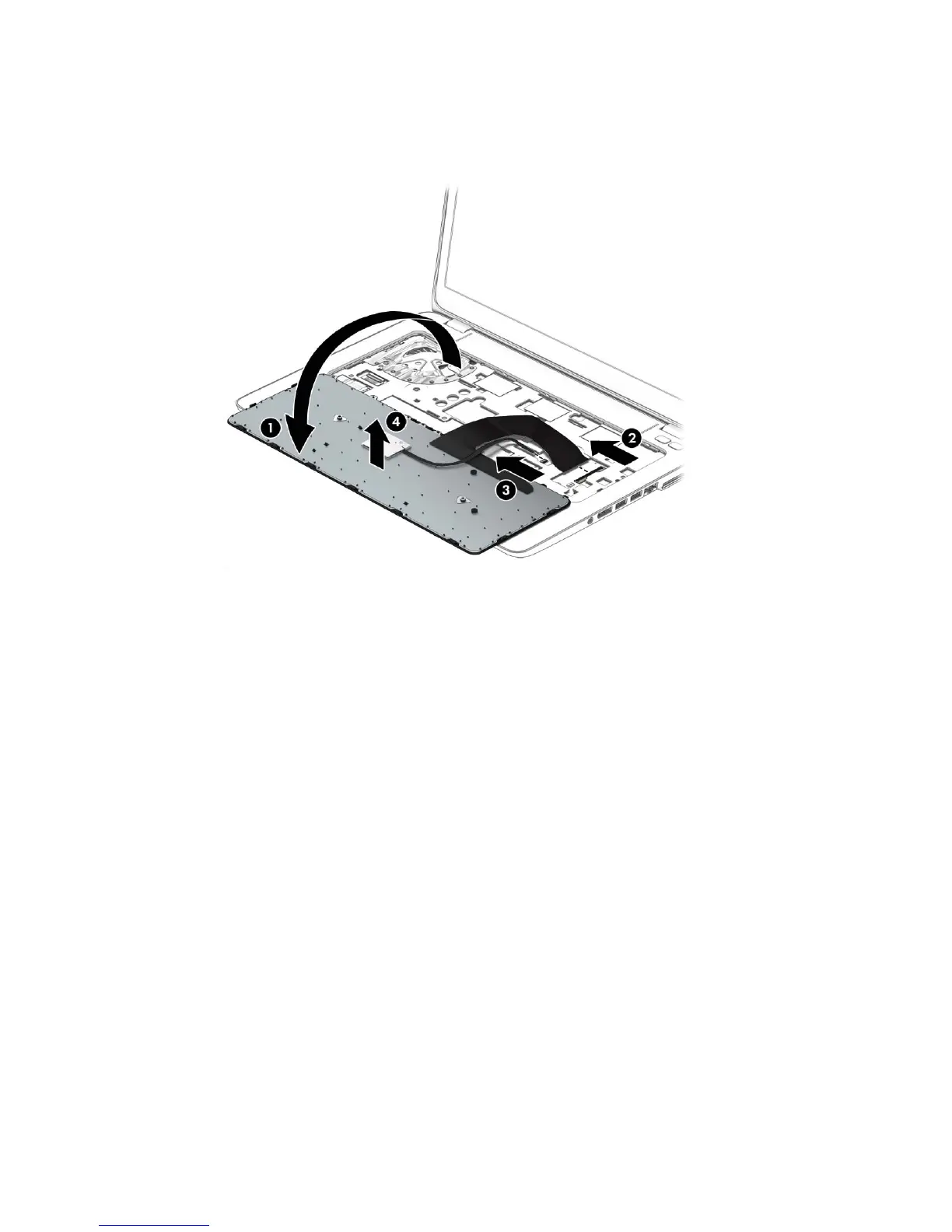

7. To remove the keyboard from models with a backlight:
a. Swing the keyboard up and forward (1) until it rests upside down on the palm rest.
b. Disconnect the main keyboard cable from the zero insertion force (ZIF) connector (2) on the
system board.
c. Disconnect the pointing stick cable from the zero insertion force (ZIF) connector (3) on the system
board.
d. Disconnect the backlight cable from the zero insertion force (ZIF) connector (4) on the system
board.
60 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts ENWW
