HP EliteOne 800 G1 Service Manual

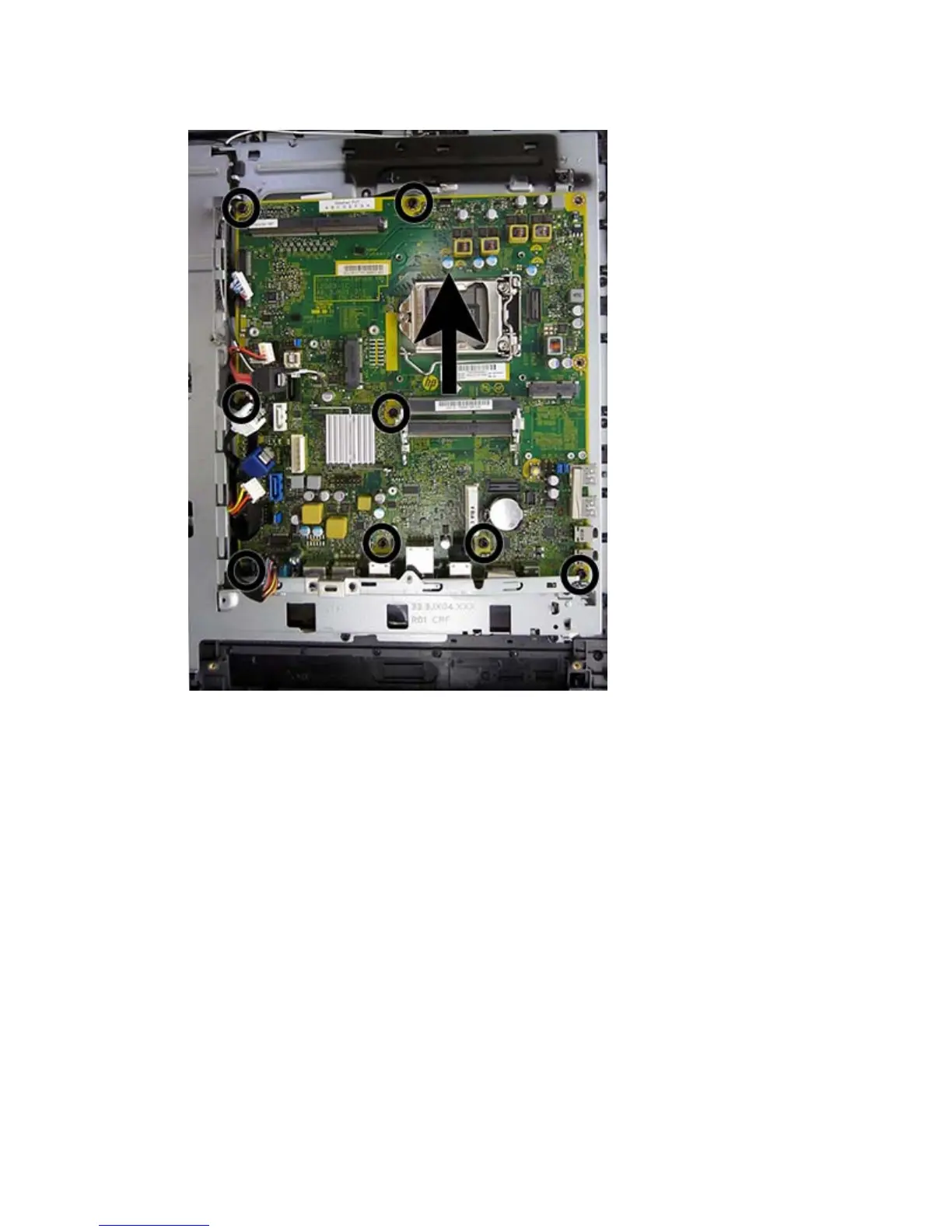

16. Slide the system board toward the top of the computer, and then lift it out of the computer.
To install the system board, reverse the removal procedures.
Replace the thermal pad below the system board.
Updating the display panel manufacturer setting in BIOS
After replacing the system board, make sure the display panel manufacturer setting is correct in BIOS. If
the incorrect panel manufacturer is set in BIOS, the display panel may function incorrectly.
The display panel manufacturer is identified on the jumper setting label on the base pan.
After confirming the manufacturer of the display panel on the computer, go into BIOS and make sure
the LVDS Panel Select setting is correct.
To update BIOS with display panel model information:
1. Boot the computer.
2. Repeatedly press F10 when the monitor light turns green to access the F10 Setup utility.
90 Chapter 5 Removal and Replacement Procedures All-in One (AIO) Chassis

HP EliteOne 800 G1 Specifications

General

RAM	DDR3
Memory	DDR3
Graphics	Intel HD Graphics 4600
Ports	4x USB 3.0, DisplayPort, VGA, RJ-45
Wireless	802.11a/b/g/n Wi-Fi, Bluetooth 4.0
Dimensions	56.09 x 5.28 x 38.28 cm (22.08 x 2.08 x 15.07 in)
Processor	Intel Core i3/i5/i7 (4th Gen)
Weight	8.4 kg
