HP EliteOne 800 G1 Service Manual

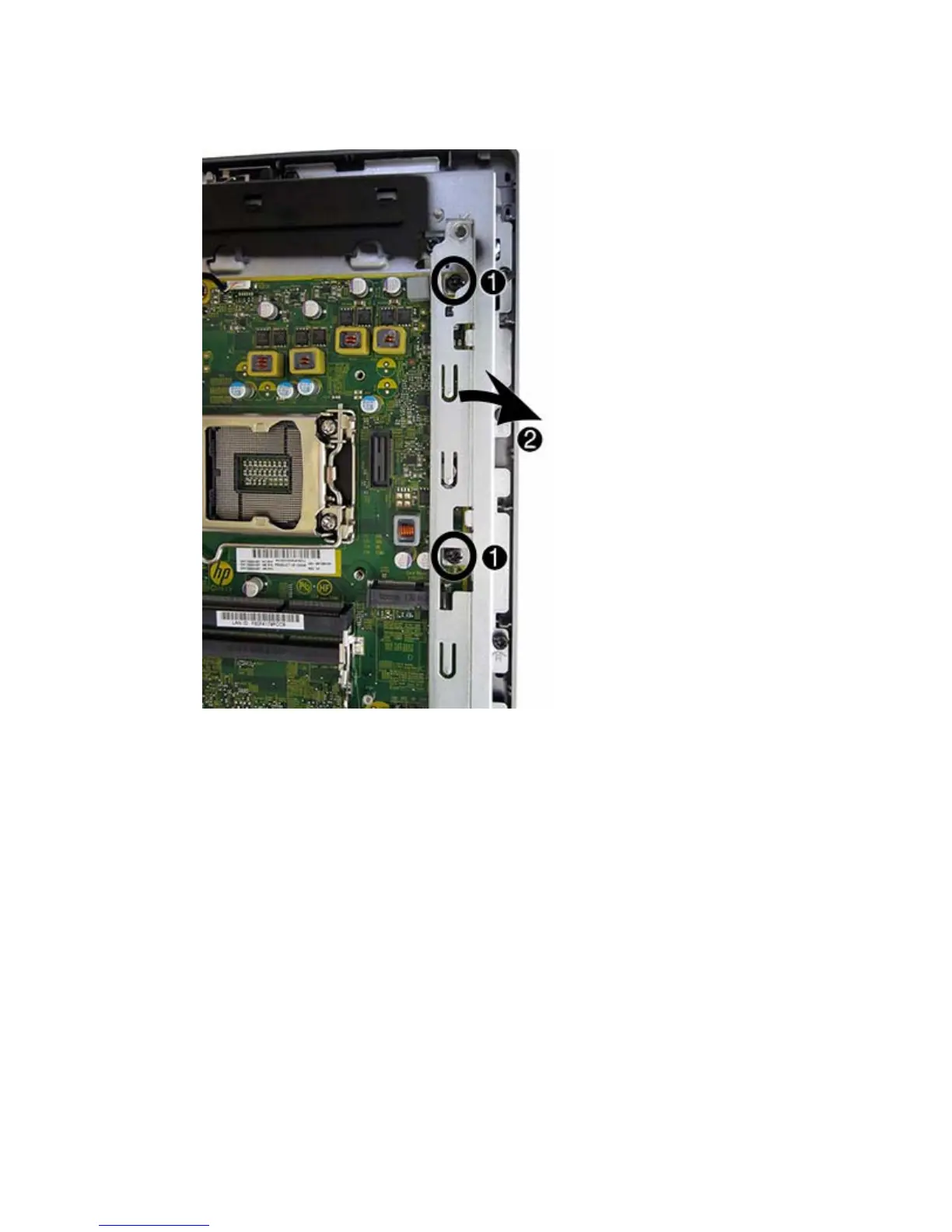

13. Remove the side bracket by removing the two Torx screws (1), and then rotating the bracket to
remove it (2).
14. Remove the eight remaining Torx screws that secure the system board to the computer.
15. Position the cables on the side of the board out of the way so you can freely slide the board out of
the computer.
System board
89

HP EliteOne 800 G1 Specifications

General

RAM	DDR3
Memory	DDR3
Graphics	Intel HD Graphics 4600
Ports	4x USB 3.0, DisplayPort, VGA, RJ-45
Wireless	802.11a/b/g/n Wi-Fi, Bluetooth 4.0
Dimensions	56.09 x 5.28 x 38.28 cm (22.08 x 2.08 x 15.07 in)
Processor	Intel Core i3/i5/i7 (4th Gen)
Weight	8.4 kg
