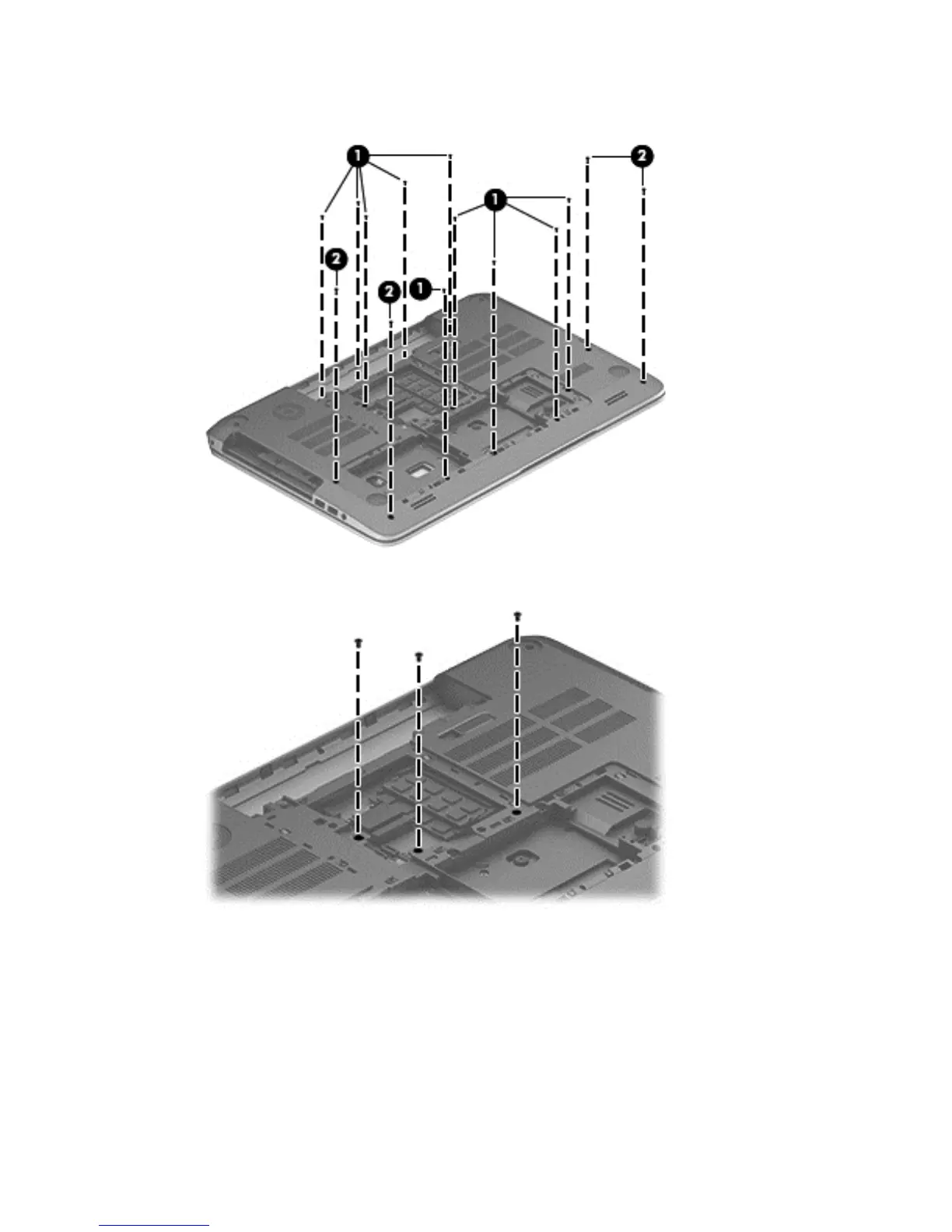

2. Remove 10 2.5x4-MM screws (1), and then remove 4 screws from the left and right sides of the
base enclosure (2).
3. Remove 3 2x5-MM screws around the memory module area.
Component replacement procedures 51
