HP ENVY Notebook - Page 62

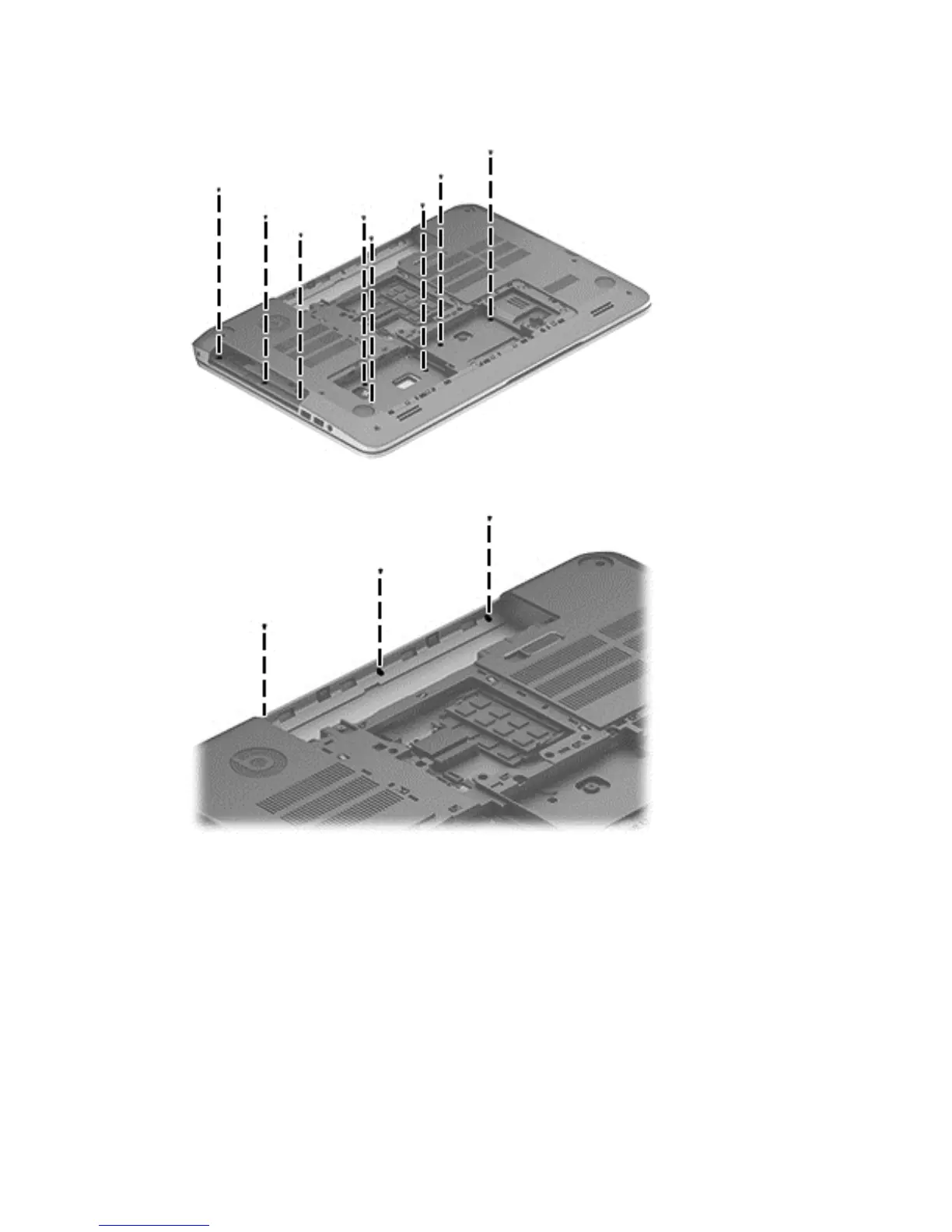

4. Remove 3 2x3-MM screws from the optical drive bay, and then remove 5 2x3-MM screws from
the hard drive bays.
5. Remove 3 1.5x2-MM screws from the battery bay.
52 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
