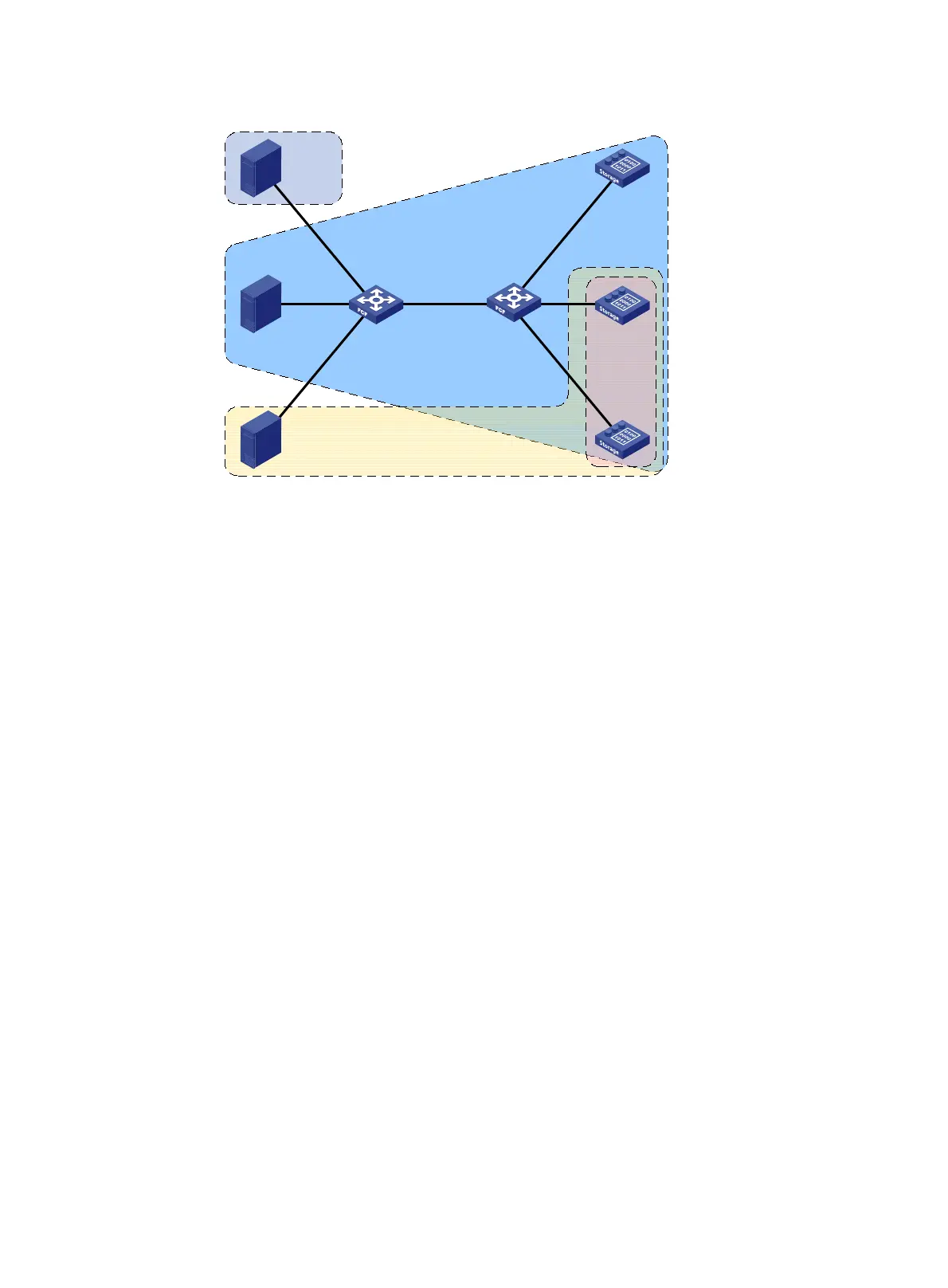

Figure 26 Network diagram
Requirements analysis
To meet the network requirements, divide VSAN 1 into three zones as follows:
• Assign Server A to Zone 1.
• Assign Server B and Disks A, B, and C to Zone 2.
• Assign Server C and Disks B and C to Zone 3.
• Enable Pairwise for Zone 2, configure Server B as an initiator, and configure Disks A, B, and C as
targets.
• Enable Pairwise for Zone 3, configure Server C as an initiator, and configure Disks B and C as
targets.
• Create zone alias Alias 1, which contains Disks B and C, to simplify the configuration.
• Create zone set Zoneset 1, which contains Zones 1, 2, and 3, and activate it.
Configuration procedure
This section describes only FC zone configurations on Switch A. You do not need to configure FC zones
on Switch B.
# Configure the switch to operate in advanced mode. (Skip this step if the switch is operating in
advanced mode.)
<SwitchA> system-view
[SwitchA] system-working-mode AdvancedBridge
Do you want to change the system working mode? [Y/N]:y
The system working mode is changed, please save the configuration and reboot the
system to make it effective.
# Save the configuration.
[SwitchA] save
The current configuration will be written to the device. Are you sure? [Y/N]:y
PWWN:
11:22:33:44:55:66:77:88
(FC_ID:020006)
FC_ID:
010001
FC_ID:
010002
FC_ID:
010003
FC_ID:
020004
PWWN:
22:33:44:55:66:77:88:99
(FC_ID:020005)
Switch A Switch B
Server A
Server B
Server C
Disk A
Disk B
Disk C
Zone 1
Zone 2
Zone 3
Alias 1
