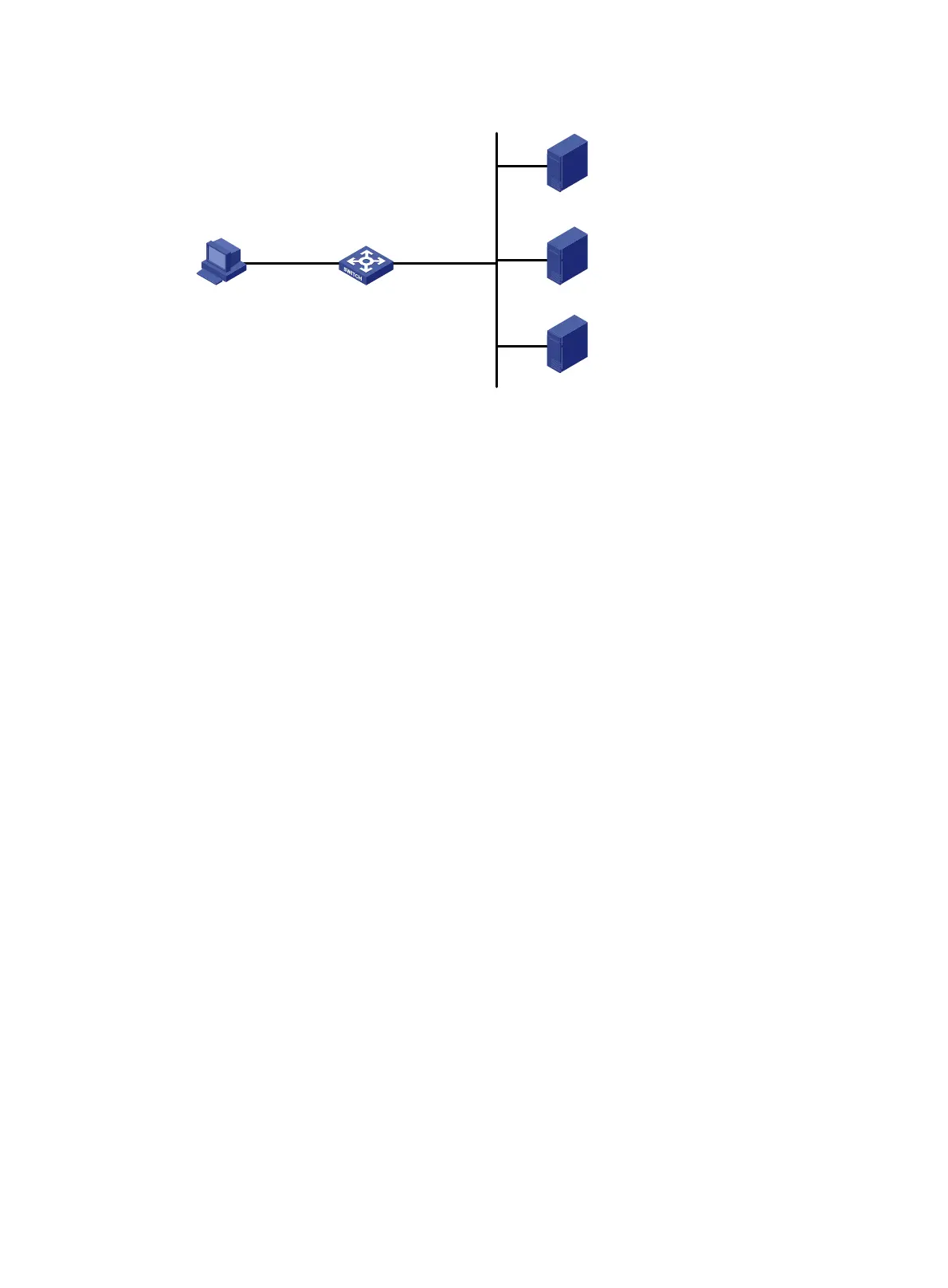

Figure 51 Network diagram
Configuration prerequisites and guidelines
• Configure IP addresses for the switch and servers as shown in Figure 51 and make sure the host,
switch, and servers can reach each other.
• Configure the RADIUS server properly to provide authentication and accounting functions.
• For re-DHCP portal authentication, configure a public address pool (20.20.20.0/24) and a private
address pool (10.0.0.0/24) on the DHCP server. (Details not shown.)
• For re-DHCP portal authentication:
{ The switch must be configured as a DHCP relay agent.
{ The portal-enabled interface must be configured with a primary IP address (a public IP address)
and a secondary IP address (a private IP address).
For information about DHCP relay agent configuration, see Layer 3—IP Services Configuration
Guide.
• Make sure the IP address of the portal device added on the portal server is the public IP address
(20.20.20.1) of the switch's interface connecting the host. The private IP address range for the IP
address group associated with the portal device is the private subnet 10.0.0.0/24 where the host
resides. The public IP address range for the IP address group is the public subnet 20.20.20.0/24.
Configuration procedure
Perform the following tasks on the switch.
1. Configure a RADIUS scheme:
# Create a RADIUS scheme named rs1 and enter its view.
<Switch> system-view
[Switch] radius scheme rs1
# Specify the primary authentication server and primary accounting server, and configure the keys
for communication with the servers.
[Switch-radius-rs1] primary authentication 192.168.0.113
[Switch-radius-rs1] primary accounting 192.168.0.113
[Switch-radius-rs1] key authentication simple radius
[Switch-radius-rs1] key accounting simple radius
# Exclude the ISP domain name from the username sent to the RADIUS server.
[Switch-radius-rs1] user-name-format without-domain
