HP FlexFabric 5700 series User Manual

381

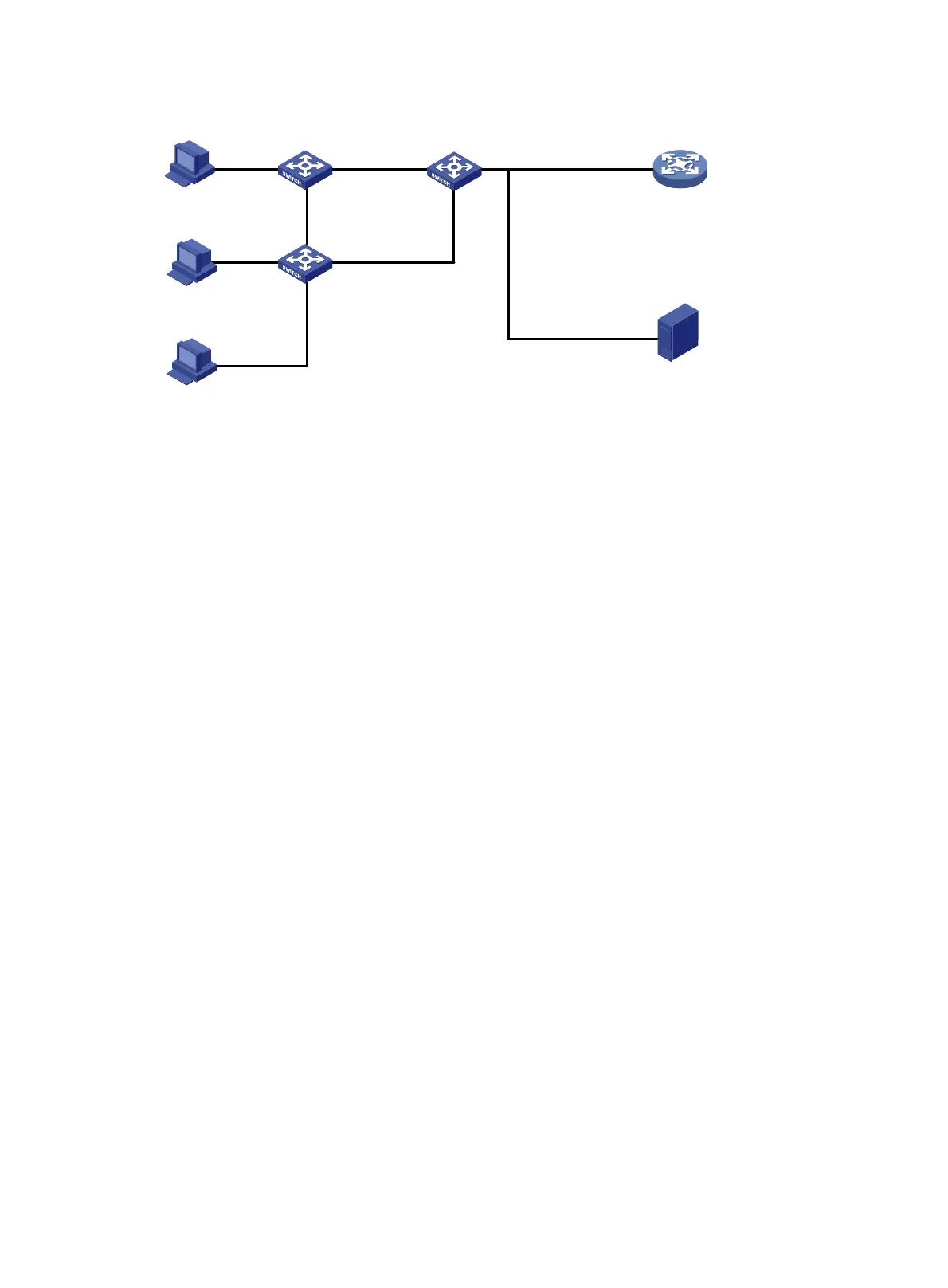

Figure 119 Network diagram
Configuration procedure
1. Configure the IP addresses of the hosts and Gateway as shown in Figure 119.
2. Configure Switch A:
# Enable STP globally to make sure STP is enabled on interfaces.
[SwitchA] stp global enable
# Configure manual-mode MFF on VLAN 100.
[SwitchA] vlan 100
[SwitchA-vlan100] mac-forced-forwarding default-gateway 10.1.1.100
# Specify the IP address of the server.
[SwitchA-vlan100] mac-forced-forwarding server 10.1.1.200
# Enable ARP snooping on VLAN 100.
[SwitchA-vlan100] arp snooping enable
[SwitchA-vlan100] quit
# Configure Ten-GigabitEthernet 1/0/2 and Ten-GigabitEthernet 1/0/3 as network ports.
[SwitchA] interface ten-gigabitethernet 1/0/2
[SwitchA-Ten-GigabitEthernet1/0/2] mac-forced-forwarding network-port
[SwitchA-Ten-GigabitEthernet1/0/2] quit
[SwitchA] interface ten-gigabitethernet 1/0/3
[SwitchA-Ten-GigabitEthernet1/0/3] mac-forced-forwarding network-port
3. Configure Switch B:
# Enable STP globally to make sure STP is enabled on interfaces.
[SwitchB] stp global enable
# Configure manual-mode MFF on VLAN 100.
[SwitchB] vlan 100
[SwitchB-vlan100] mac-forced-forwarding default-gateway 10.1.1.100
# Specify the IP address of the server.
[SwitchB-vlan100] mac-forced-forwarding server 10.1.1.200
# Enable ARP snooping on VLAN 100.
[SwitchB-vlan100] arp snooping enable
[SwitchB-vlan100] quit
Switch A
Switch C Gateway
Switch B
XGE1/0/5
XGE1/0/6
XGE1/0/3
XGE1/0/1 XGE1/0/2
XGE1/0/10
XGE1/0/8 XGE1/0/9
Server
XGE1/0/7
XGE1/0/4
Host C
10.1.1.3/24
Host B
10.1.1.2/24
Host A
10.1.1.1/24
10.1.1.100/24
10.1.1.200/24

HP FlexFabric 5700 series Specifications

General

Layer Support	L2/L3
Routing Protocol	OSPF, BGP, RIP, IS-IS, Static Routing
Remote Management Protocol	SNMP, CLI, Web
Features	VXLAN
Compliant Standards	IEEE 802.1D, 802.1Q, 802.1w, 802.1s, 802.3ad
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
VLANs	4K
