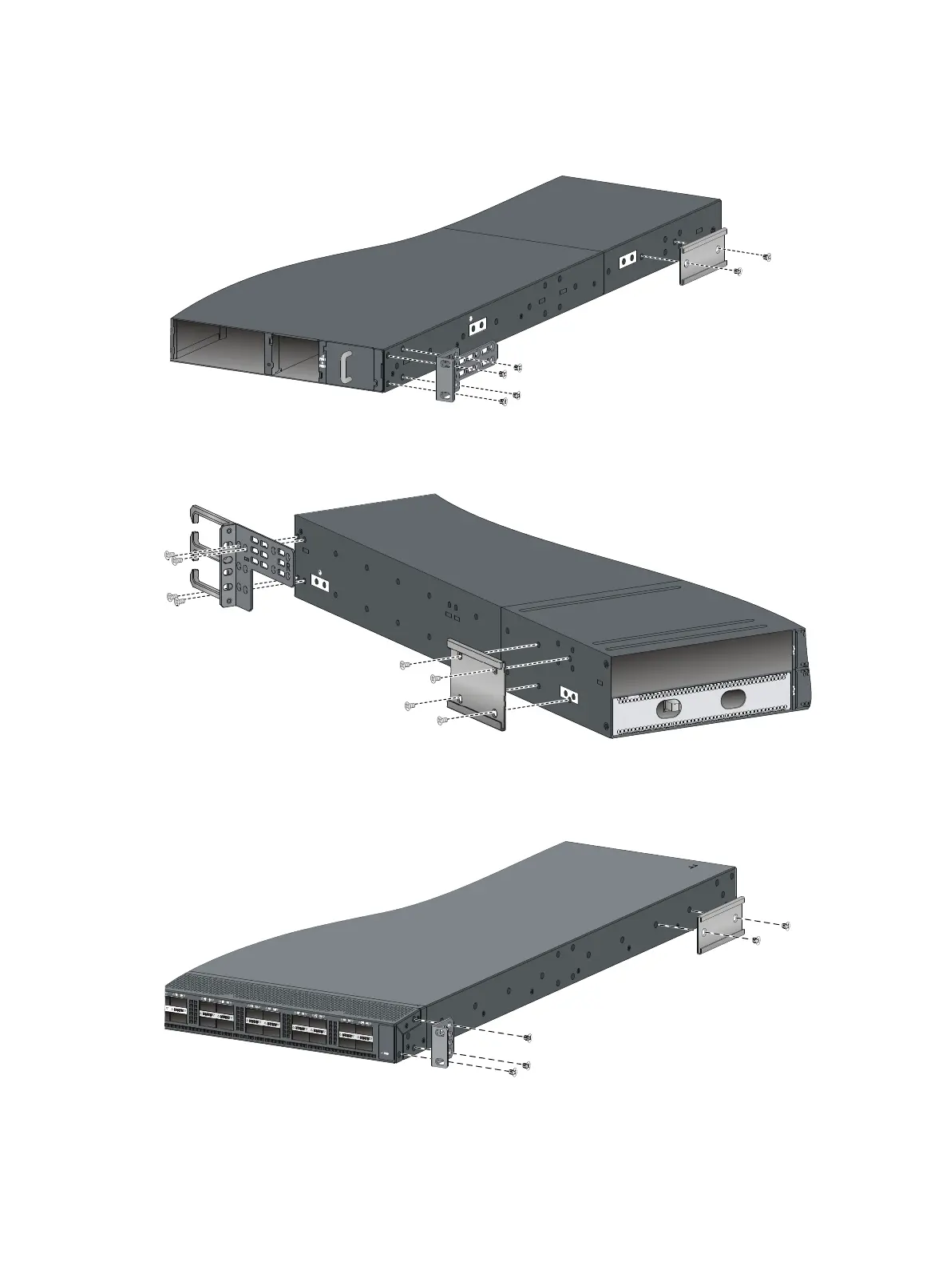

Figure 11 Attaching the mounting brackets and chassis rails to the HPE
5930-2Slot+2QSFP+/HPE 5930-2Slot+2QSFP+ TAA switch (power supply-side mounting
position for the mounting brackets)
Figure 12 Attaching the mounting brackets and chassis rails to the HPE 5930-4Slot/HPE
5930-4Slot TAA switch (power supply-side mounting position for the mounting brackets)
Figure 13 Attaching the mounting brackets and chassis rails to the HPE 5930-32 QSFP+/HPE
5930-32 QSFP+ TAA switch (network port-side mounting position for the mounting brackets)
