14

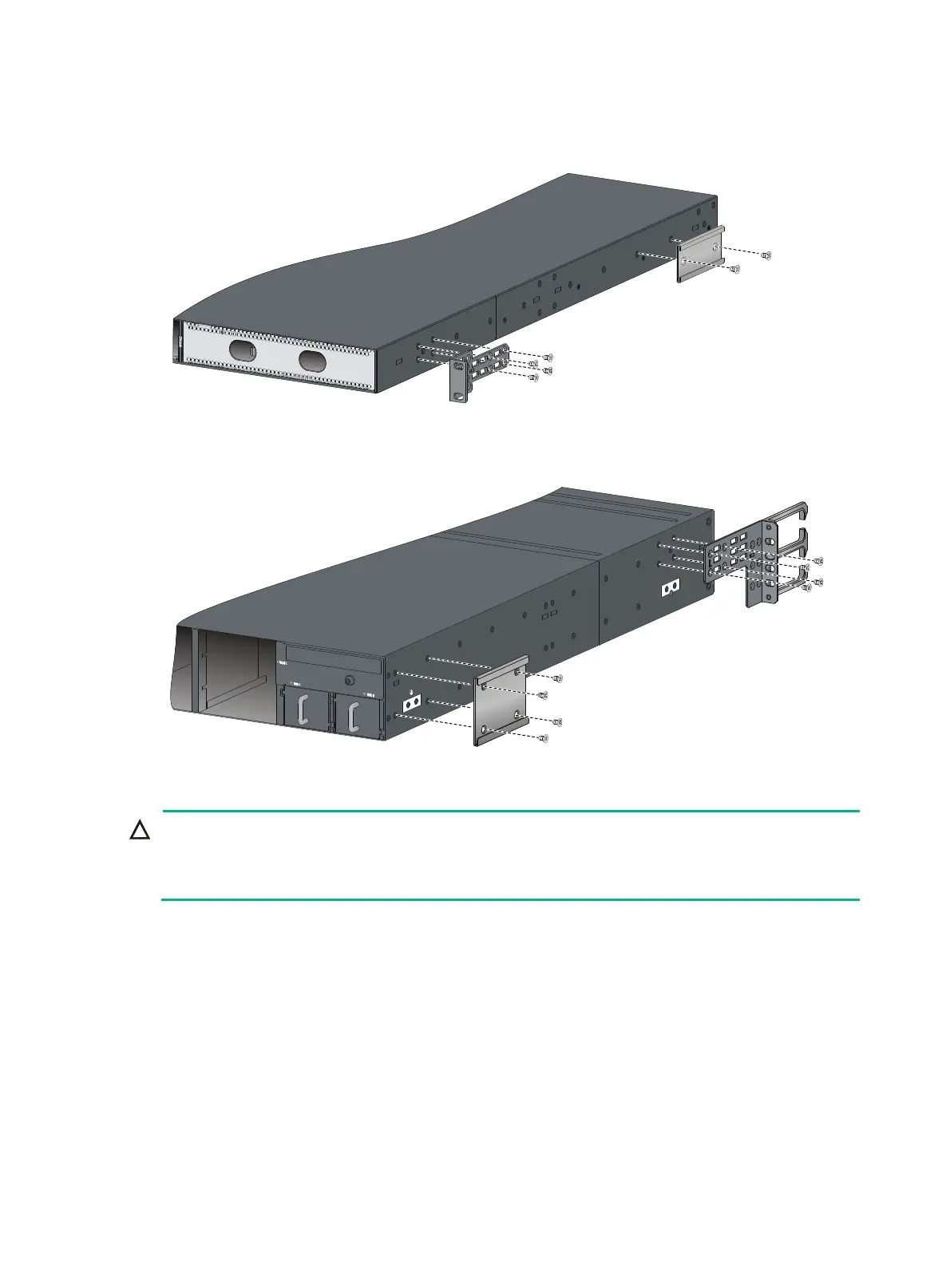

Figure 14 Attaching the mounting brackets and chassis rails to the HPE
5930-2Slot+2QSFP+/HPE 5930-2Slot+2QSFP+ TAA switch (network port-side mounting
position for the mounting brackets)
Figure 15 Attaching the mounting brackets and chassis rails to the HPE 5930-4Slot/HPE
5930-4Slot TAA switch (network port-side mounting position for the mounting brackets)
Connecting the grounding cable to the chassis
CAUTION:
Select grounding points as required. The primary grounding point and auxiliary grounding point 1 are
located on the left side panel. If you use one of these grounding points, you must connect the
grounding cable to the grounding point before you mount the switch in the rack.
As a best practice, connect the grounding cable to the primary grounding point or auxiliary grounding
point 1. The grounding cable and grounding screw that come with the switch are suitable only for
these two grounding points.
To use auxiliary grounding point 2, prepare a grounding cable yourself.
This section uses the primary grounding point on the HPE 5930-32 QSFP+/HPE 5930-32 QSFP+
TAA switch as an example.
To connect the grounding cable to a grounding point:
1. Choose a grounding point.
2. Unpack the grounding cable and grounding screws.
You can use the cable and screws shipped with the switch only for connecting to the primary
grounding point or auxiliary grounding point 1.
