47

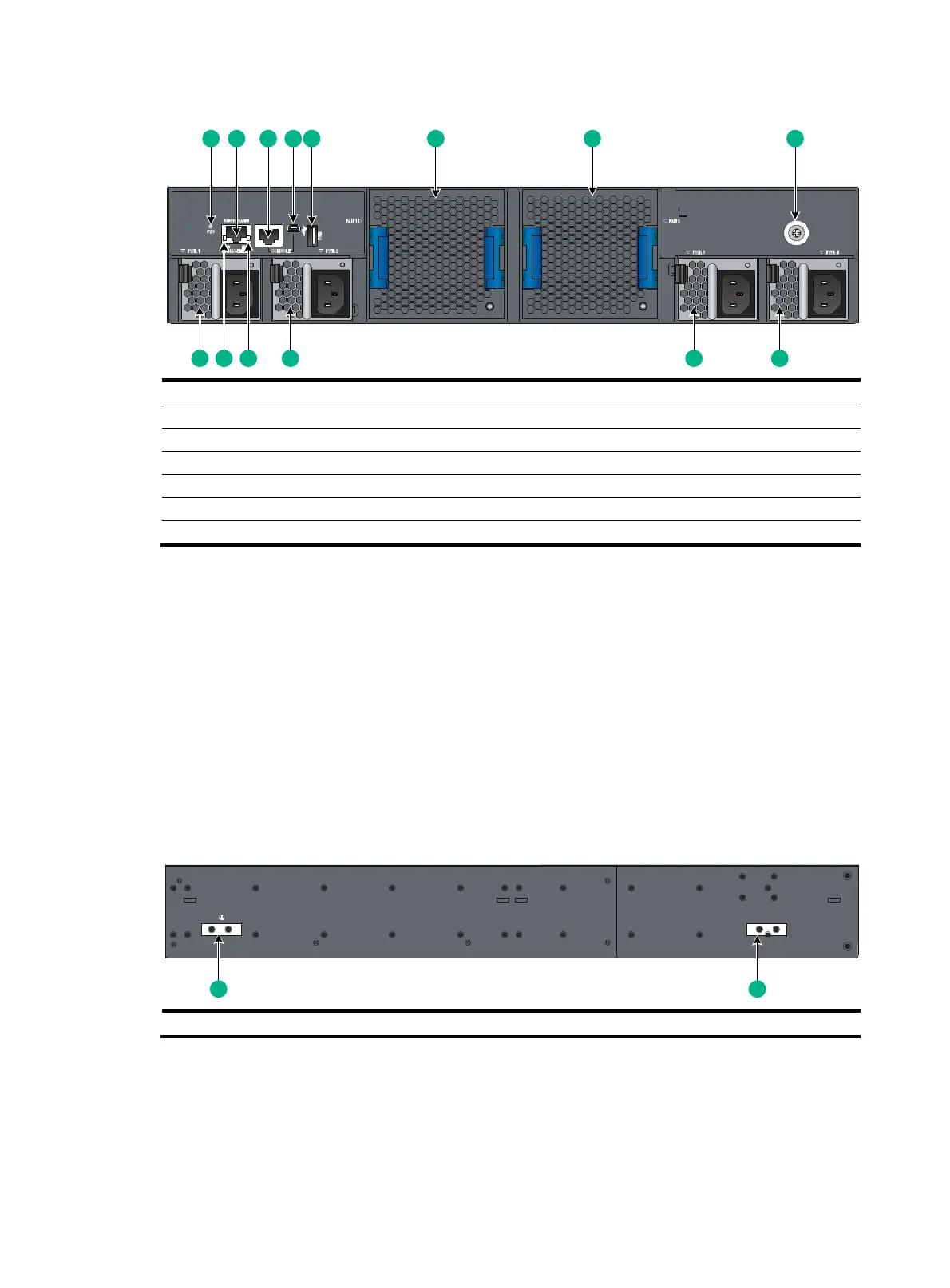

Figure 57 Rear panel
(1) System status LED (SYS) (2) Management Ethernet port
(3) Serial console port (4) USB mini console port
(5) USB port (6) Fan tray slot 1
(7) Fan tray slot 2 (8) Grounding screw (auxiliary grounding point 2)
(9) Power supply slot 4 (10) Power supply slot 3
(11) Power supply slot 2 (12) LINK LED for the management Ethernet port
(13) ACT LED for the management Ethernet port (14) Power supply slot 1
The HPE 5930-4Slot/HPE 5930-4Slot TAA switch comes with a filler panel in all interface module
slots except slot 1. You can install one to four interface modules for the switch as needed. In Figure
56, the LSWM18Q
C interface modules are installed in the interface module slots. For more
information about installing and removing interface modules, see "Installing/Removing an interface
module."
The HPE 5930-4Slot/HPE 5930-4Slot TAA switch comes with the four power supply slot empty and
three filler panels as accessories. You can install two to four power supplies for the switch as needed.
In Figure 57,
two 650W AC power supplies are installed in the power supply slots. For more
information about installing and removing power supplies, "Installing/removing a power supply."
The HPE 5930-4Slot/HPE 5930-4Slot TAA switch comes with the two fan tray slots empty. You must
install two fan trays of the same model for the switch. In Figure 57,
two LSWM1HFANSC fan trays
are installed in the fan tray slots. For more information about installing and removing fan trays,
"Installing/removing a fan tray."
Figure 58
Left side panel
(1) Primary grounding point (2) Auxiliary grounding point 1
41 2 3 5 6 7 8
91011121314
1 2
