Rack options 21
2.

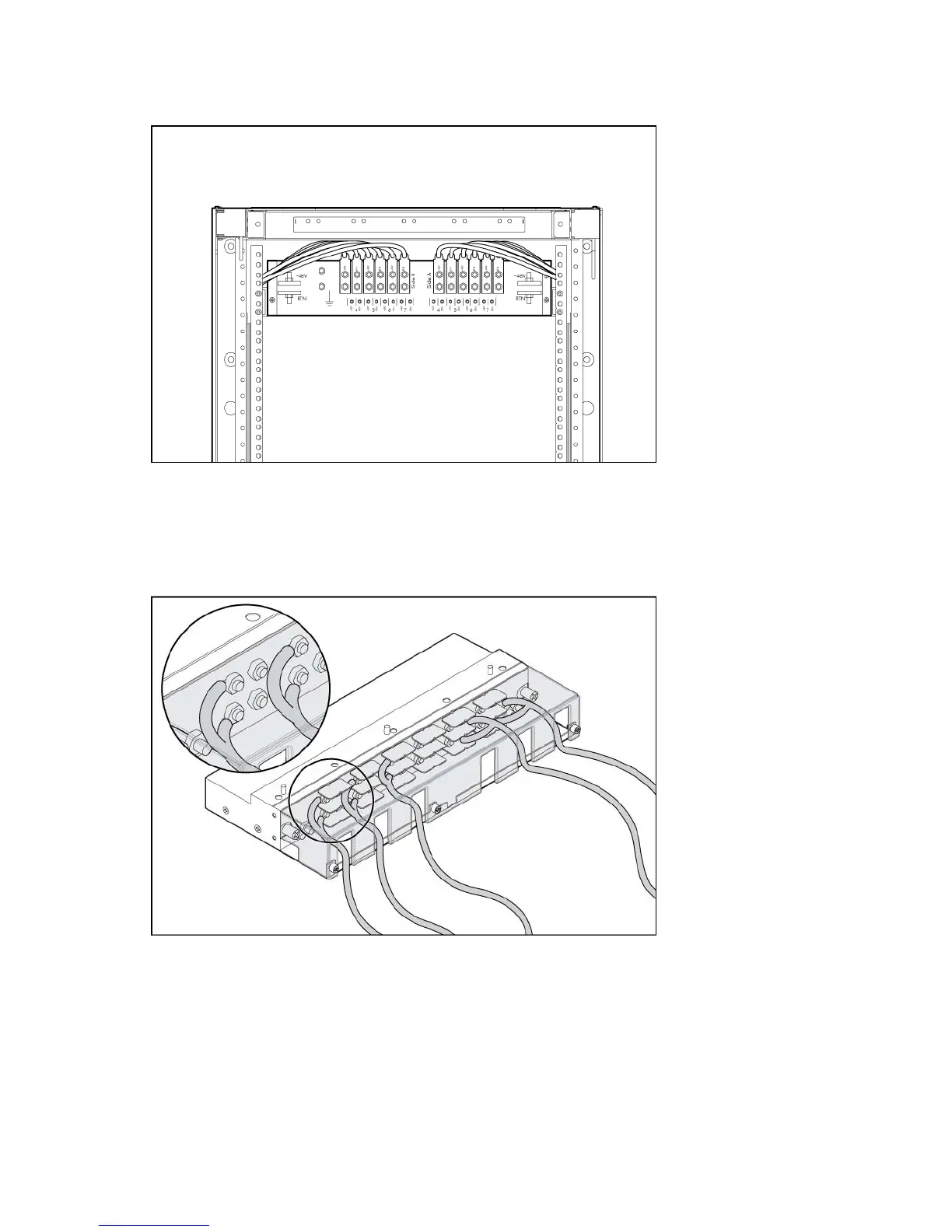

Referring to the DC cable connection configuration table, connect a black return cable to the right
side of the A1 position with a 90° lug.
To connect cables from the breaker panel to the DC input module:
1. Referring to the DC cable connection configuration table, connect the red source cable from the
breaker panel to the top portion of the DC input module at a 45° angle with a 45° lug.
2. Referring to the DC cable connection configuration table, connect the black return cable from the
breaker panel to the bottom portion of the DC input module at a 45° angle with a 45° lug.
3. Connect the remaining cables according to the DC cable connection configuration table.
4. Fasten the cables to the side of the rack with Velcro hook-and-loop fasteners.
