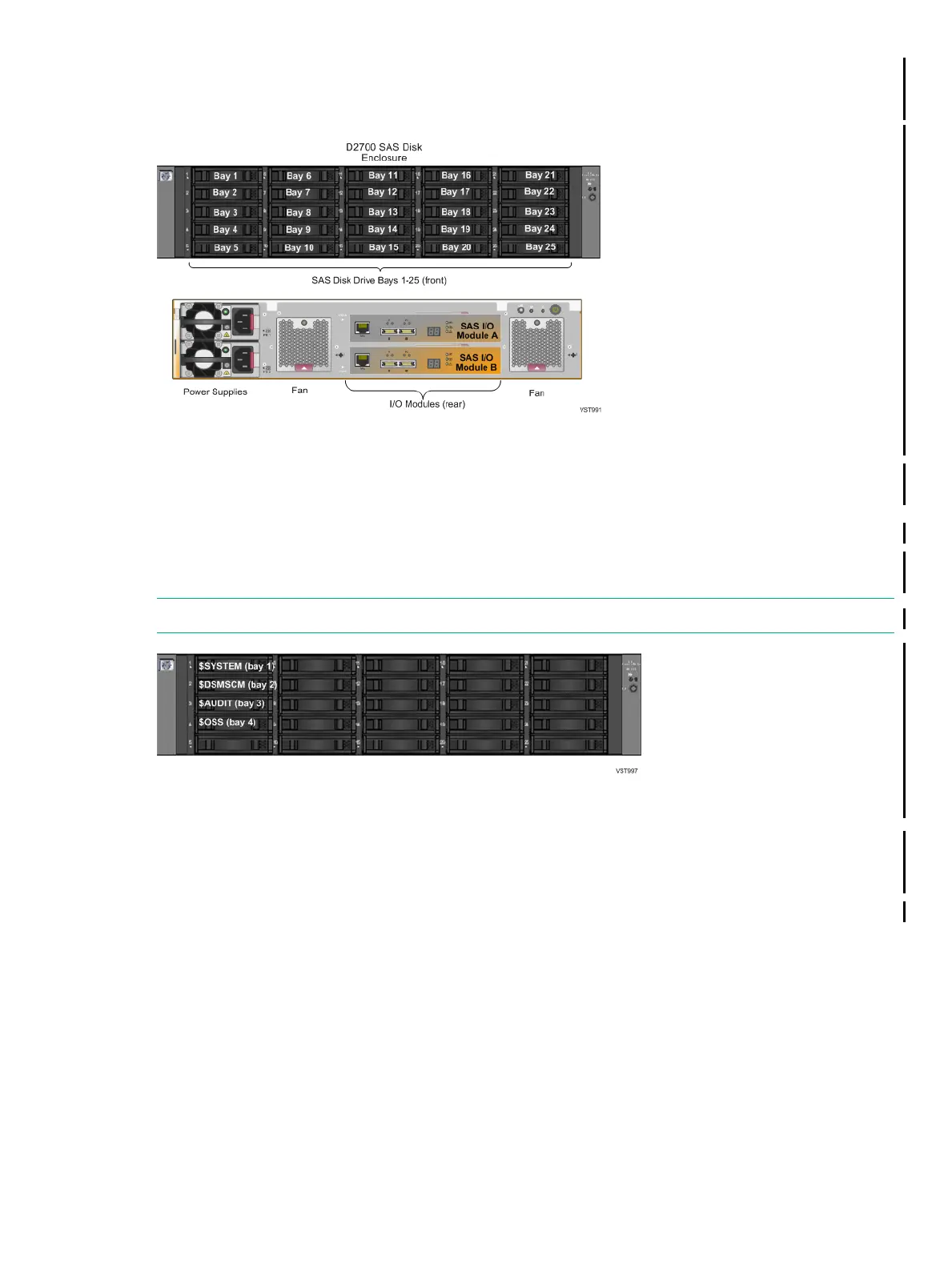

The D2700 SAS disk enclosure is supported by G6 and Gen8 Storage CLIMs. The D2700 SAS
disk enclosure holds 25 2.5” SAS universal carrier HDDs and SSDs with redundant power and
cooling.
More information
HP D2600/D2700 Disk Enclosure User Guide
HP D3600/D3700 Disk Enclosure User Guide
Factory-Default Disk Volume Locations for SAS Disk Devices
This illustration shows where the factory-default locations for the primary and mirror system disk
volumes reside in separate disk enclosures:
NOTE: If you have ordered $OSS, you need a 4 pair disk configuration.
Configuration Restrictions for Storage CLIMs
• The maximum number of logical unit numbers (LUNs) for each CLIM, including SAS disks,
ESS and tapes is 512. Each primary, backup, mirror and mirror backup path is counted in
this maximum.
• SAS disk enclosures connected to G6, Gen8, and Gen9 CLIMs cannot be daisy-chained.
NS2300 Standard and Optional Hardware 17
